Keyless Access Control Unit - Diagnostics
>>
Troubleshooting
>>
DTC B1645(Keyless Access Control Unit)
>>
Inspection Outline

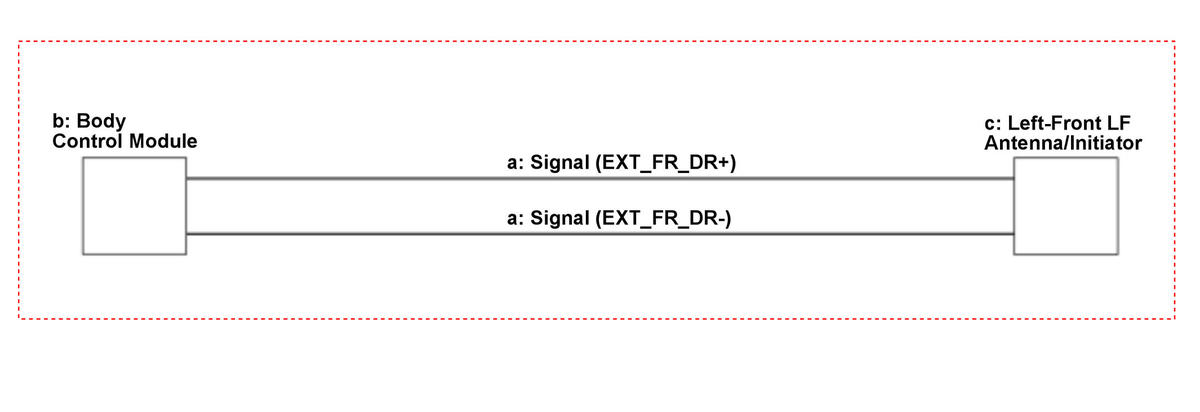

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
EXT_FR_DR+, EXT_FR_DR- Shorted Wire Inspection
b
Body Control Module
Body Control Module Inspection
c
Left-Front LF Antenna/Initiator
Left-Front LF Antenna/Initiator Inspection
