Removal and Installation

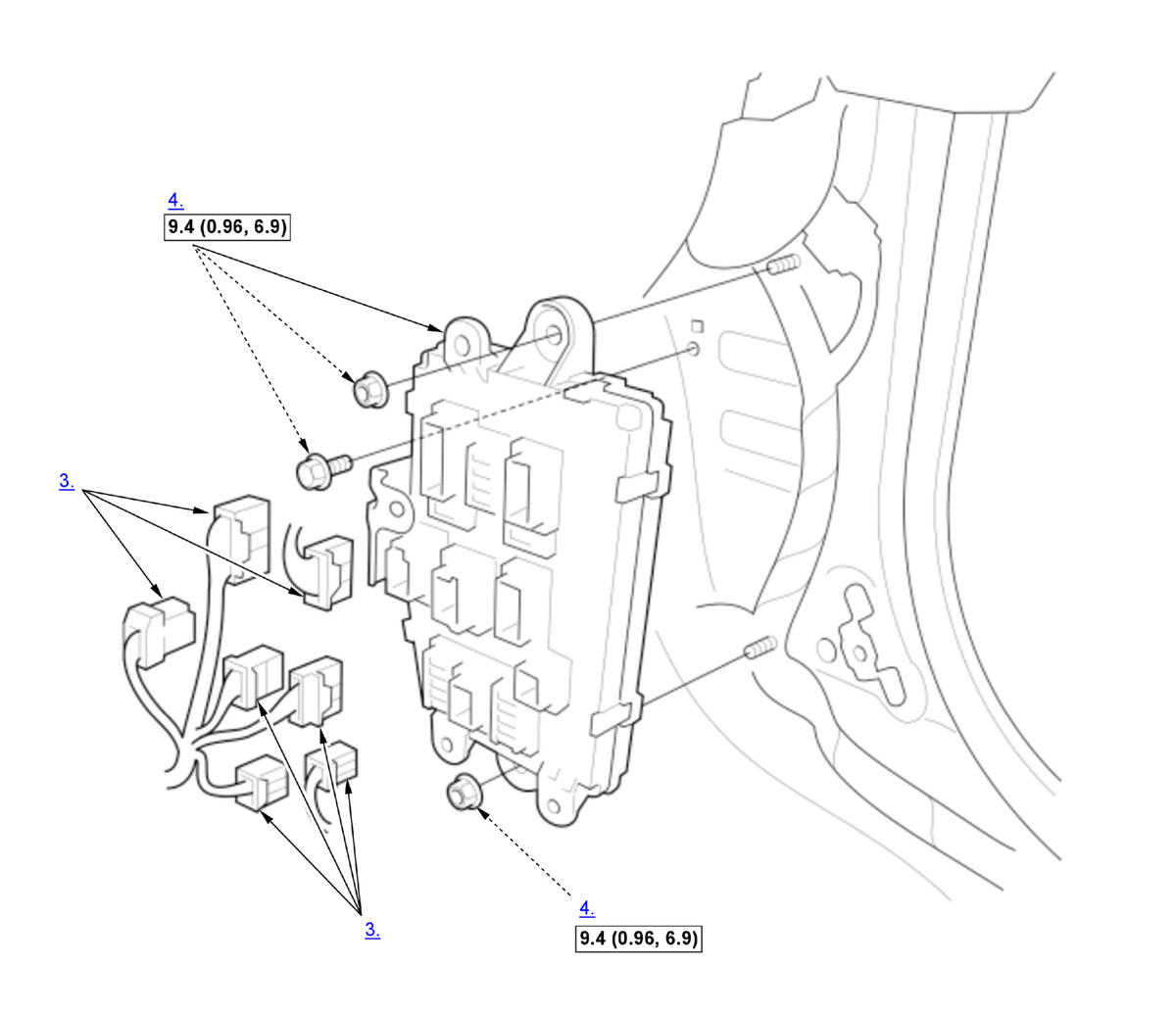

GHH442336Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. 12 Volt Battery (Negative) Terminal - Disconnect
  2. Kick Panel (Passenger's Side) - Remove
  3. Connectors - Disconnect
  4. Power Distribution Module - Remove
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
