Audio Remote Switch Test: Test
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Honda HR-V, 2021 Honda HR-V, 2020 Honda HR-V, 2019 Honda HR-V, and 2018 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
- Driver's Airbag - Remove
- Lower Garnish Assembly - Remove
- Audio Remote Switch - Test

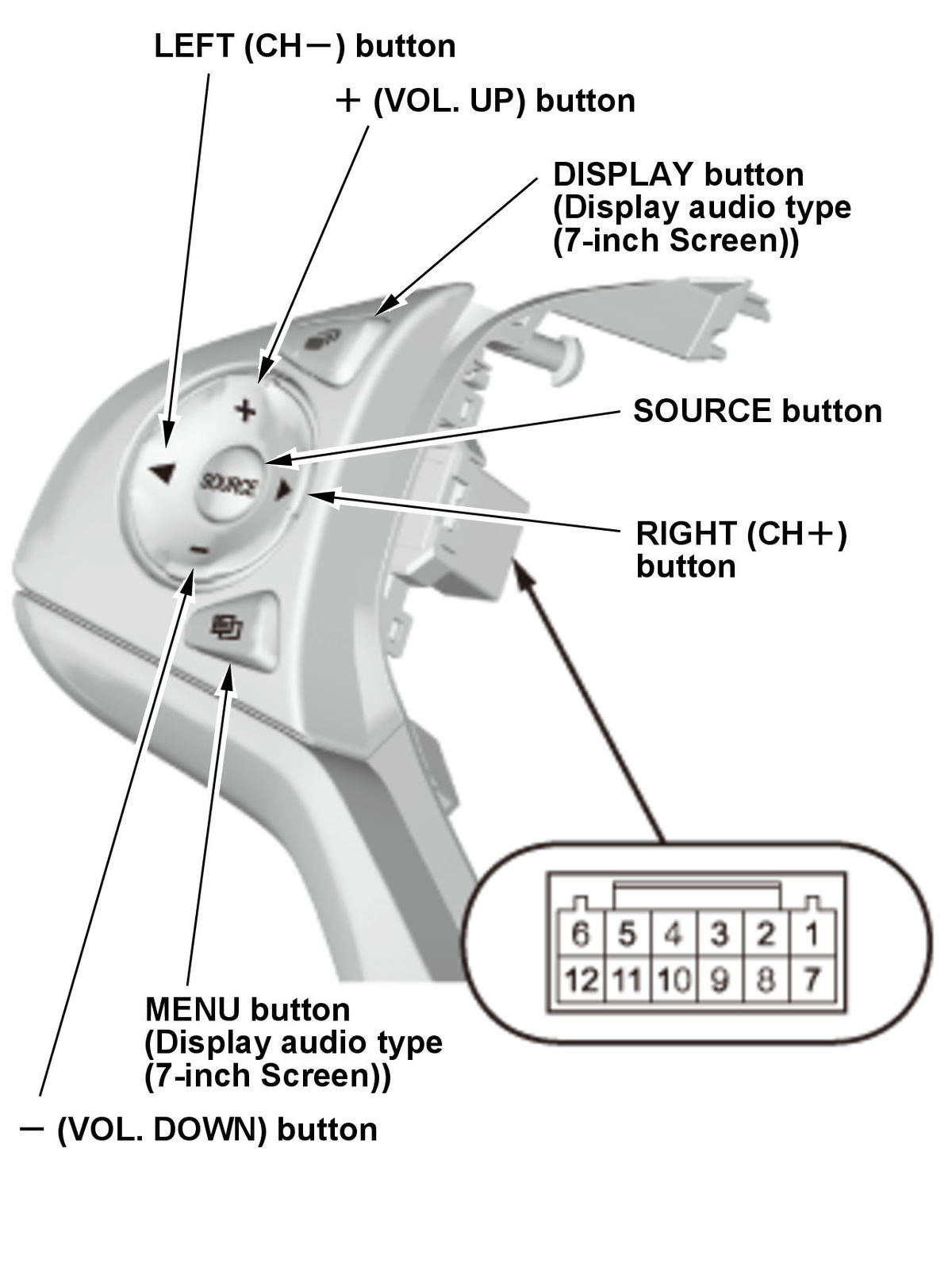

1. Measure the resistance between the terminals No. 2 and No. 5 in each switch position according to the table. 2. Display audio type (7-inch screen): Measure the resistance between the terminals No. 3 and No. 5 in each switch position according to the table.
Display Audio Type (7-inch Screen)
3. If the resistance is not as specified, replace the audio remote switch .
Button held down Resistance MENU About 33 ohms DISPLAY About 363 ohms Button held down Resistance No button pressed About 10 kΩ SOURCE About 3.7 kΩ RIGHT (CH +) About 1.7 kΩ LEFT (CH -) About 775 ohms + (VOL. UP) About 357 ohms - (VOL. DOWN) About 99 ohms - All Removed Parts - Install
1. Install the parts in the reverse order of removal.
