Inspection Outline

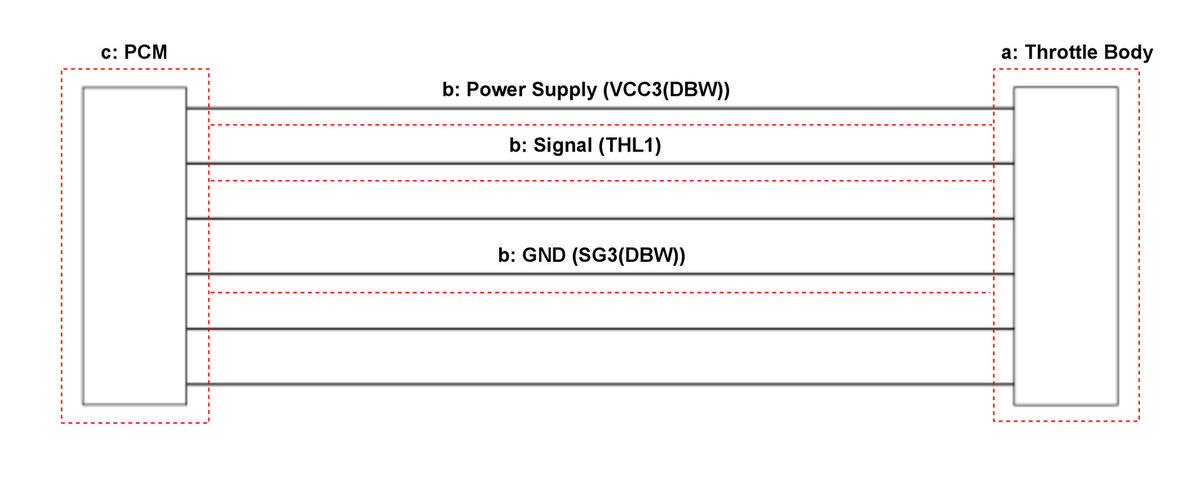

- The components to be tested are indicated by a dotted line.
NOTE:
For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.
- Confirm the HDS [TP Sensor A].
-
- -
Less than 0.38 V:
- -
More than 4.50 V :
- -
| Inspection Items | Work Items | |||
|---|---|---|---|---|
| a | Throttle Body | TP Sensor Inspection | o | o |
| b | External Circuit | VCC3(DBW), THL1, SG3(DBW) Circuit Inspection | o | o |
| c | PCM | PCM Inspection | o | o |
