DTC P0115: Inspection

ECT Sensor 1 Inspection

Test Procedure (Step 1)

• Preparation
  1. -

     ECT sensor 1 connector (2P): disconnected

• Procedure
  • Turn the vehicle to the ON mode.
  • Confirm the HDS [ECT Sensor 1 Voltage].

• Normal Conditions
  1. -

     HDS [ECT Sensor 1 Voltage] value is more than 0.14 V  .

Test Procedure (Step 2)

• Preparation
  1. -

     ECT sensor 1 connector (2P): disconnected

• Procedure
  • Jump the ECT sensor 1 connector (2P) terminals No. 1 and No. 2 with a jumper wire.
  • Turn the vehicle to the ON mode.
  • Confirm the HDS [ECT Sensor 1 Voltage].

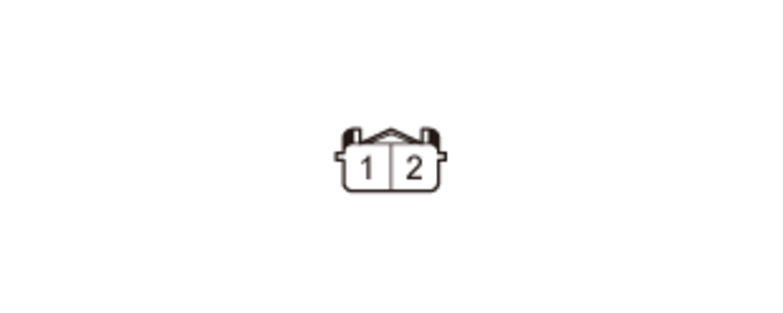

	(Disconnected) ECT sensor 1 connector (2P) female terminals

Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
  1. -

     HDS [ECT Sensor 1 Voltage] value is less than 4.99 V  .

Results

• If it is normal, there is a problem with ECT sensor 1.
• If it is abnormal, there is a problem with other related components.

TW, SG2 Circuit Inspection

Test Procedure

• Preparation
  1. -

     ECT sensor 1 connector (2P): disconnected

  2. -

     PCM connector E (80P): disconnected

• Procedure
  1. -

     Perform the inspection according to the following chart.

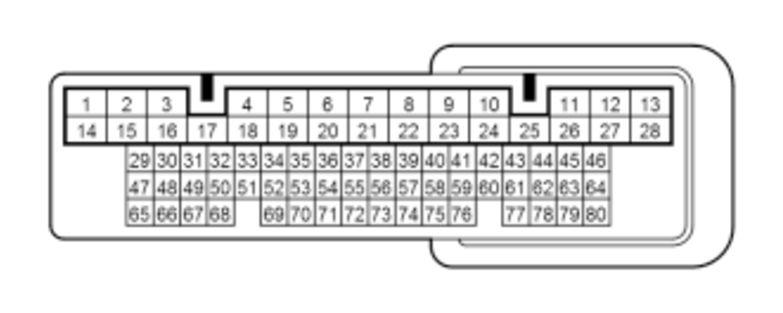

			(Disconnected) ECT sensor 1 connector (2P) female terminals	(Disconnected) PCM connector E (80P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	TW open wire inspection	OFF			There is less than 1 Ohm
	SG2 open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	TW shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
