Power Windows System Description

Basic Control/Function

• Manual Up/Down Function

  The 1-step operation of the power window switch moves the window up or down. This is available while the vehicle in the ON mode or the vehicle OFF (LOCK) mode operation.

• Auto Up/Down Function

  The 2-step operation of the power window switch moves the window up or down. This is available while the vehicle in the ON mode or the vehicle OFF (LOCK) mode operation.

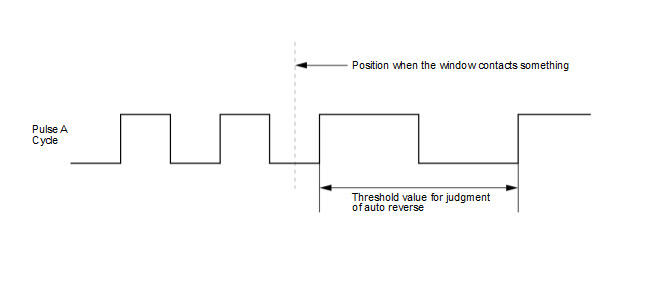

Auto Reverse Power Window Function

When an object is detected during the auto up operation, the window stops closing and reverses about 70 mm (2.76 in). If the window is less than halfway opened (about 220 mm (8.66 in)), it will reverse to the half open position (about 220 mm (8.66 in)). In manual operation, this function is active only during the vehicle OFF operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

Courtesy of HONDA, U.S.A., INC.

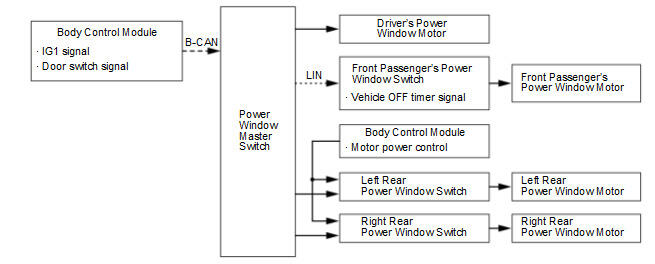

Vehicle OFF Operation

For about 10 minutes after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches is available.

Courtesy of HONDA, U.S.A., INC.

Vehicle OFF Operation Start Condition		Vehicle ON mode -> OFF (LOCK) mode Driver's door switch OFF (Door close) Front Passenger's door switch OFF (Door close)
Vehicle OFF Operation Cancel Condition	Timer	Vehicle ON mode -> OFF (LOCK) mode and past 10 minutes
	Door	Driver's door switch ON (Door open) Front Passenger's door switch ON (Door open)

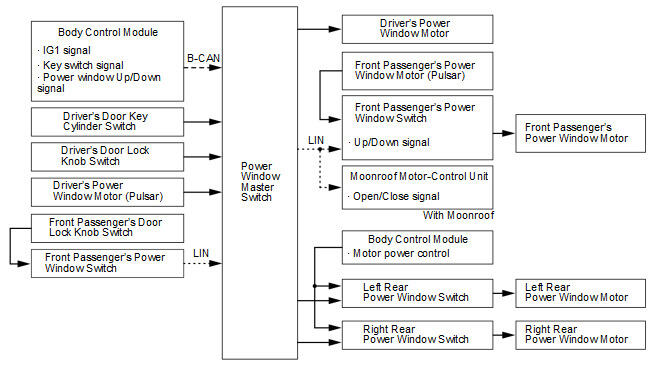

Keyless/Key Cylinder Operation

By pressing and holding the LOCK or UNLOCK button of the remote a second time, the windows and sunroof close or open. The windows and sunroof stop moving when the LOCK or UNLOCK button is released.

With the key inserted in the driver's door key cylinder, turn the key a second time holding it (lock to close). The windows and sunroof stop moving when the key is released.

Courtesy of HONDA, U.S.A., INC.

Keyless Operation	Open	Possible
	Close	Impossible
Key Cylinder Operation	Open	Possible
	Close	Possible

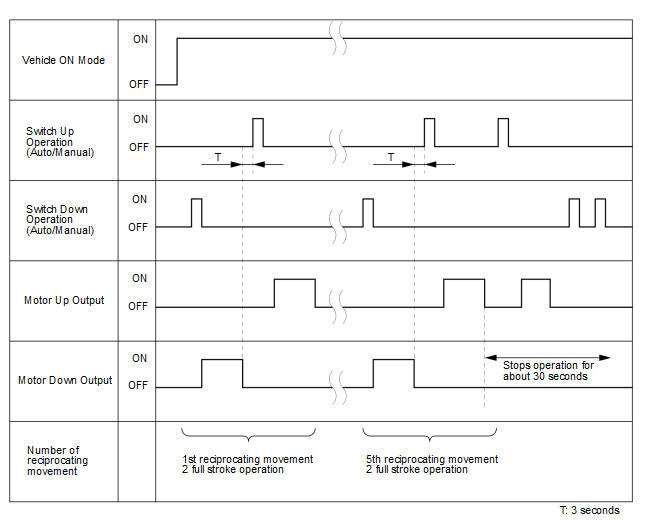

Continuous Operation Stop Function

With the vehicle in the ON mode, when reciprocating movement "upper end -> lower end -> upper end" is repeated 5 times by the AUTO or MANUAL operation of each seat*, the DOWN operation is prohibited while about 30 seconds lapse.

*: With automatic power window

Courtesy of HONDA, U.S.A., INC.

Fail-safe Function

When a failure occurs in the inputs of the motor pulses and power window switches, the fail-safe function stops the control of each function.
