Starter System Circuit Troubleshooting: Inspection

Ring Gear Visual Inspection

Test Procedure

Preparation
1. -
  Torque converter cover: removed

Procedure
1. -
  Check damaged or worn ring gear of the torque converter.

Normal Conditions
1. -
  Not damaged or worn.

Results

If it is abnormal, there is a problem with the torque converter.

Drive Gear Visual Inspection

Test Procedure

Preparation
1. -
  Starter: removed

Procedure
1. -
  Check damaged or worn drive gear of the starter.

Normal Conditions
1. -
  Not damaged or worn.

Results

If it is abnormal, there is a problem with the starter.

Starter Functional Inspection

NOTE:

When checking the current draw, you can use the GR8 battery diagnostic station with AST module (12 volt). For setup, customization, and other available features, refer to the GR8 user's manual.

Preconditions

NOTE:

This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

The starter is operated when trying to start the engine.
Drive gear of the starter is normal.
Ring gear of the torque converter is normal.
12 volt battery is normal

Test Procedure

Preparation
1. -
  The HDS [ALL INJECTORS STOP] is selected
2. -
  Shift to P position/mode

Procedure

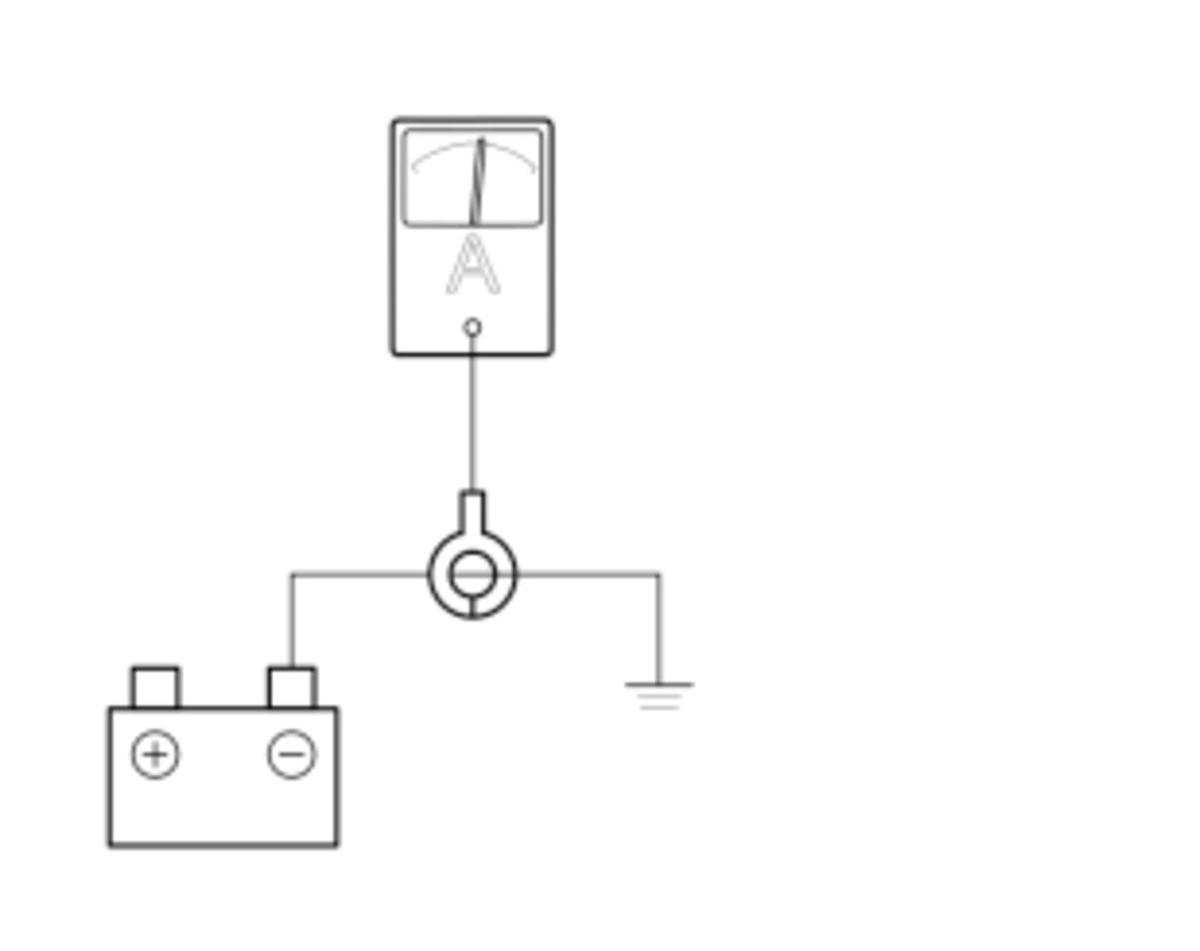

- Connect an ammeter (0 - 400 A) as shown.
- Press the brake pedal.
- Turn the vehicle to the START mode, and check the current during cranking.

Courtesy of HONDA, U.S.A., INC.

Normal Conditions
1. -
  The cranking current range is between 80 A and 380 A .

Results

If it is abnormal, there is a problem with the starter.
NOTE:
1. -
  If the result shows there is a problem with the starter, do the starter performance test .
2. -
  If the current value is too large even though the starter hardly operates, the engine rotational load may be too large (engine seizure, etc.).

+B_BATTERY Circuit Inspection

Test Procedure

Preparation
1. -

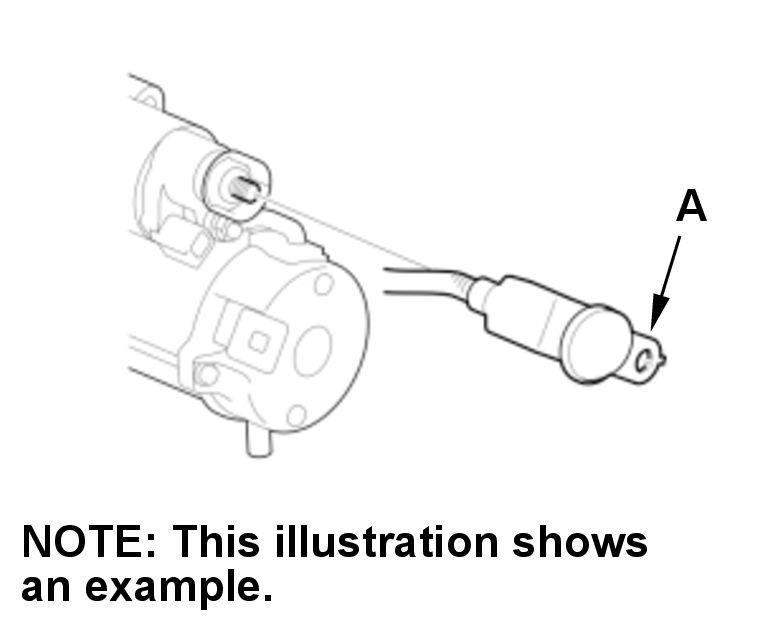

  Starter B terminal: disconnected
Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected) Starter B terminal (A)
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
+B_BATTERY circuit inspection	OFF		12 V battery voltage [circuit type 1]

Results

If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

ST_MG_SW, GND [ST_MG_SW] Circuit Inspection

Test Procedure

Preparation
1. -

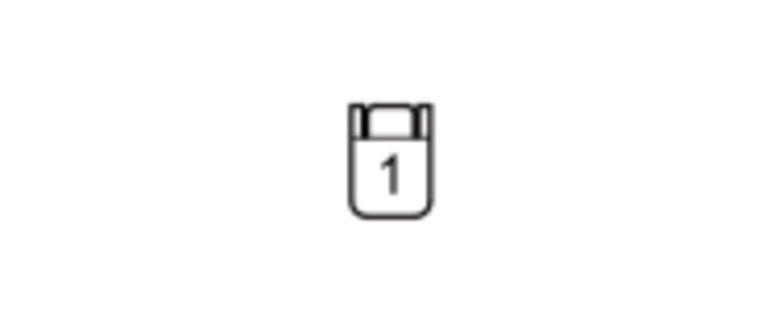

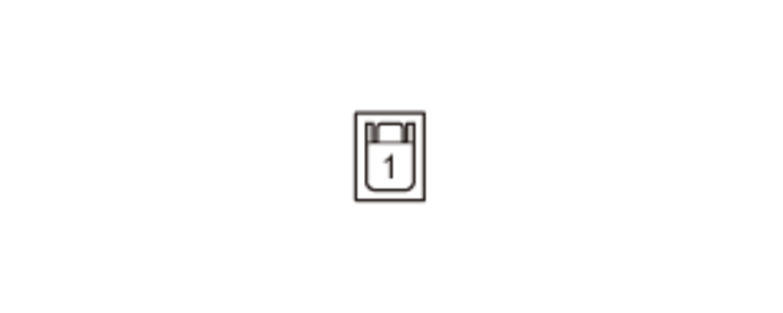

  Starter S terminal connector (1P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected) Starter S terminal connector (1P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
GND [ST_MG_SW] open wire inspection	OFF		There is less than 1 Ohm (inspection circuit includes a diode)
Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
ST_MG_SW shorted to ground inspection	OFF		There is more than 1 MOhm (inspection circuit includes a diode)

Results

If it is abnormal, there is a problem in the circuit.

+B_STOP Circuit Inspection

Test Procedure

Preparation
1. -

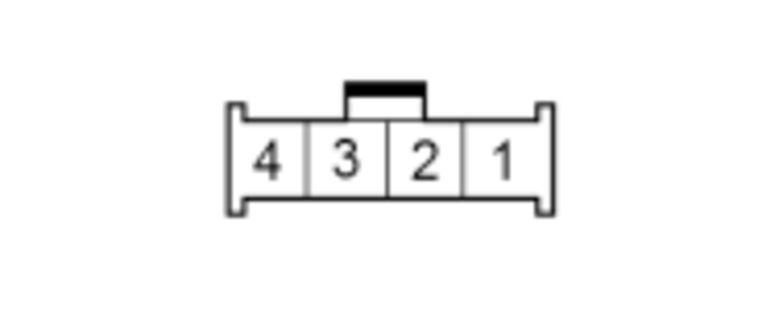

  Brake pedal position switch connector (4P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected) Brake pedal position switch connector (4P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
+B_STOP circuit inspection	OFF		12 V battery voltage [circuit type 1]

Results

If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

STOP_SW Open Wire Inspection

Test Procedure

Preparation
1. -
  Brake pedal position switch connector (4P): disconnected
2. -

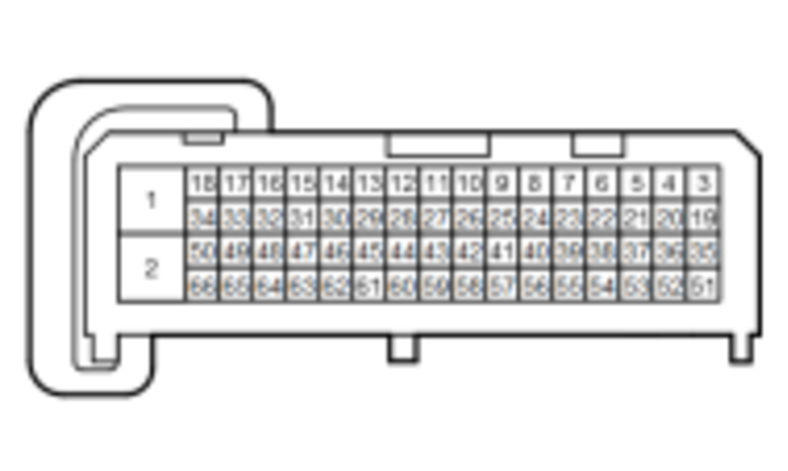

  Body control module connector A (66P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


			(Disconnected) Brake pedal position switch connector (4P) female terminals	(Disconnected) Body control module connector A (66P) female terminals

	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
STOP_SW open wire inspection	OFF			There is less than 1 Ohm

Results

If it is abnormal, there is a problem in the circuit.

STS Circuit Inspection

NOTE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Preparation
1. -

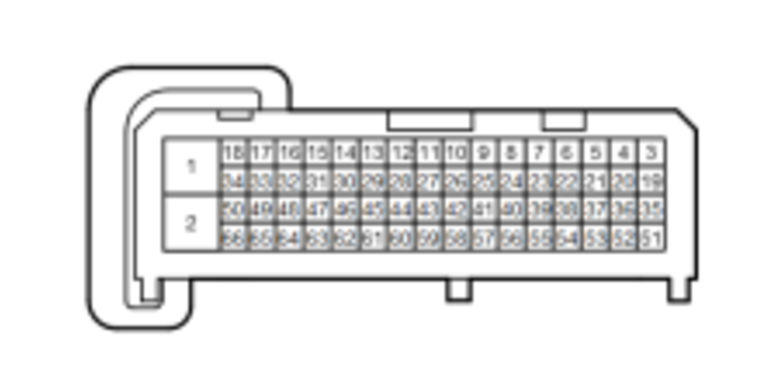

  Body control module connector C (66P): disconnected
2. -

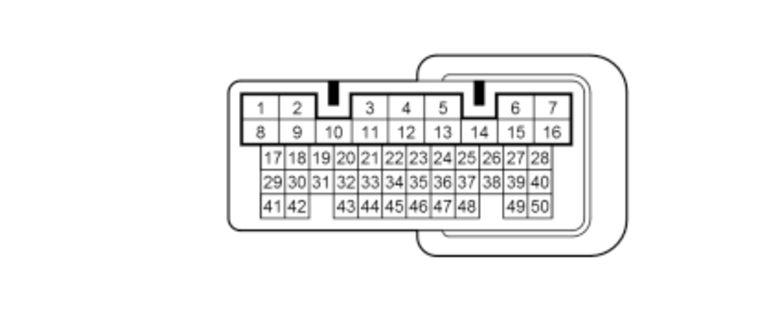

  PCM connector A (50P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


			(Disconnected) Body control module connector C (66P) female terminals	(Disconnected) PCM connector A (50P) female terminals

	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
STS open wire inspection	OFF			There is less than 1 Ohm
Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
STS shorted to ground inspection	OFF			There is more than 1 MOhm

Results

If it is abnormal, there is a problem in the circuit.

+B_ST_MAGNETIC_SW Inspection

Test Procedure

Preparation
1. -

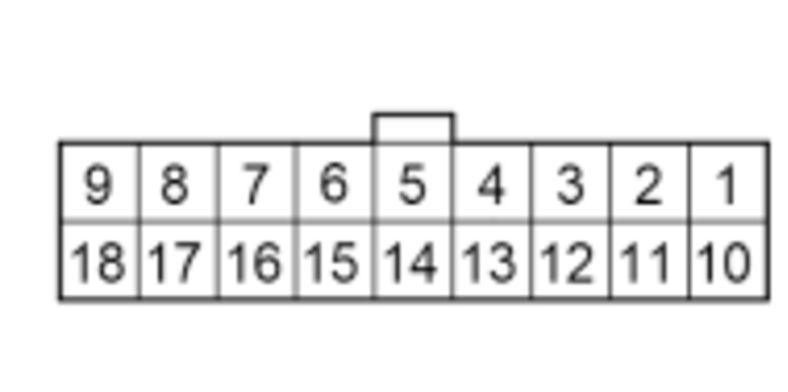

  Relay circuit board connector A (18P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected)Relay circuit board connector A (18P)female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
+B_ST_MAGNETIC_SW circuit inspection	OFF		12 V battery voltage [circuit type 1]

Results

If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

ST_RLY_1_TO_2 Circuit Inspection

NOTE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Preparation
1. -

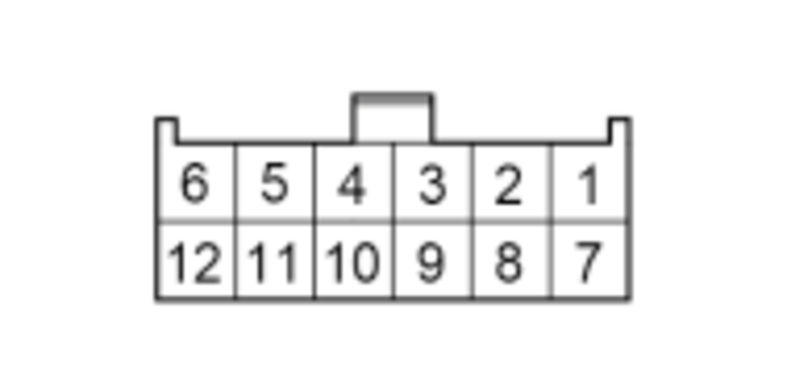

  Relay circuit board connector B (12P): disconnected
2. -
  PCM connector A (50P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected) Relay circuit board connector B (12P) female terminals	(Disconnected) PCM connector A (50P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
ST_RLY_1_TO_2 open wire inspection	OFF			There is less than 1 Ohm
Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
ST_RLY_1_TO_2 shorted to ground inspection	OFF			There is more than 1 MOhm

Results

If it is abnormal, there is a problem in the circuit.

ST_CUT_RLY1_CL-, ST_CUT_RLY2_CL- Circuit Inspection

NOTE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Preparation
1. -
  Relay circuit board connector B (12P): disconnected
2. -
  PCM connector A (50P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected) Relay circuit board connector B (12P) female terminals	(Disconnected) PCM connector A (50P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
ST_CUT_RLY1_CL- open wire inspection	OFF			There is less than 1 Ohm
ST_CUT_RLY2_CL- open wire inspection	OFF			There is less than 1 Ohm
Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
ST_CUT_RLY1_CL- shorted to ground inspection	OFF			There is more than 1 MOhm
ST_CUT_RLY2_CL- shorted to ground inspection	OFF			There is more than 1 MOhm

Results

If it is abnormal, there is a problem in the circuit.

IG1_ACG Circuit Inspection

Test Procedure

Preparation
1. -
  Relay circuit board connector B (12P): disconnected
Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected) Relay circuit board connector B (12P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
IG1_ACG circuit inspection	ON		12 V battery voltage [circuit type 1]

Results

If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

PCM Inspection (Starter Switch Internal Circuit)

Preconditions

NOTE:

External circuit is normal.

Test Procedure

Preparation
1. -
  Body control module connector C (66P): disconnected

Procedure
1. -
  Perform the inspection according to the following table.


		(Disconnected) Body control module connector C (66P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
Unit internal circuit inspection	OFF		900 Ohm-1 MOhm

Results

If it is abnormal, there is a problem with the PCM.

PCM Inspection (Starter Cut Relay Internal Circuit)

NOTE:

Since there is no direct method to test the component itself, troubleshooting is performed on the related components.

Preconditions

NOTE:

12 volt battery is normal.
Body control module is normal.
Relay circuit board is normal.
External circuit is normal.

Test Procedure

Preparation
1. -
  Starter S terminal connector (1P): disconnected
2. -
  The HDS [ALL INJECTORS STOP] is selected

Procedure
1. -
  Jump the starter S terminal connector (1P) terminal No. 1 and the 12 volt battery positive terminal with a jumper wire.

(Disconnected) Starter S terminal connector (1P) male terminals

Courtesy of HONDA, U.S.A., INC.

Normal Conditions
1. -
  The engine cranks.

Results

If it is abnormal, there is a problem with other related components.
If it is normal, there is a problem with the PCM.

Body Control Module Inspection

Preconditions

NOTE:

Brake pedal position switch is normal.
External circuit is normal.
PCM (starter switch internal circuit) is normal.

Test Procedure

Preparation
1. -
  The HDS [ALL INJECTORS STOP] is selected

Procedure
- Press the brake pedal.
- Turn the vehicle to the START mode, and confirm the HDS [Starter Switch].

Normal Conditions
1. -
  The HDS [Starter Switch] changed.

Results

If it is abnormal, there is a problem with the body control module.

Engine Assembly Inspection

Test Procedure

If the other inspection item(s) indicated a normal condition, then it is determined that the remaining engine assembly is the cause.

Results

There is a problem with the engine assembly.
NOTE:
It is a mechanical problem in the engine (excessive drag).
