Keyless Access System Component Location Index

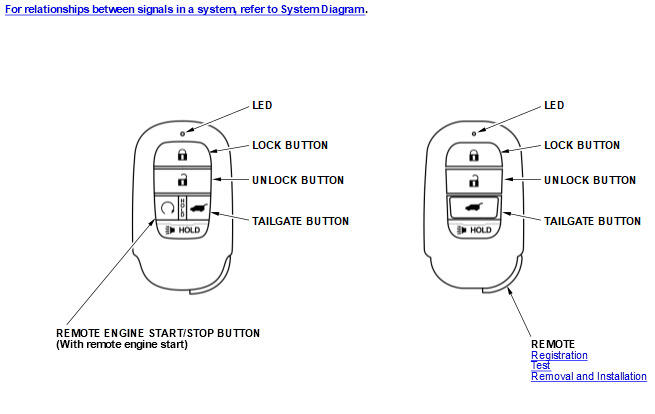

GHH542348Courtesy of HONDA, U.S.A., INC.

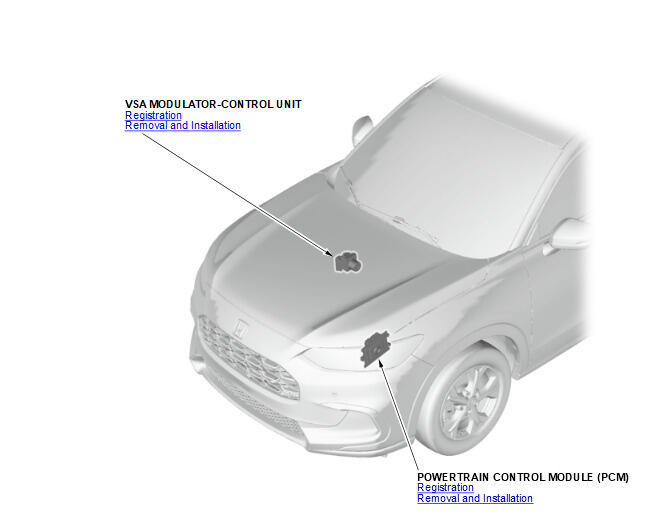

GHH542349Courtesy of HONDA, U.S.A., INC.

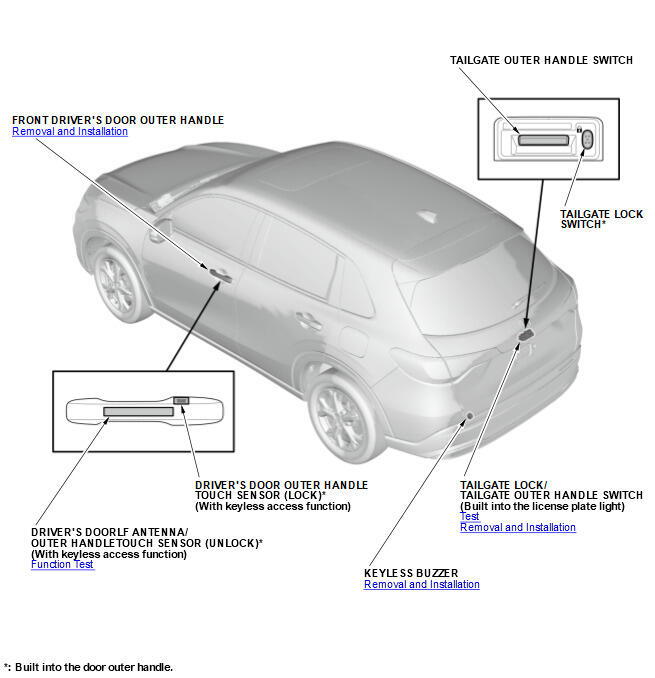

GHH542350Courtesy of HONDA, U.S.A., INC.

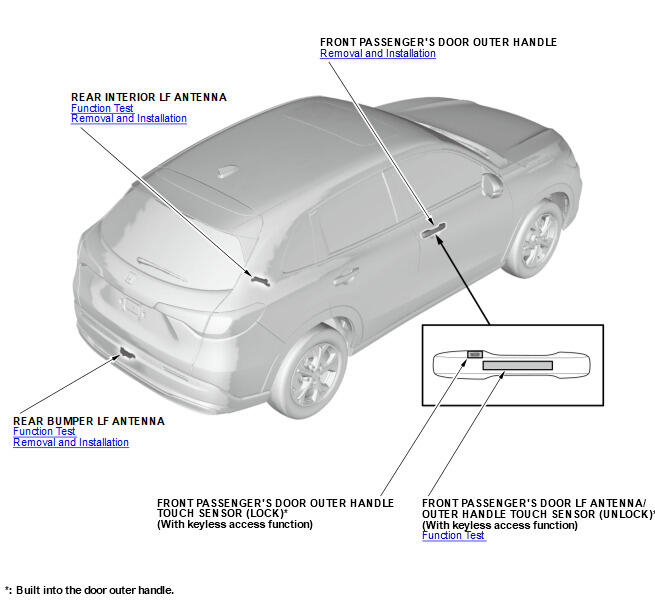

GHH542351Courtesy of HONDA, U.S.A., INC.

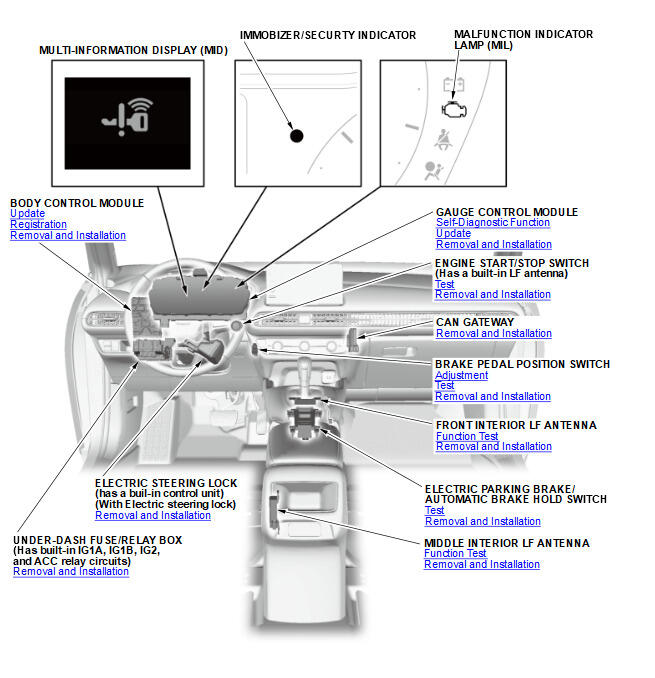

GHH542352Courtesy of HONDA, U.S.A., INC.
