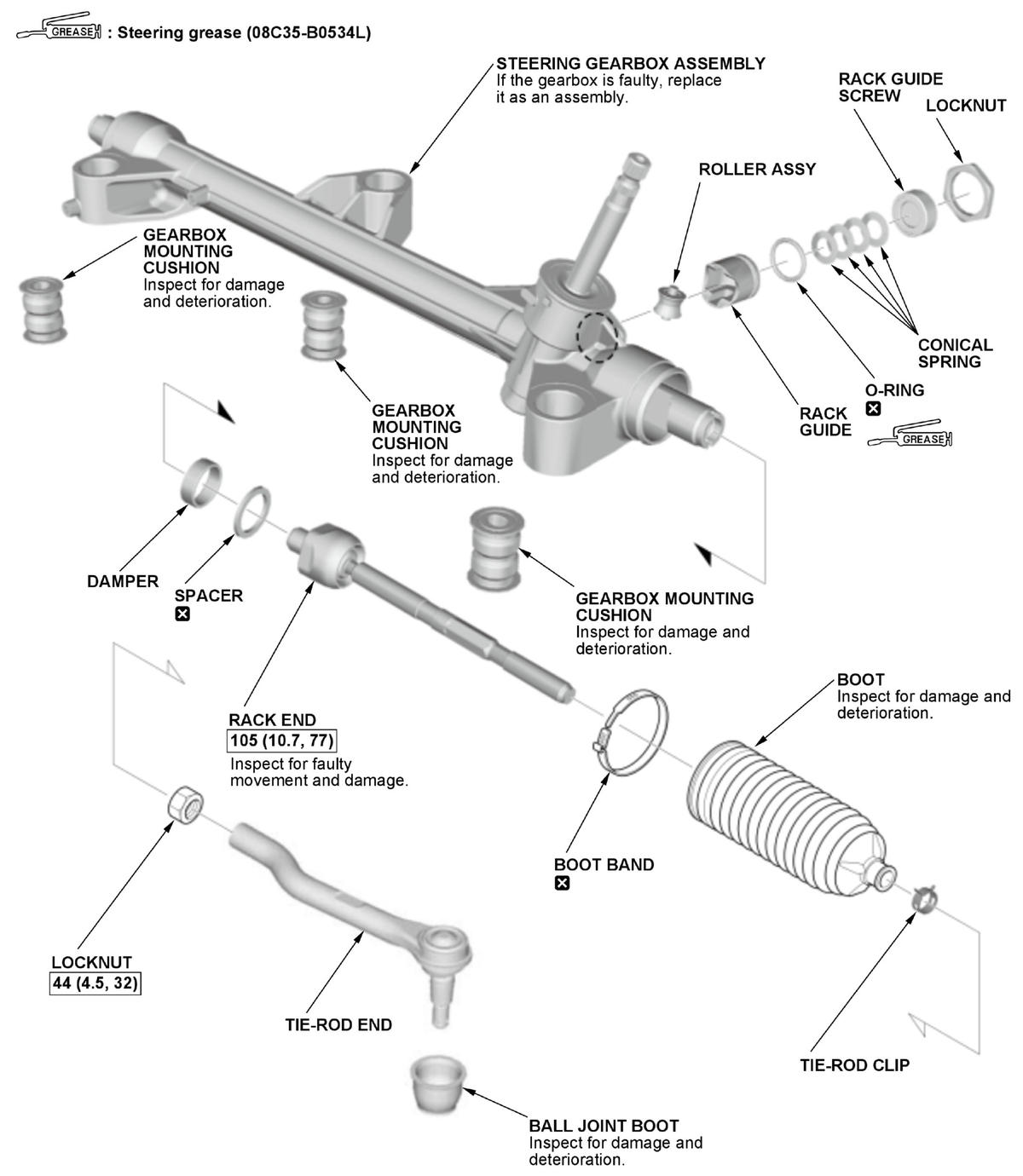

Exploded View
NOTE:
- How to read the torque specifications .
- For these operations, refer to the complete procedure as needed.
- Rack guide adjustment
- Rack end removal and installation
- Tie-rod end ball joint boot replacement
- If the rack guide is removed, rack guide adjustment is necessary .
- Steering Gearbox
