Accessory Power Sockets Component Location Index

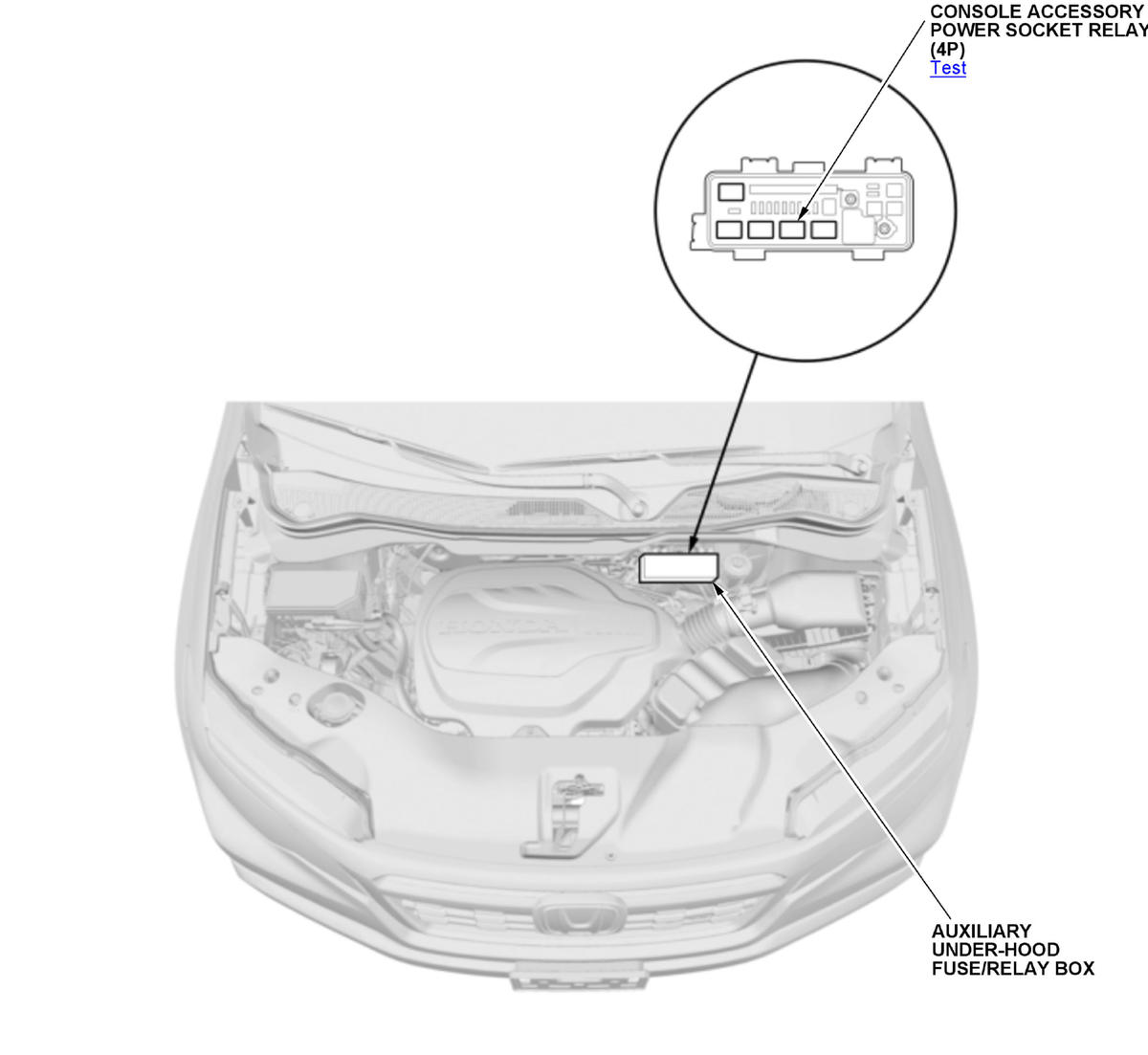

GHH451901

Courtesy of HONDA, U.S.A., INC.

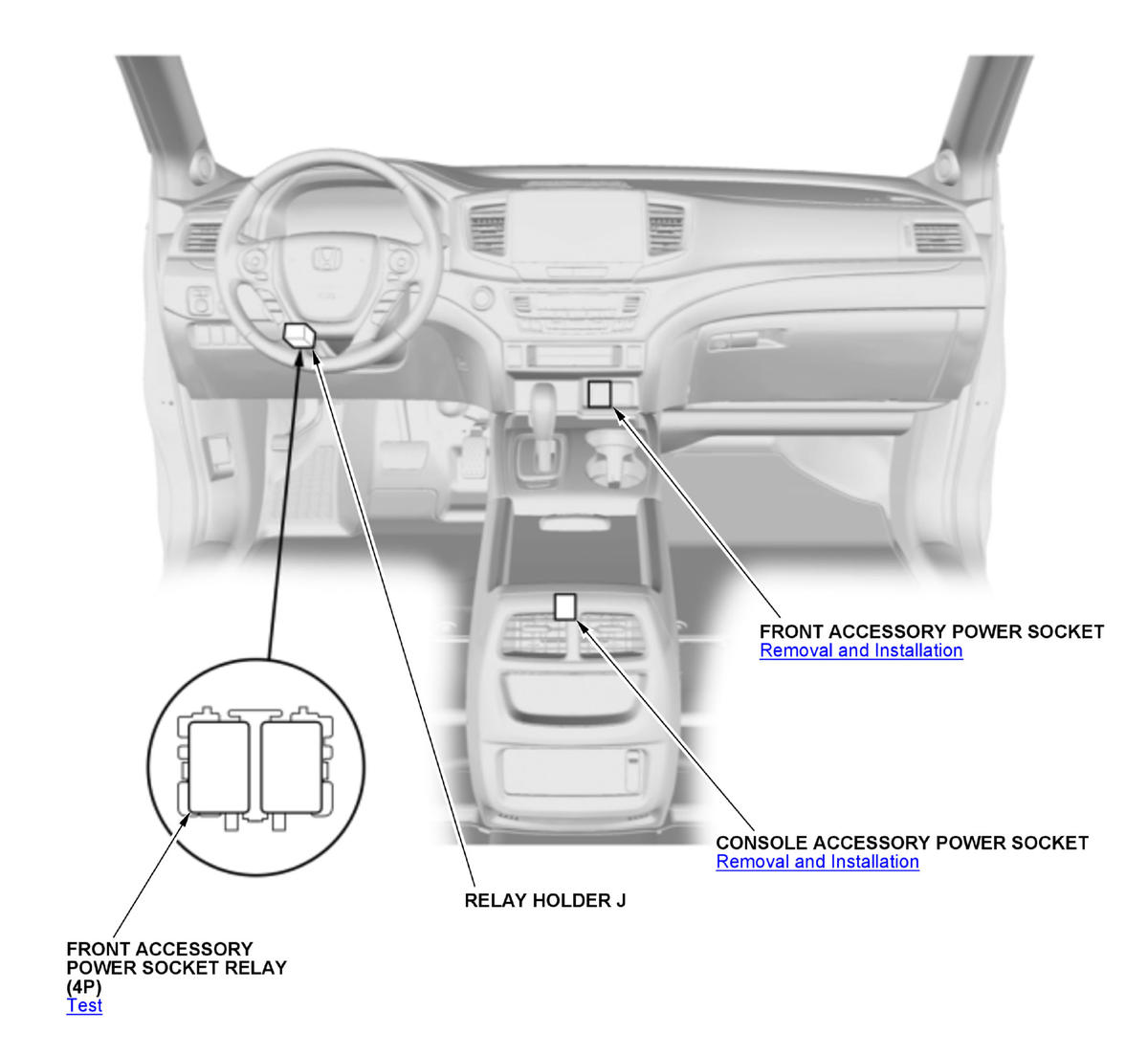

GHH451902

Courtesy of HONDA, U.S.A., INC.
