Rocker Arm Assembly Removal and Installation: Removal

Front

1. Front Cylinder Head Cover - Remove
2. Front Rocker Arm Assembly - Remove

   Courtesy of HONDA, U.S.A., INC.

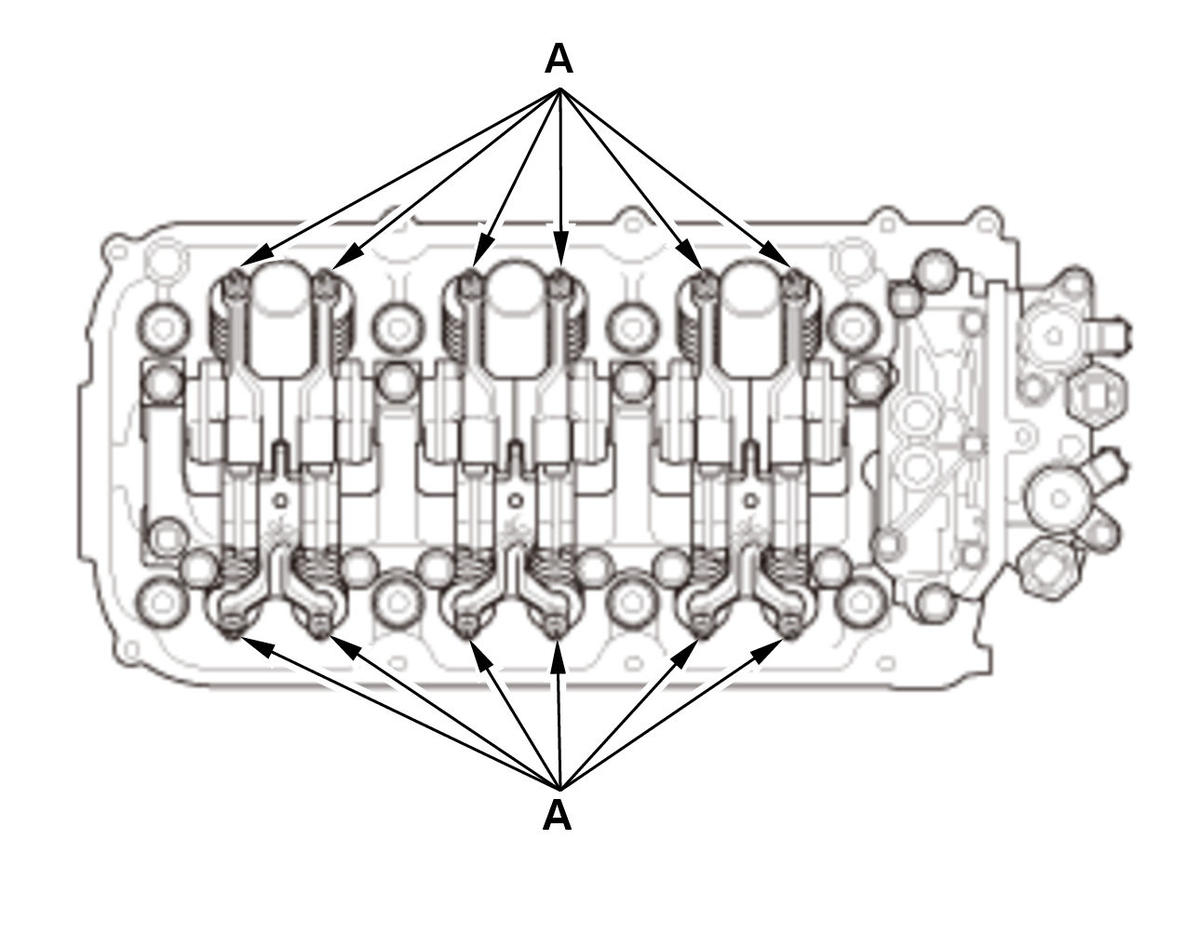

   1. Loosen the locknuts and the adjusting screws (A).

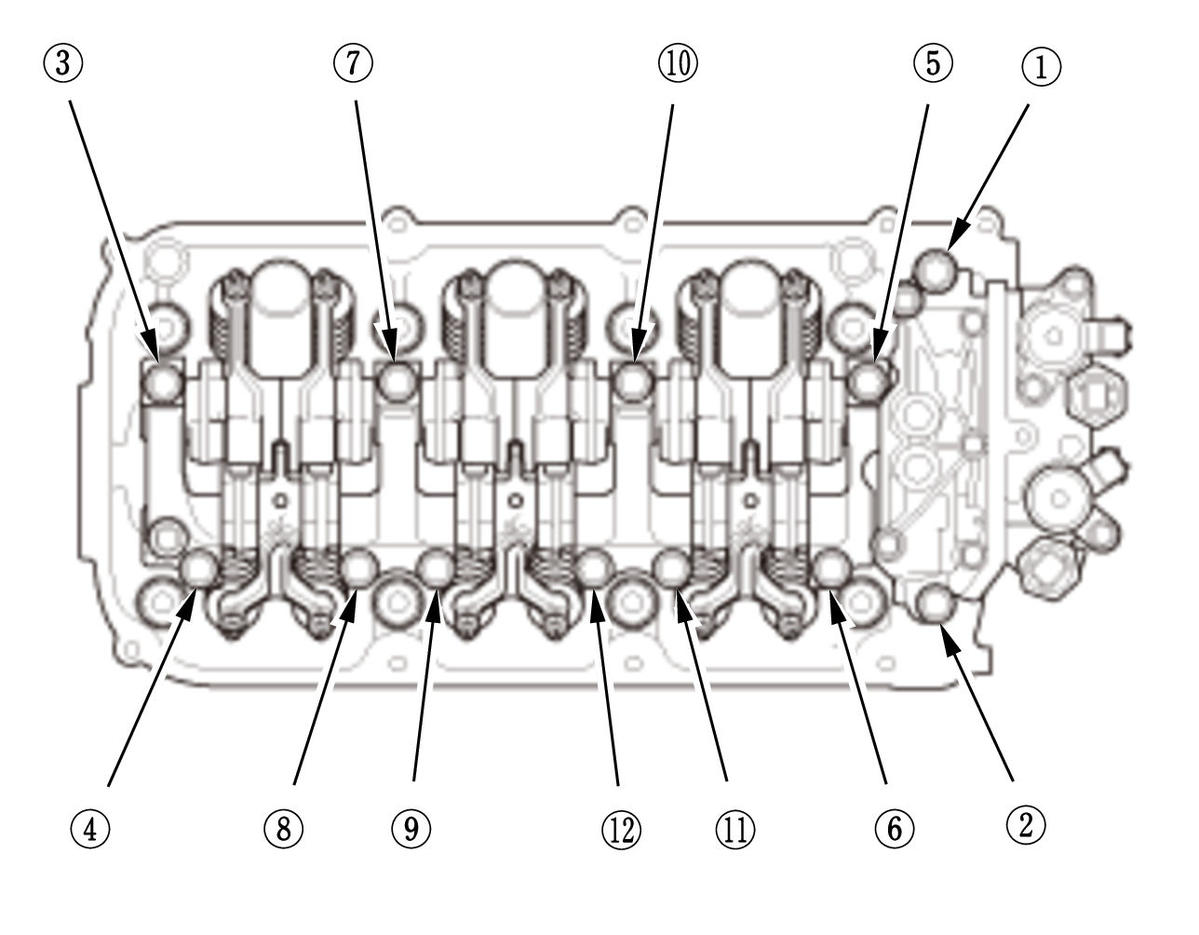

   Fig 1: Loosening Rocker Shaft Holder Mounting Bolts In Sequence

   Courtesy of HONDA, U.S.A., INC.

   2. Loosen the rocker shaft holder mounting bolts and the front rocker arm oil control valve mounting bolts in sequence two turns at a time, to prevent damaging the valves or the rocker arm assembly. 3. When removing the rocker arm assembly, do not remove the rocker shaft holder mounting bolts and the front rocker arm oil control valve mounting bolts. The bolts will keep the rocker arms on the shafts.

   Rear

3. Rear Cylinder Head Cover - Remove
4. Rear Rocker Arm Assembly - Remove

   Courtesy of HONDA, U.S.A., INC.

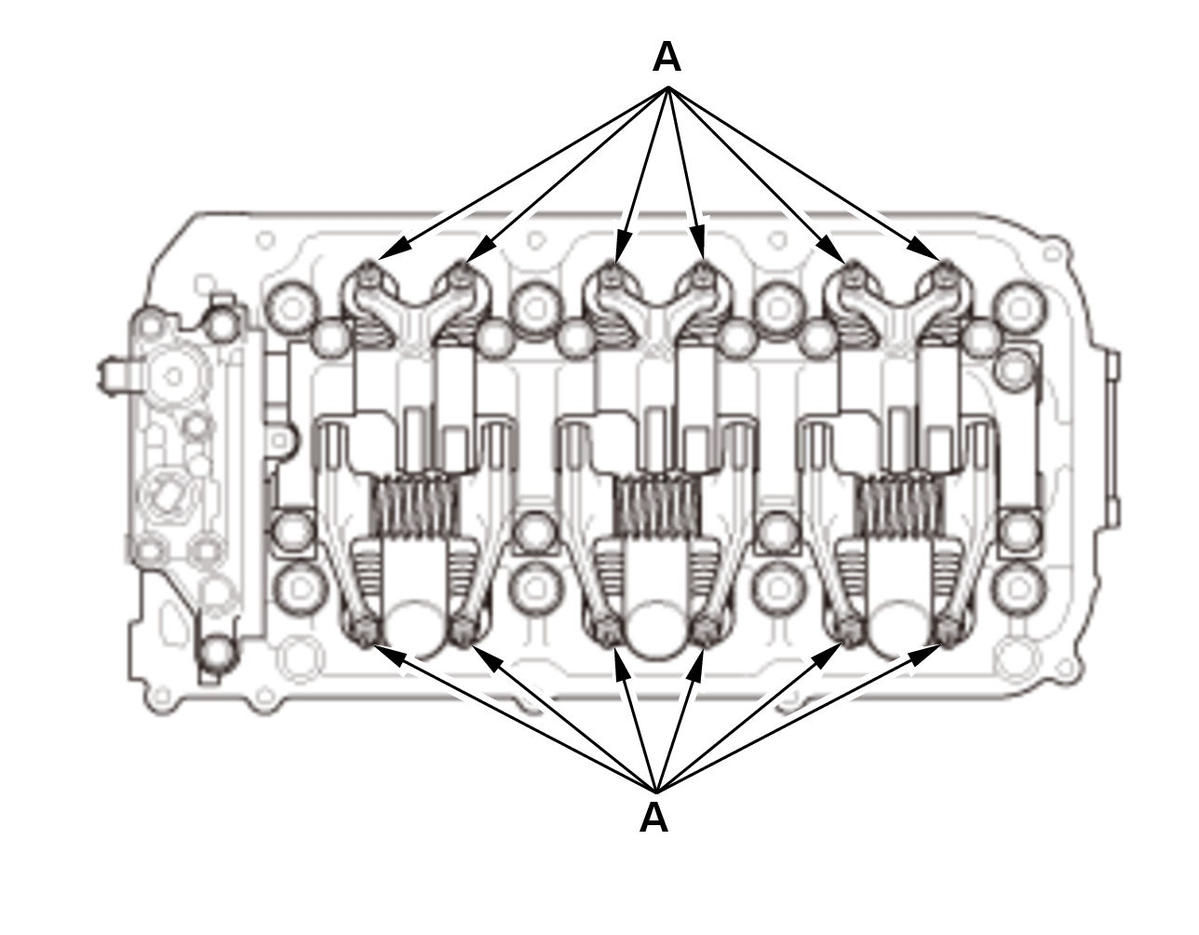

   1. Loosen the locknuts and the adjusting screws (A).

   Courtesy of HONDA, U.S.A., INC.

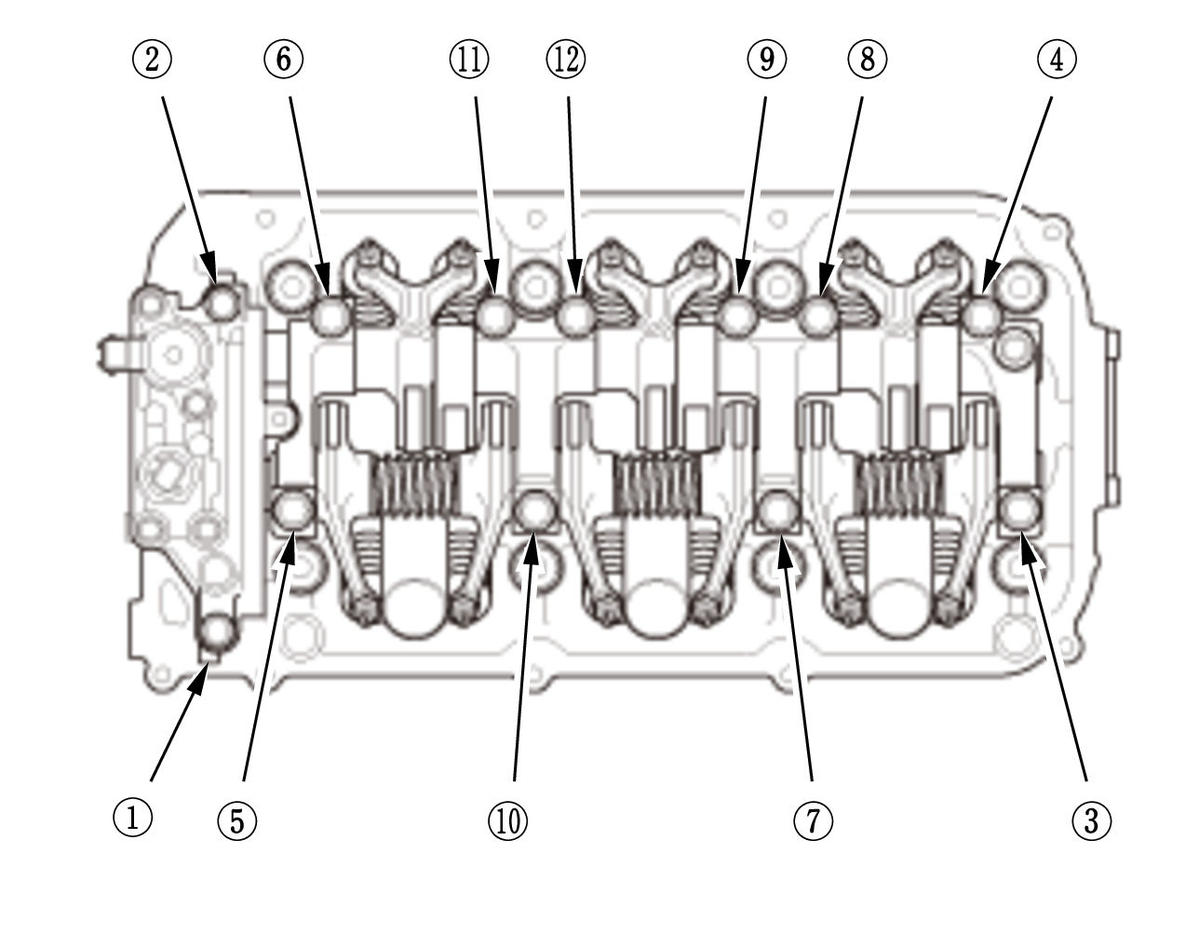

   2. Loosen the rocker shaft holder mounting bolts and the rear rocker arm oil control valve mounting bolts in sequence two turns at a time, to prevent damaging the valves or the rocker arm assembly. 3. When removing the rocker arm assembly, do not remove the rocker shaft holder mounting bolts and the rear rocker arm oil control valve mounting bolts. The bolts will keep the rocker arms on the shafts.
