Rocker Arm Assembly Removal and Installation: Installation

Front

1. Front Rocker Arm Assembly - Reassemble
   NOTE:

   If the rocker arm assembly is disassembled, reassemble the rocker arm assembly .

2. Front Rocker Arm Assembly - Install

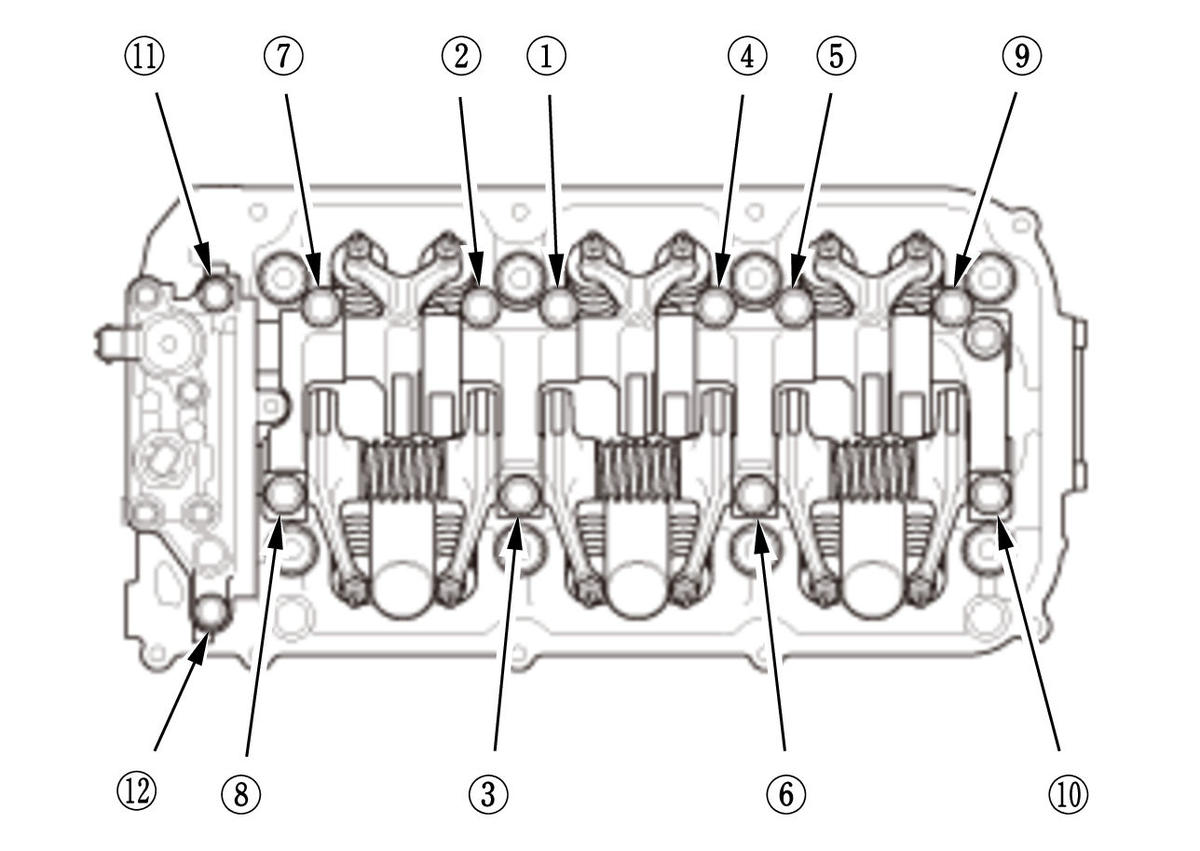

   Fig 1: Tightening Front Rocker Arm Assembly Bolts In Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Loosen the locknuts and the adjusting screws. 2. Apply liquid gasket to the rocker arm oil control valve mating surface of the cylinder head. 3. Set the rocker arm assembly in place, and loosely install the bolts. Make sure that the rocker arms are properly positioned on the valve stems. 4. Tighten each bolt two turns at a time in the sequence shown in illustration to ensure that the rockers do not bind on the valves. Specified Torque

   - :	27 N.m (2.8 kgf.m, 20 lbf.ft)
   , :	22 N.m (2.2 kgf.m, 16 lbf.ft)

3. Valve Clearance - Adjust
4. Front Cylinder Head Cover - Install

   Rear

5. Rear Rocker Arm Assembly - Reassemble
   NOTE:

   If the rocker arm assembly is disassembled, reassemble the rocker arm assembly .

6. Rear Rocker Arm Assembly - Install

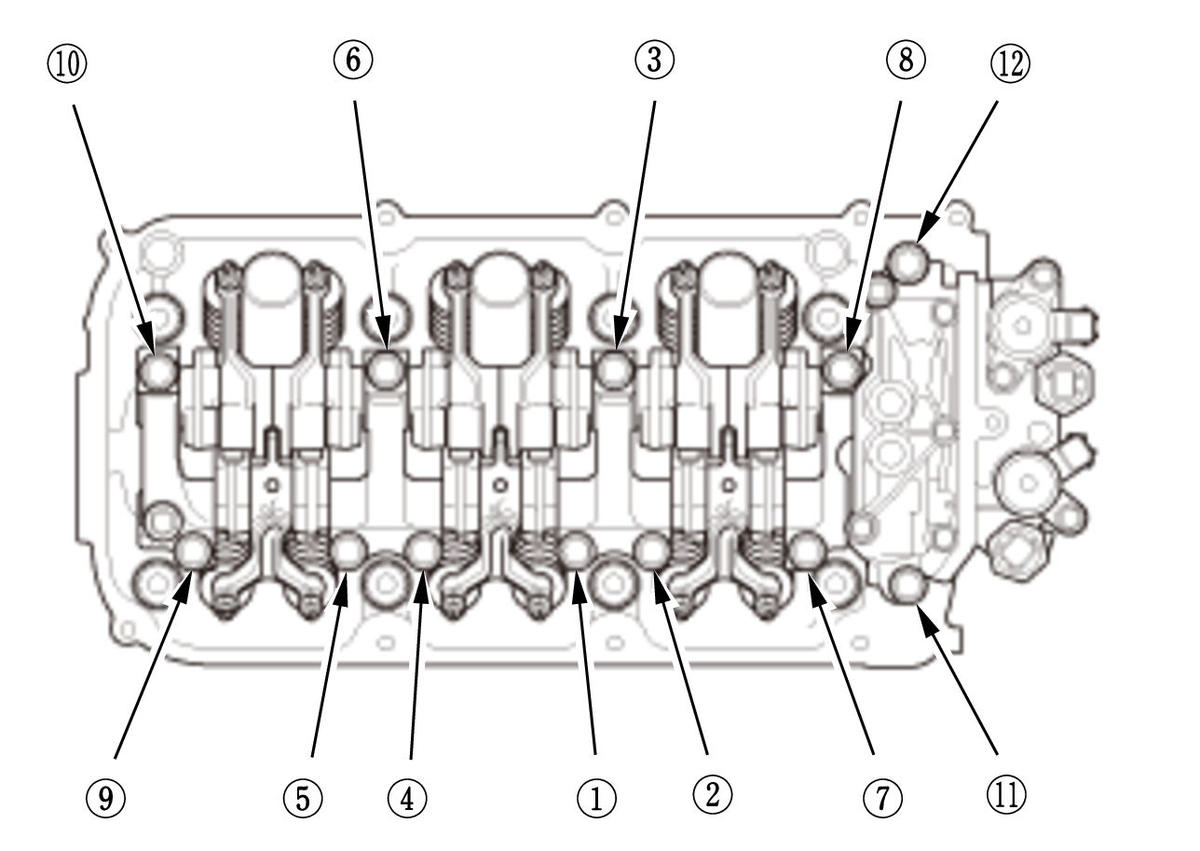

   Fig 2: Tightening Rear Rocker Arm Assembly Bolts In Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Loosen the locknuts and the adjusting screws. 2. Apply liquid gasket to the rocker arm oil control valve mating surface of the cylinder head. 3. Set the rocker arm assembly in place, and loosely install the bolts. Make sure that the rocker arms are properly positioned on the valve stems. 4. Tighten each bolt two turns at a time in the sequence shown in illustration to ensure that the rockers do not bind on the valves. Specified Torque

   - :	27 N.m (2.8 kgf.m, 20 lbf.ft)
   , :	22 N.m (2.2 kgf.m, 16 lbf.ft)

7. Valve Clearance - Adjust
8. Rear Cylinder Head Cover - Install
