Intake Manifold Removal and Installation (2017 2018 2019)
>>
Exploded View
Exploded View
NOTE:
How to read the torque specifications
.
Intake Manifold

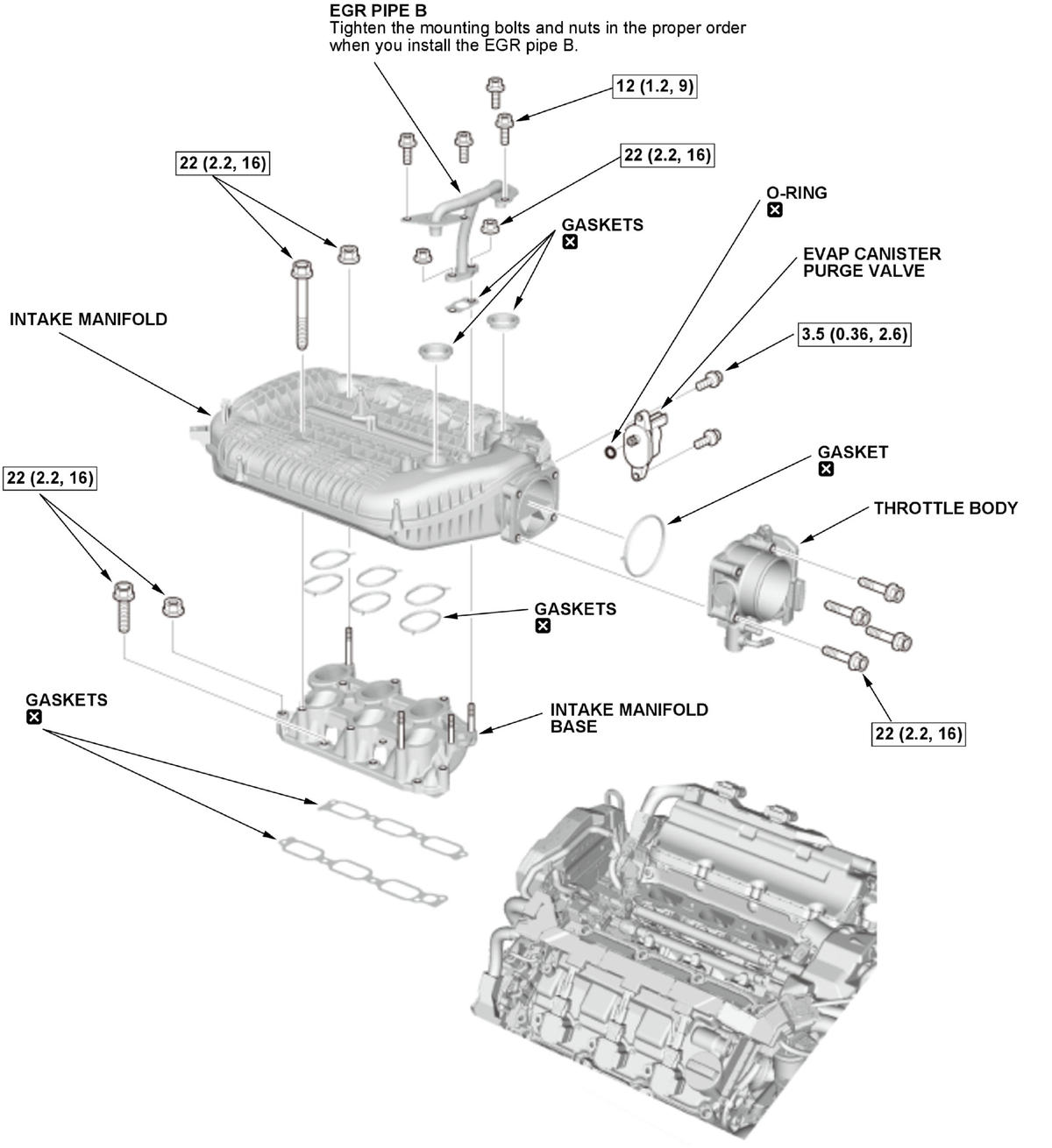

Fig 1: Intake Manifold Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
