Home >> Honda >> 2021 >> Pilot LX, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Security System Keyless Entry System - Service Information >> Removal and Installation >> Keyless Buzzer >> Removal and Installation

Removal and Installation

  1. Rear Bumper - Remove
  2. Keyless Buzzer - Remove

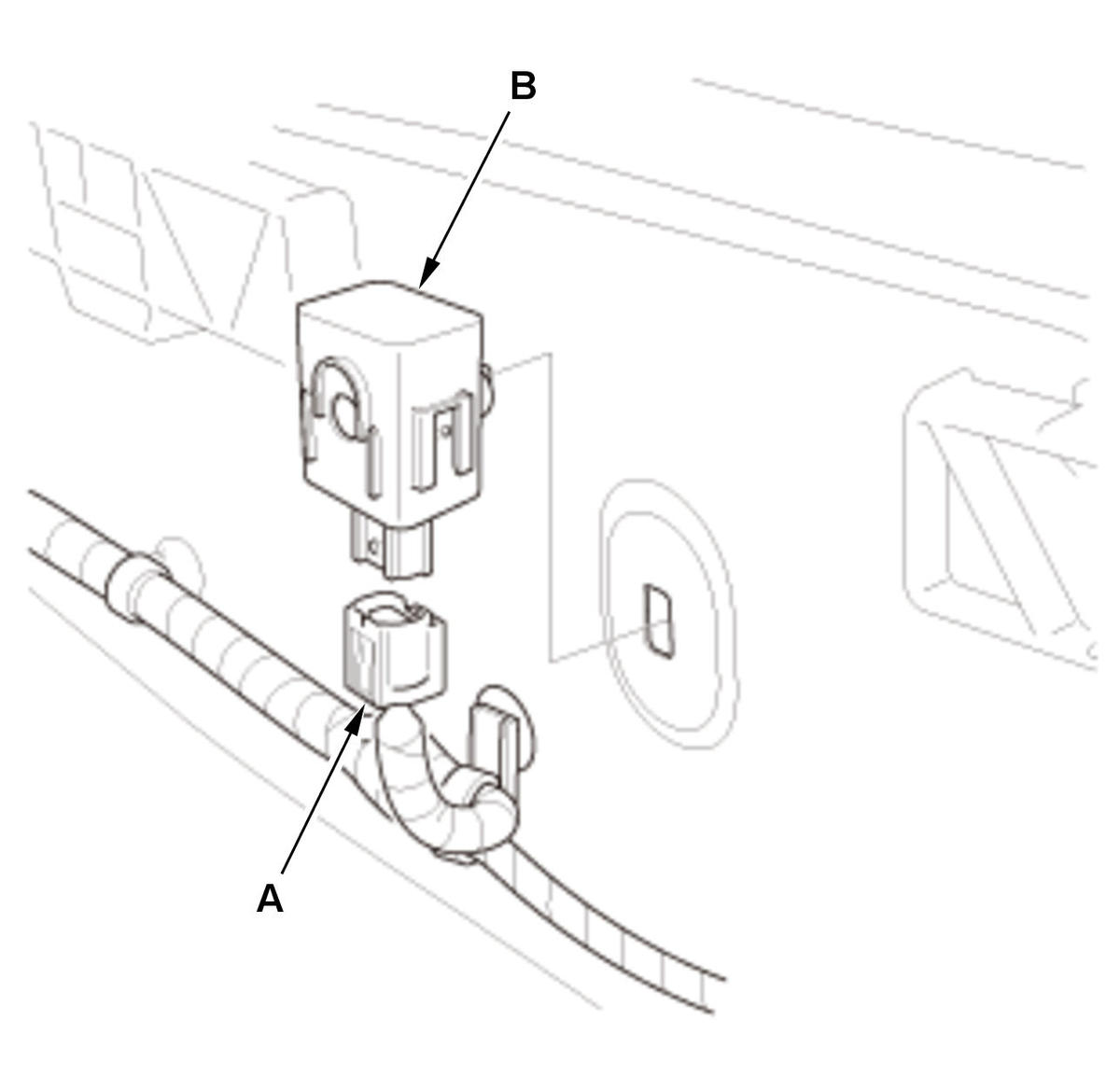

    GHH312214Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Remove the keyless buzzer (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
