System Diagram

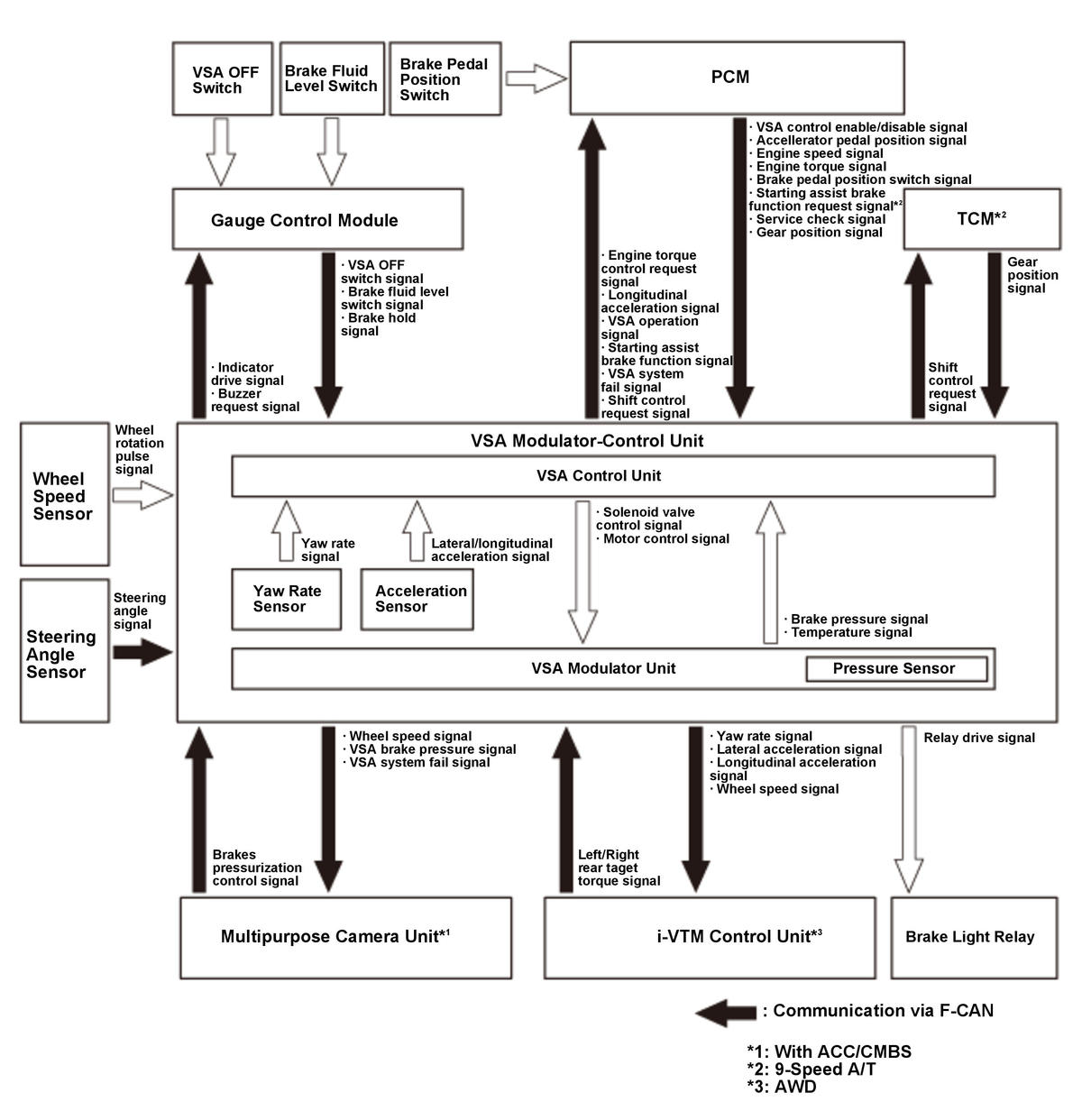

The system diagram of the VSA system is shown below.

GHH313389

Courtesy of HONDA, U.S.A., INC.
