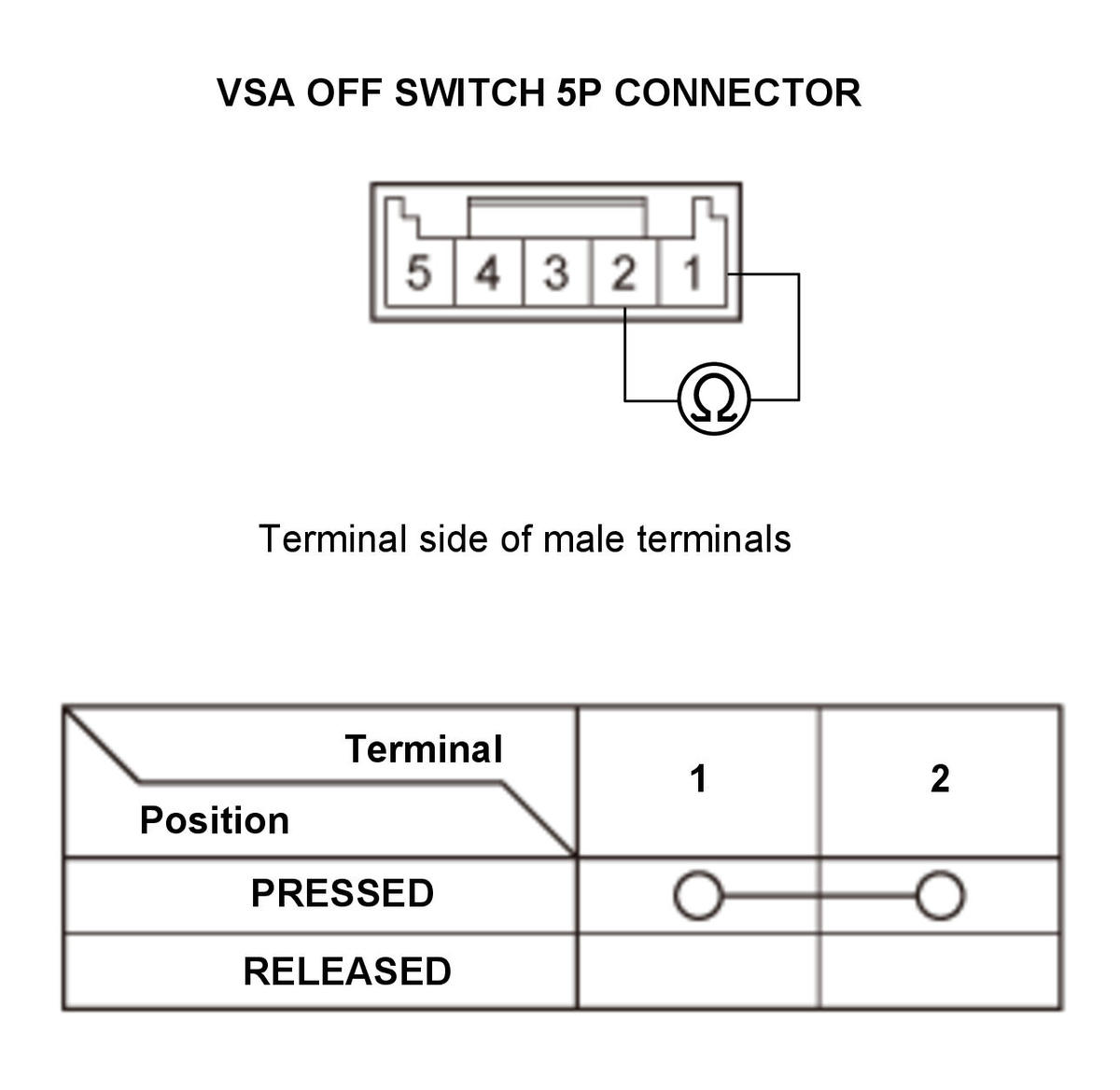

VSA OFF switch 5P Type
   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

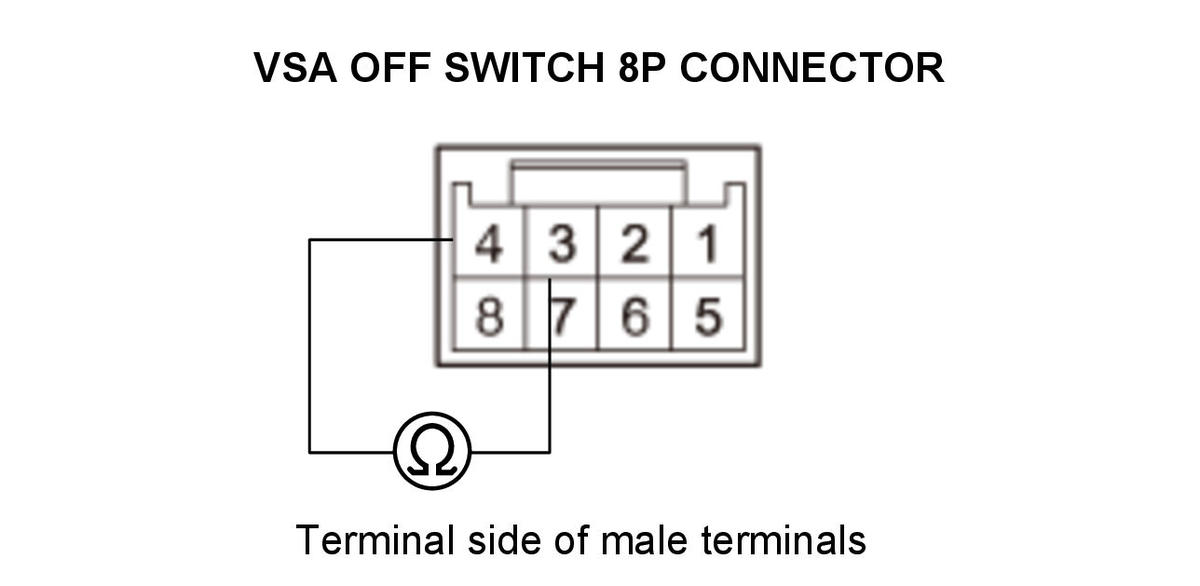

VSA OFF switch 8P Type
Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.
|

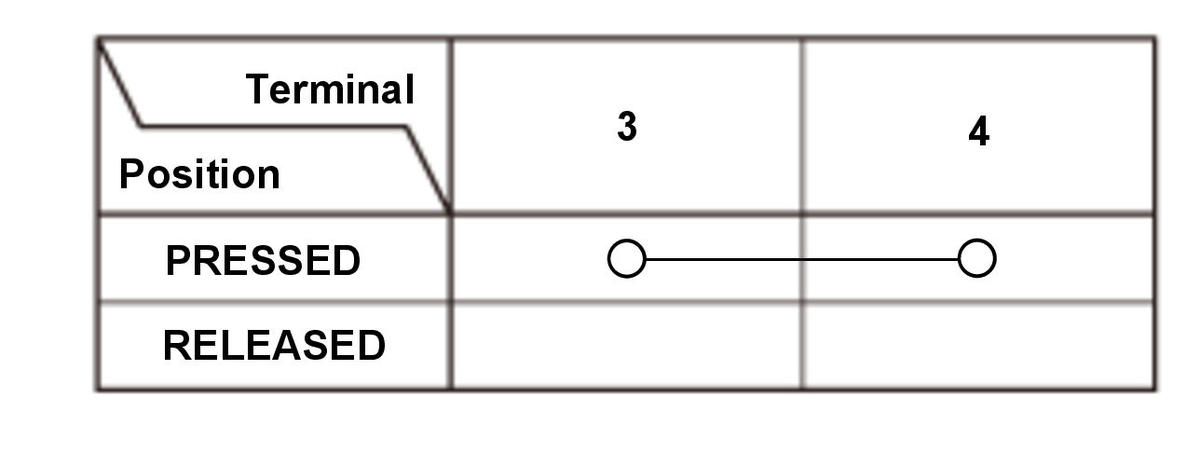

1. On the switch side, check for continuity between the connector terminal in each switch position according to the table. 2. If there is no continuity, replace the VSA OFF switch.
|
