Removal & Installation: Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2016) or SRS Component Location Index (2017 2018 2019 2020 2021) , and the Precautions & Procedures before doing repairs or service.

1. Steering Angle Sensor - Install

   Courtesy of HONDA, U.S.A., INC.

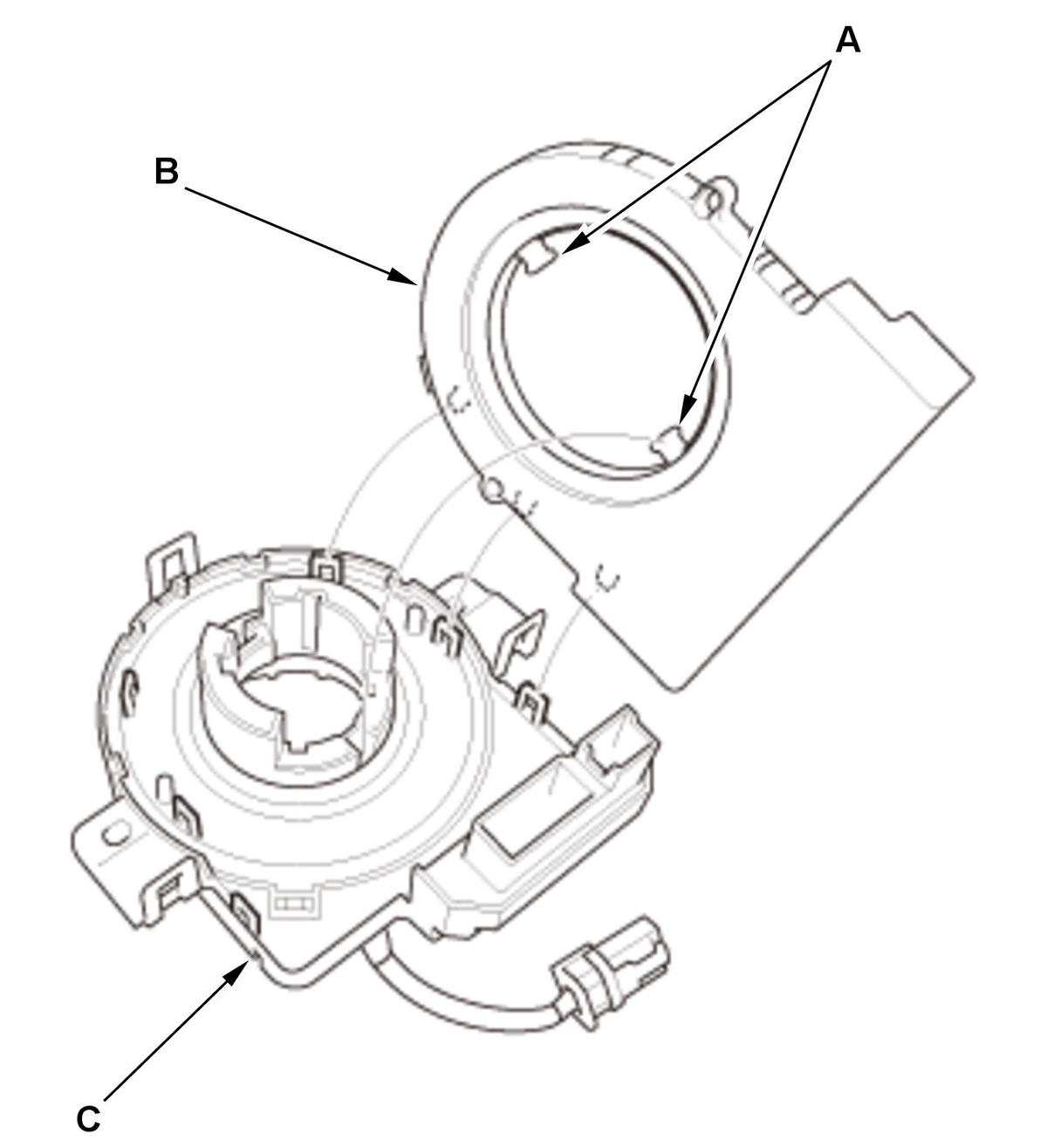

   1. Position the two tabs (A) of the steering angle sensor (B) as shown. Install the steering angle sensor to the cable reel (C). NOTE:  When reinstalling used components, make sure to keep the positions of the rotating parts as they were originally kept.

2. Cable Reel/Steering Angle Sensor - Install - Refer to:Cable Reel/Steering Angle Sensor - Install
3. Column Cover - Install - Refer to:Column Cover - Install
4. Steering Wheel - Install - Refer to: Steering Wheel Removal and Installation (2016 2017 2018) or Steering Wheel Removal and Installation (2019)
5. VSA Sensor Neutral Position - Memorize - Refer to:VSA Sensor Neutral Position - Memorize
6. Steering Angle Sensor Neutral Position - Clear - Refer to:Steering Angle Sensor Neutral Position - Clear
