Power Mirror Actuator: Test

Front Door Panel - Remove

Power Mirror Actuator - Test

1. Disconnect the connector (A).

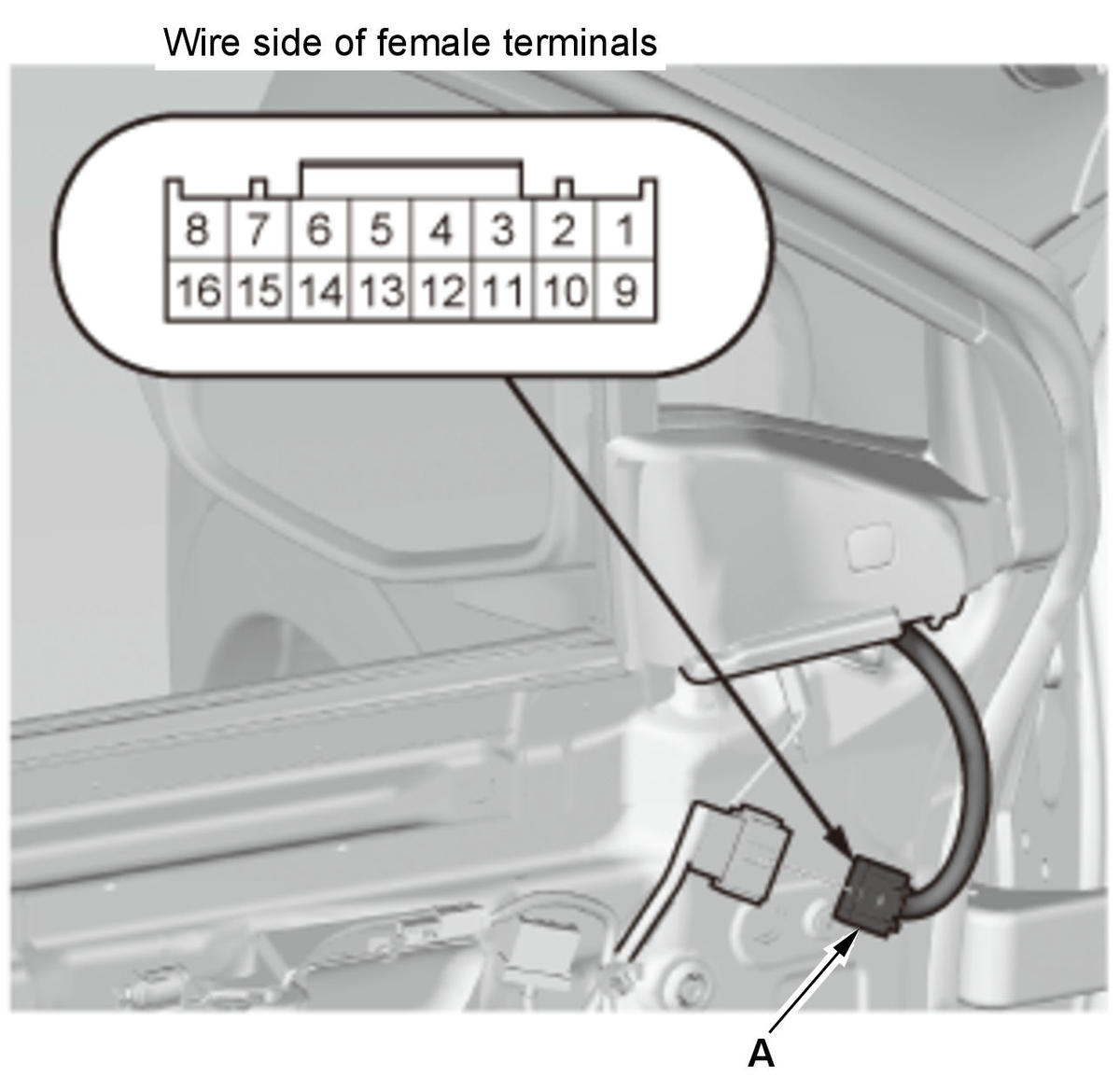

Driver's side

Courtesy of HONDA, U.S.A., INC.

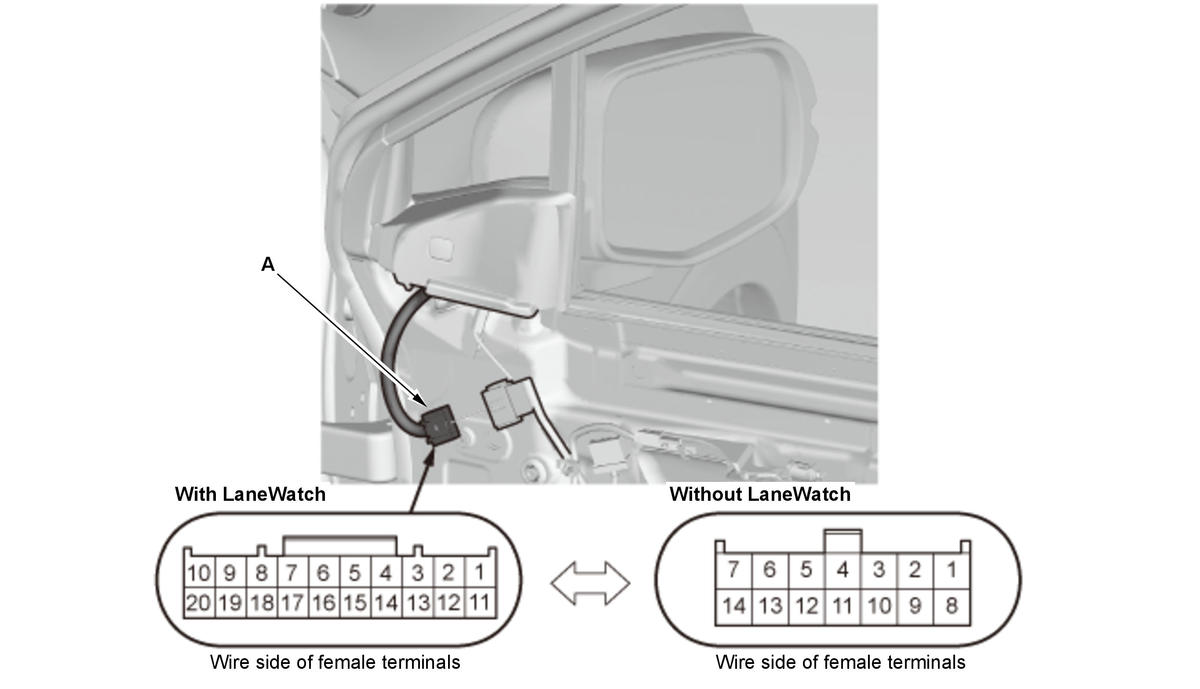

Front passenger's side

Courtesy of HONDA, U.S.A., INC.

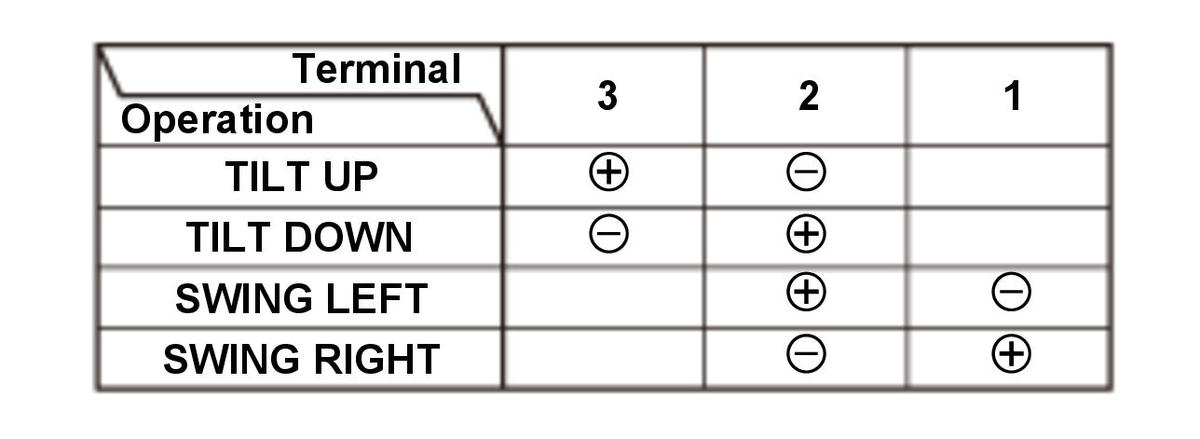

Left Power Mirror Actuator (Without DPMS)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

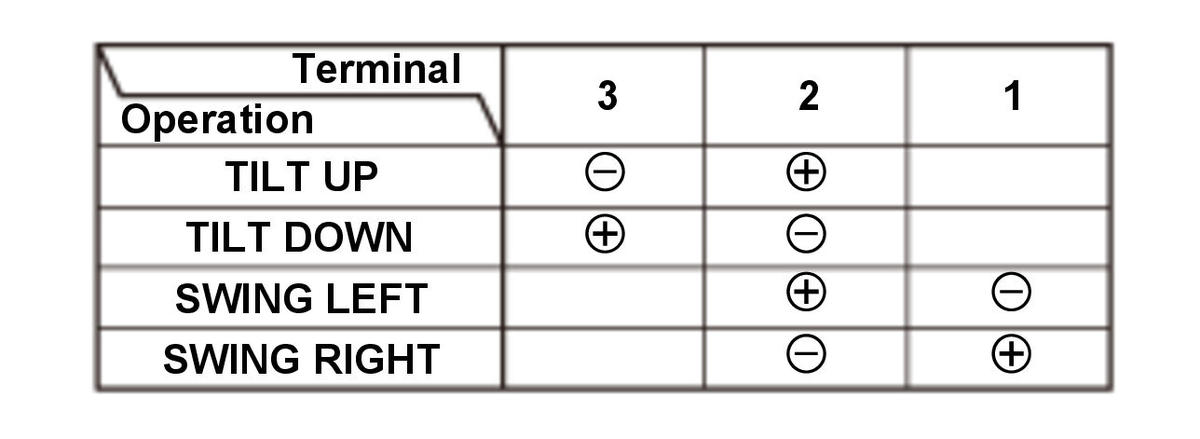

Left Power Mirror Actuator (With DPMS)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

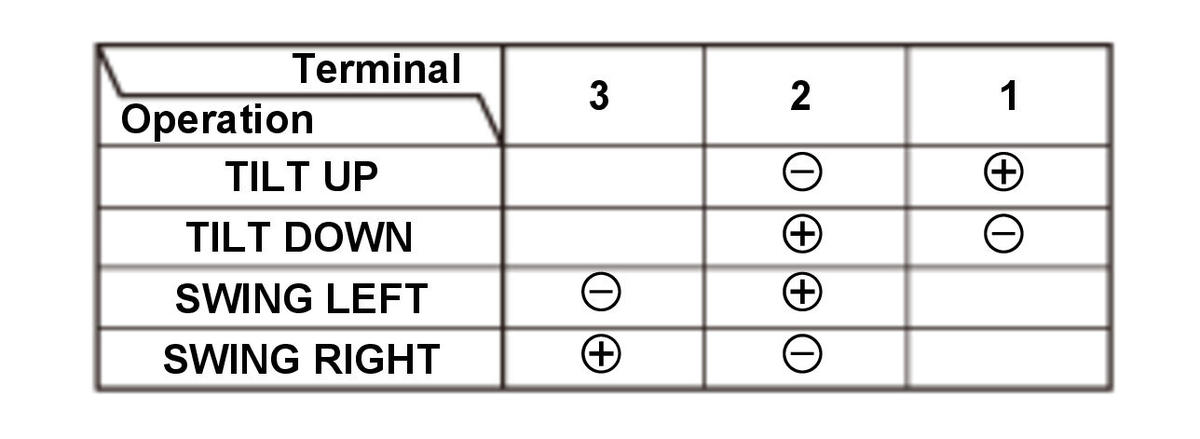

Right Power Mirror Actuator

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

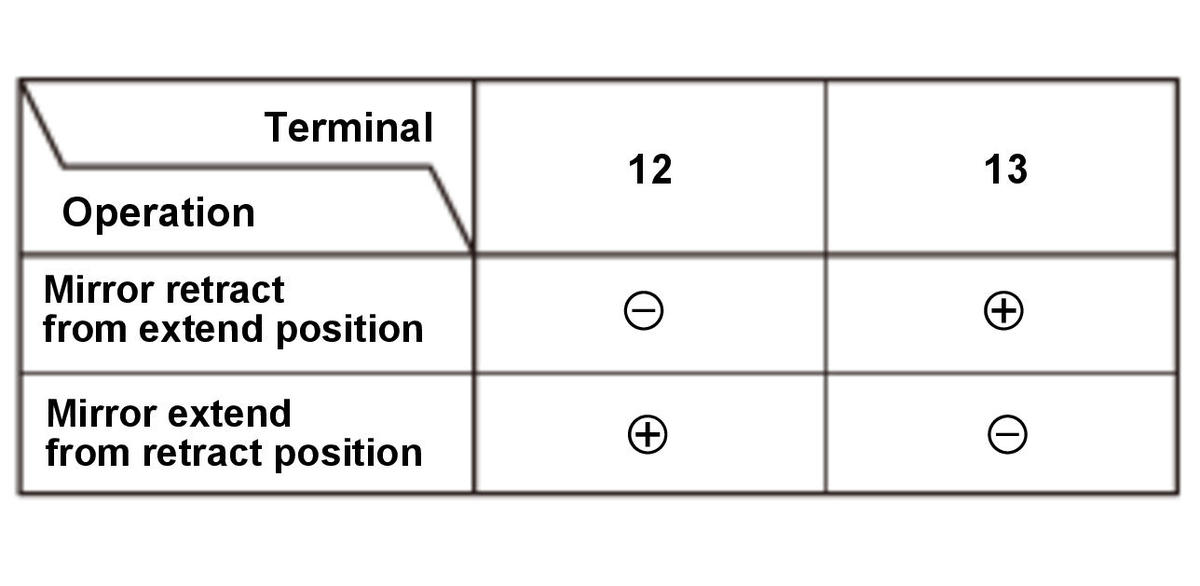

Left and Right Power Mirror Retract Actuator (With retract power mirror)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

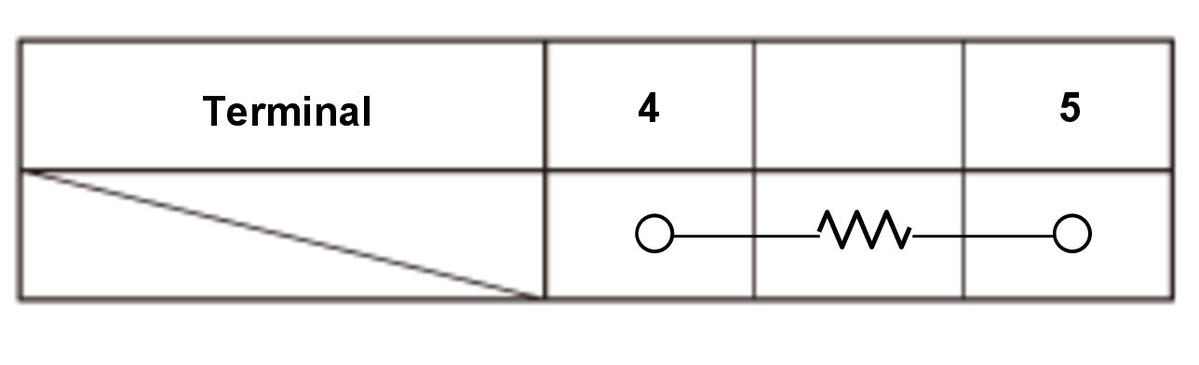

Defogger (With mirror defogger)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Actuator Test

2. Check the actuator operation by connecting power and ground according to the table.

3. If the mirror fails to work properly, check for an open or high resistance in the wire between the connector and the mirror holder. If the wire is OK, replace the power mirror actuator - Refer to: Power Mirror Actuator - Removal and Installation

Defogger Test

4. Check for continuity between the terminals according to the table. There should be continuity.

5. If there is no continuity, check for an open or high resistance in the wire between the connector and the mirror holder. If the wire is OK, replace the mirror holder. Refer to:

Mirror Holder - Removal and Installation

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
