Seat Heaters

Seat Heaters - System Diagram (2019 2020 2021)  or

Seat Heaters - System Diagram (2016 2017 2018) .

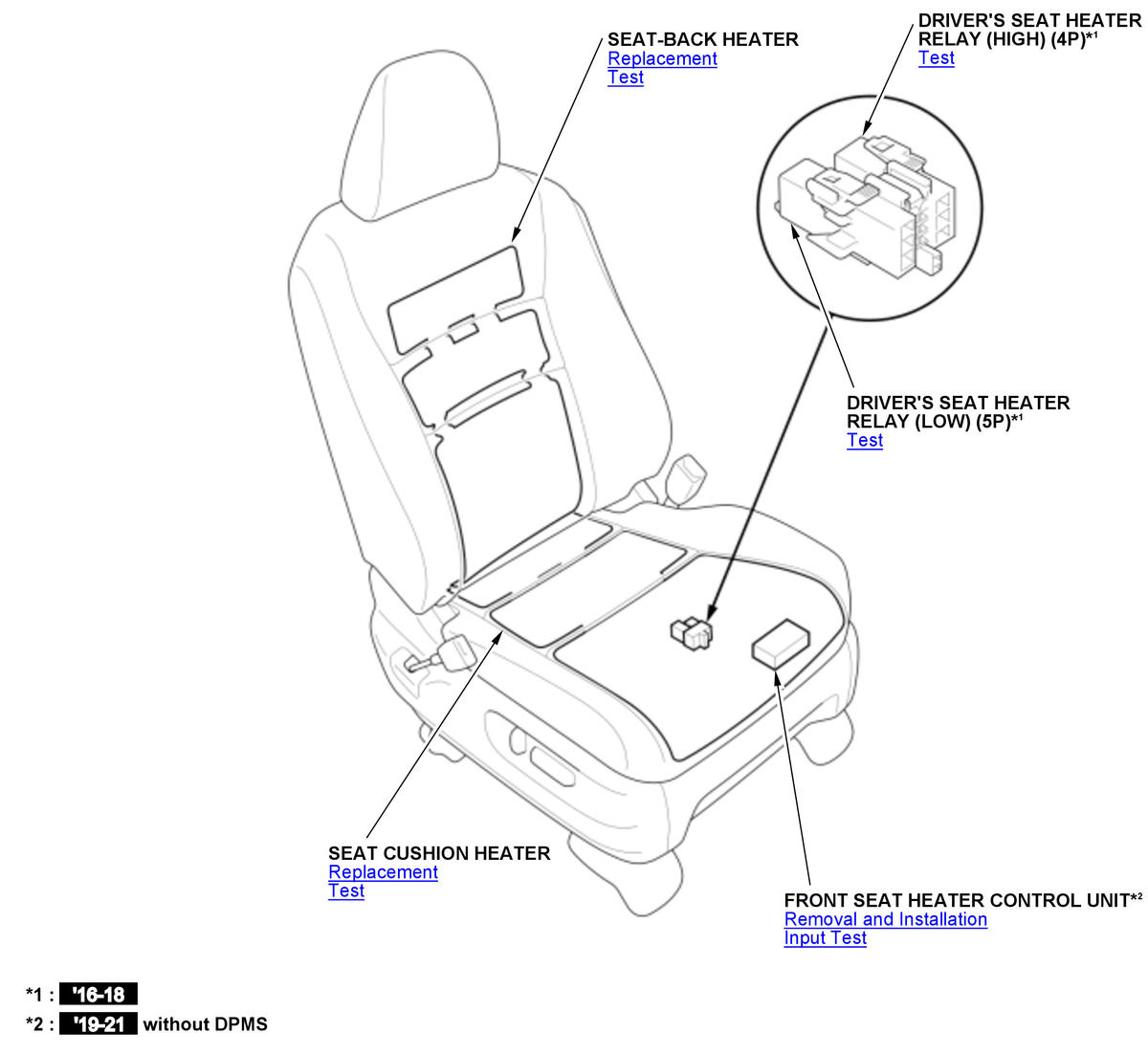

Driver's Seat

Courtesy of HONDA, U.S.A., INC.

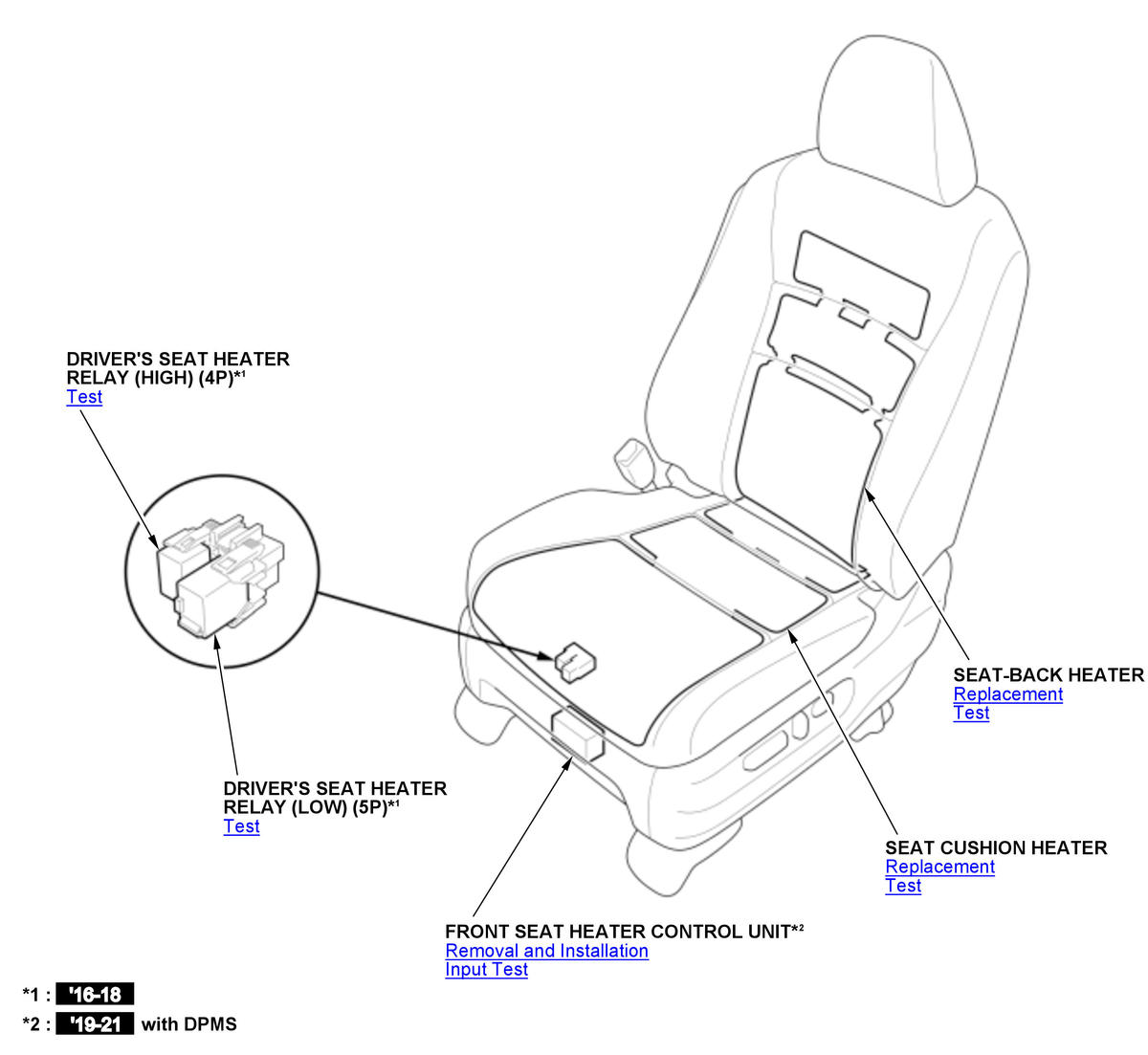

Front Passenger's Seat

Courtesy of HONDA, U.S.A., INC.

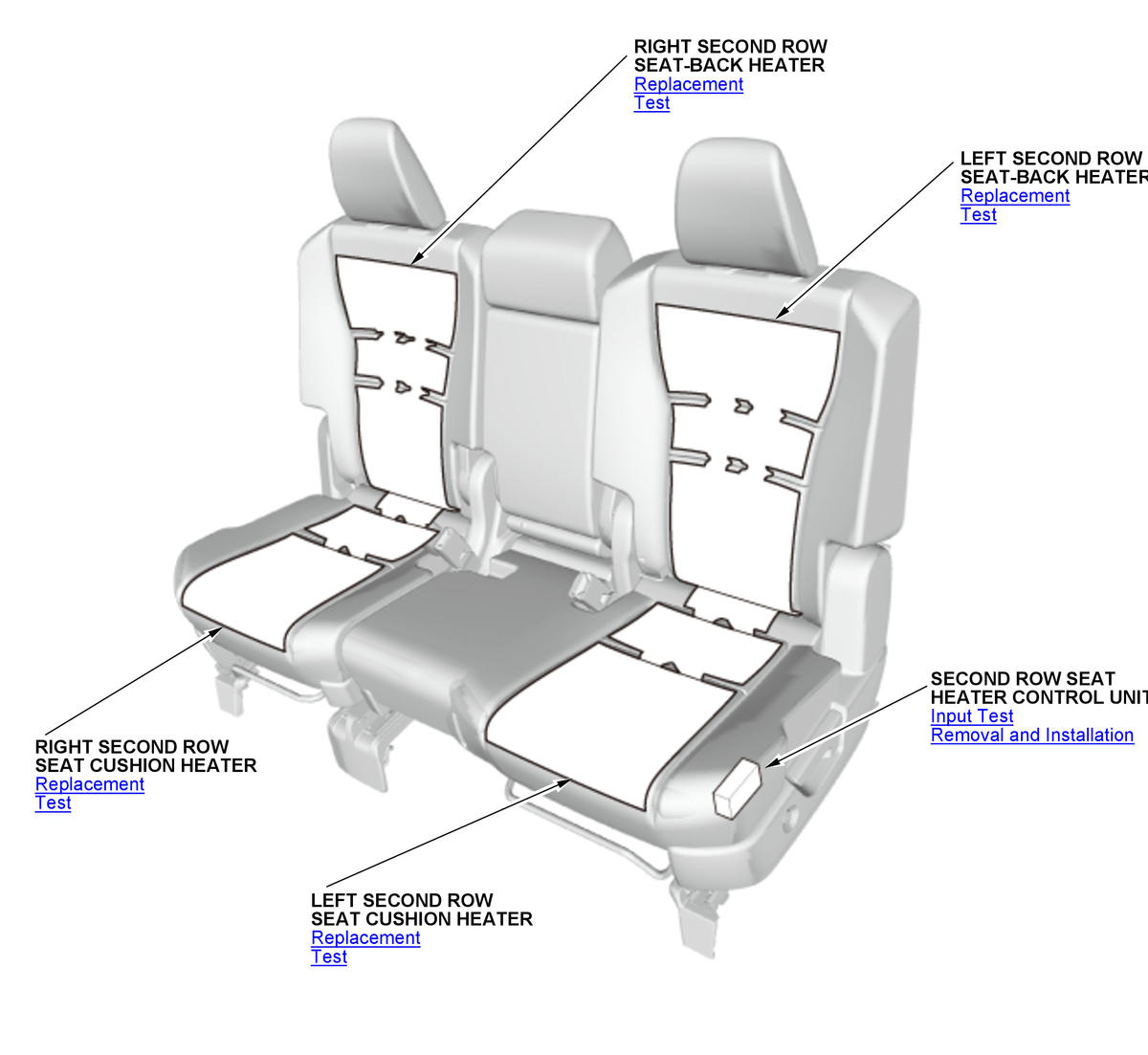

Second Row Seat (Bench Seat)

Courtesy of HONDA, U.S.A., INC.

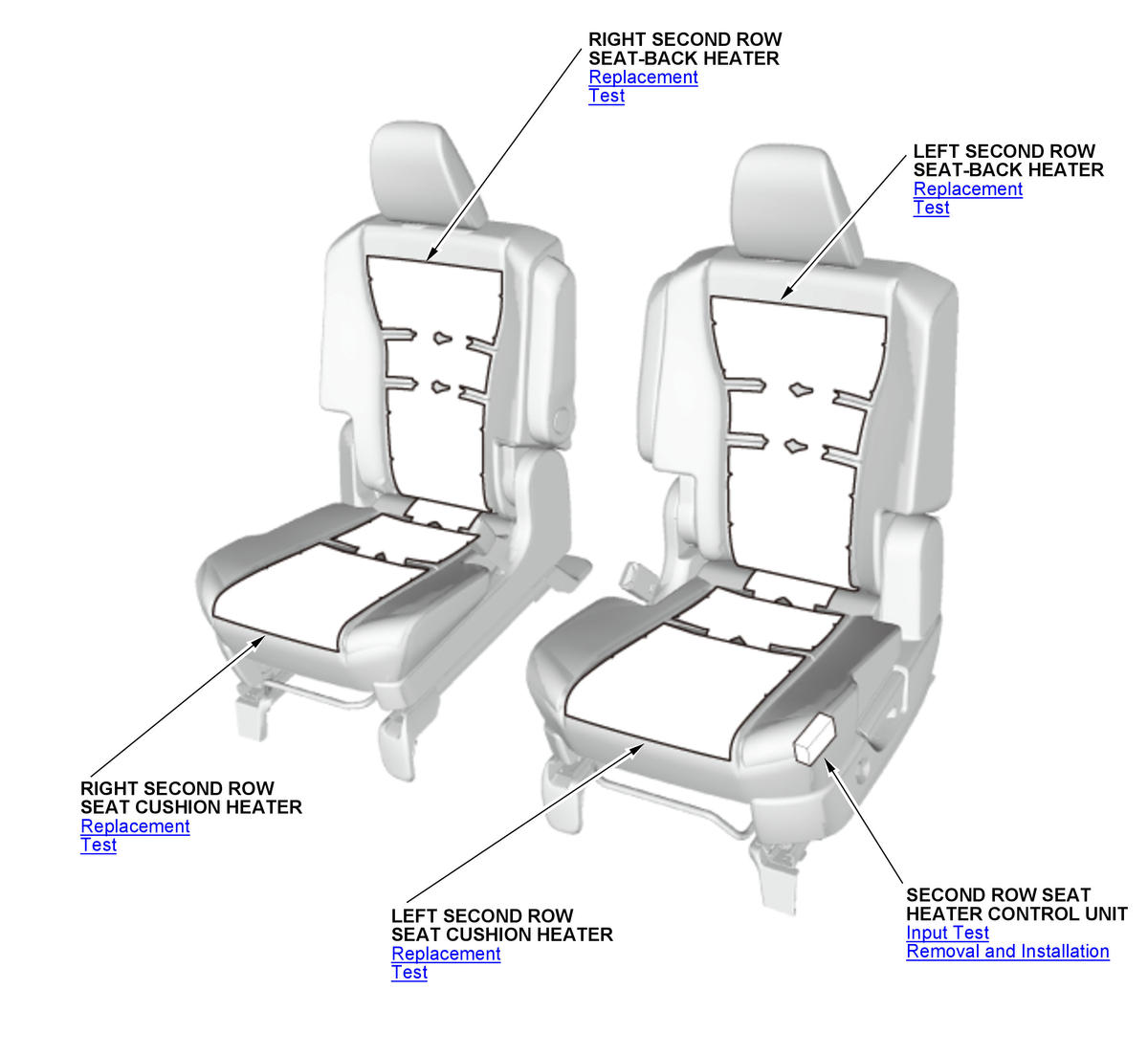

Second Row Seat (Captain Seat)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
