Component Location Index
>>
Accessory Power Sockets
Accessory Power Sockets

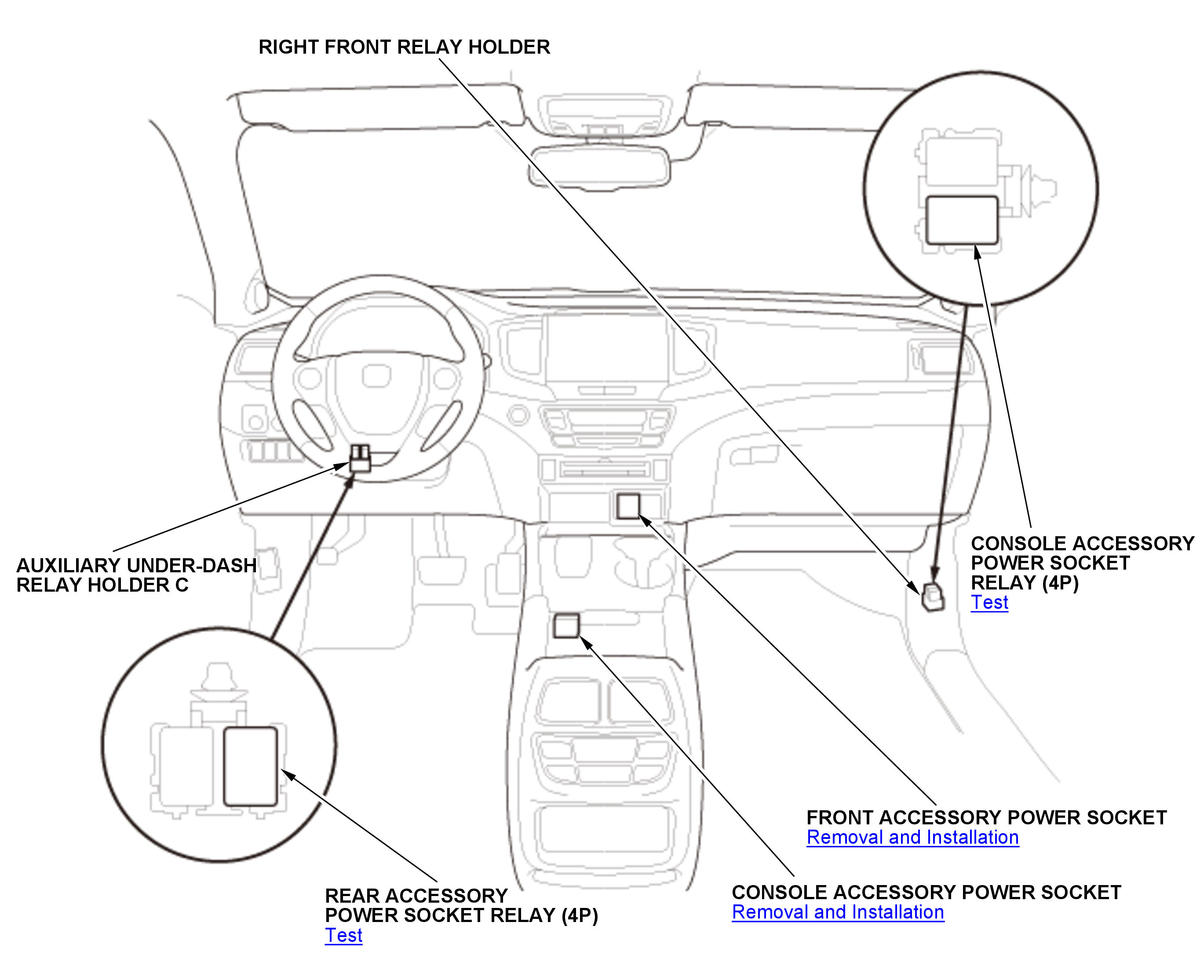

Courtesy of HONDA, U.S.A., INC.

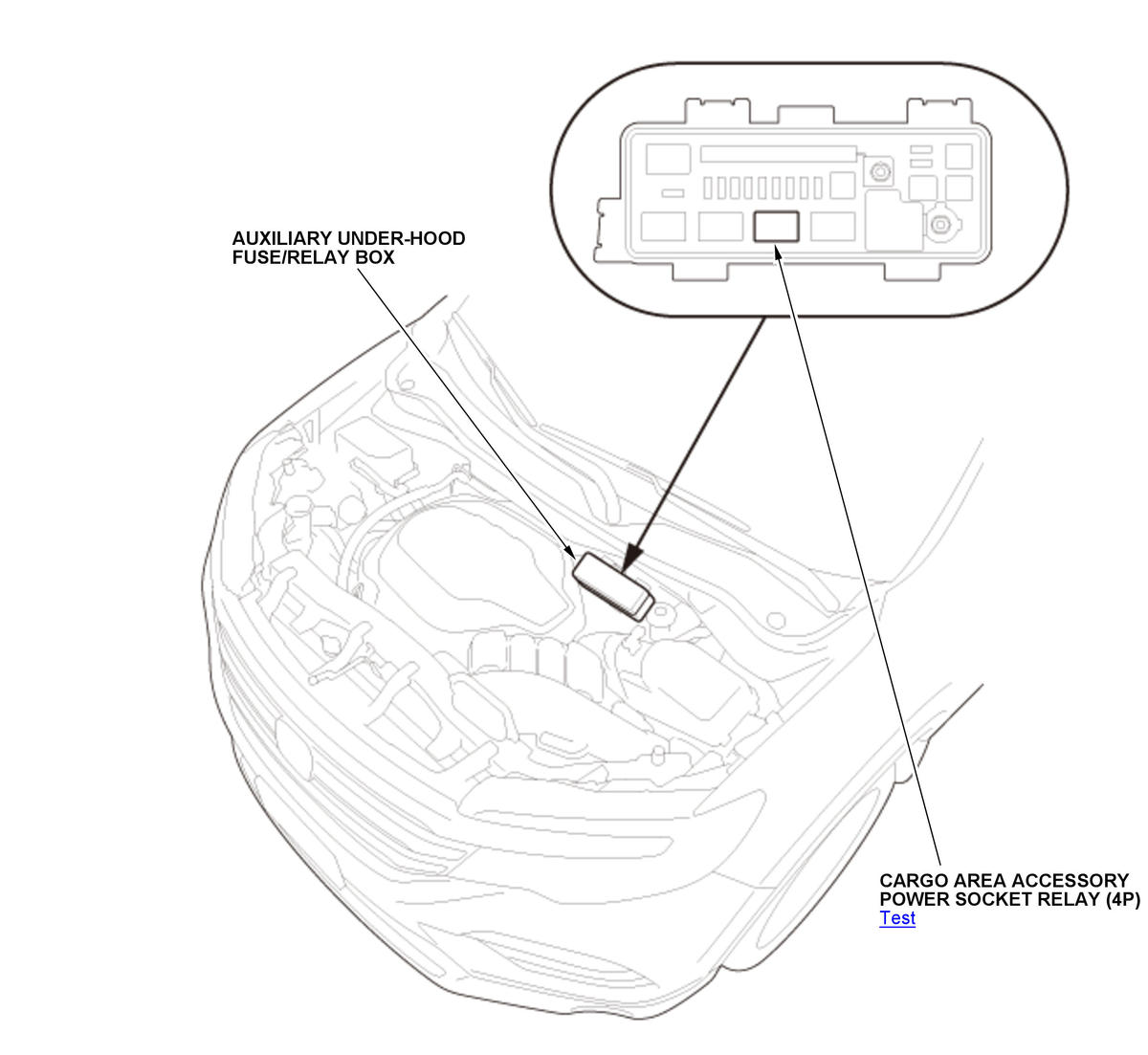

Courtesy of HONDA, U.S.A., INC.

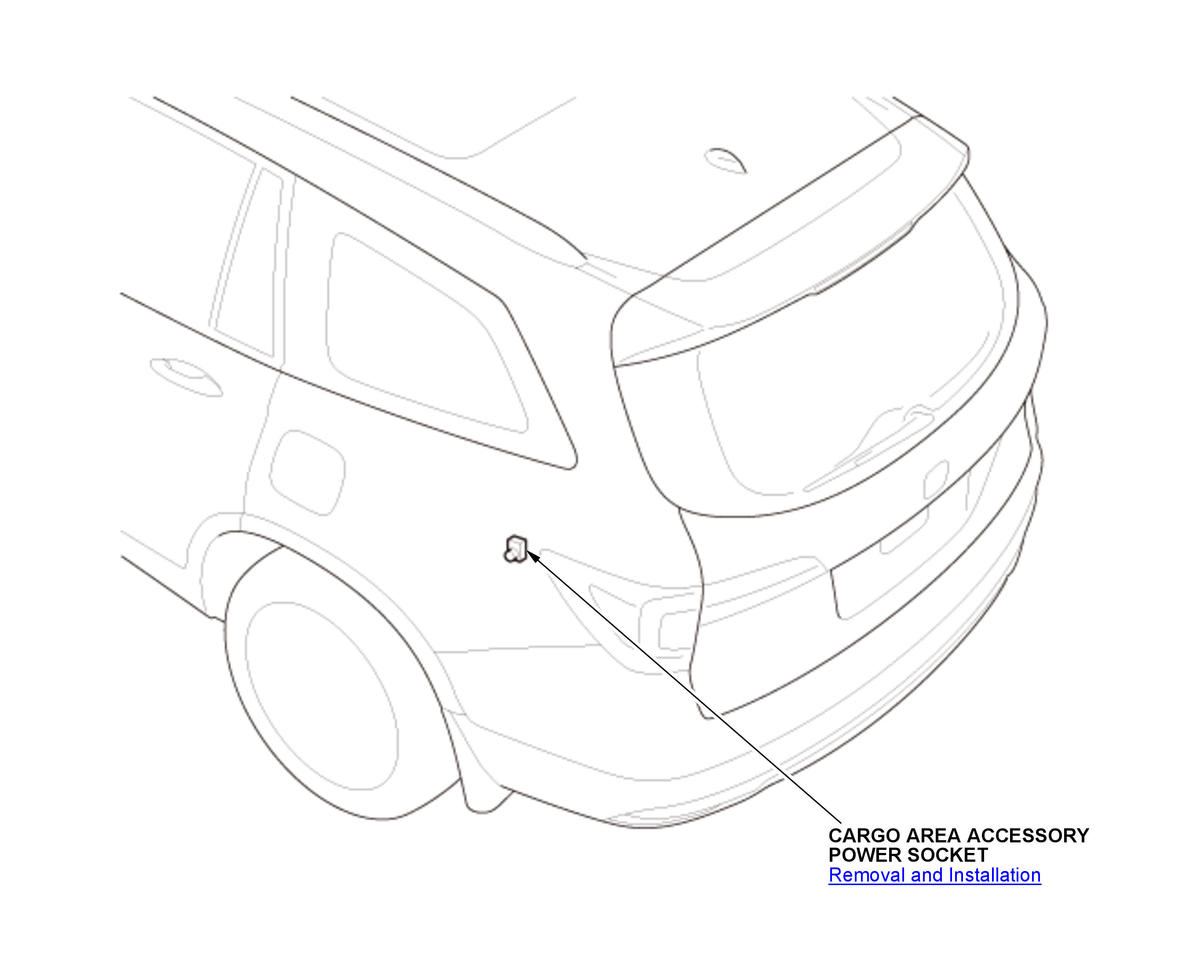

Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
