Drive Belt: Inspection

Drive Belt - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Inspect the drive belt for cracks or damage. If the drive belt is cracked or damaged, replace the drive belt. Go to:Drive Belt - Removal And Installation .

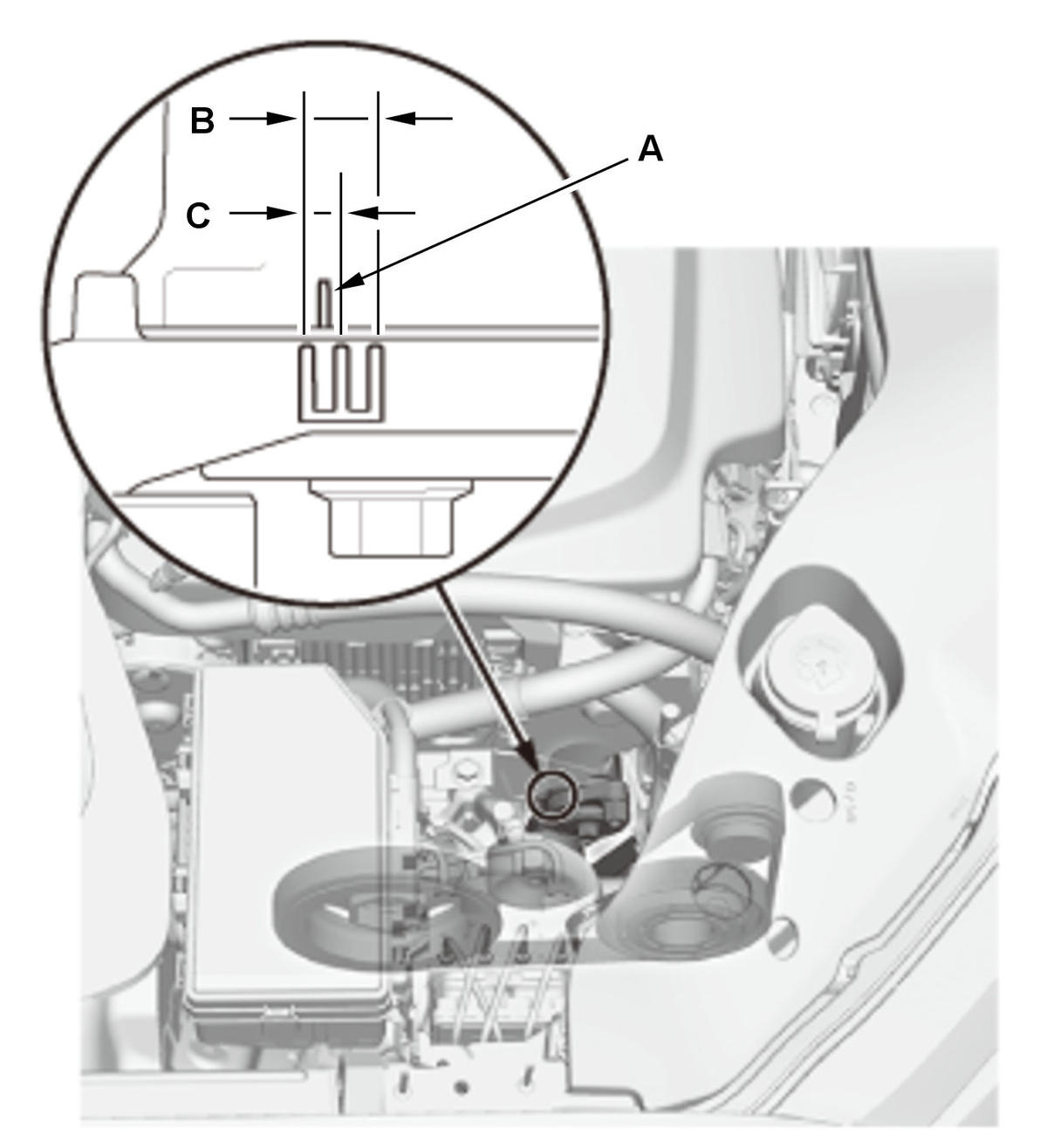

2. Check that the position of the drive belt auto-tensioner indicator pointer (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt. Refer to:
Drive Belt - Removal And Installation
NOTE: When replaced a new drive belt, check the position of the drive belt auto-tensioner indicator pointer is within the standard range (C) as shown.

Maintenance Minder™ - Reset (With Maintenance Minder™ System)

1. If the Maintenance Minder™ required to inspect the drive belt, reset the Maintenance Minder™ with the gauge -
Refer to:
Maintenance Minder™ General Information (KA/KC) (2016 2017 2018) or
Maintenance Minder™ General Information (KA/KC) (2019 2020 2021) .
(see "Resetting the Maintenance Minder").
