Power Mirror Switch: Test

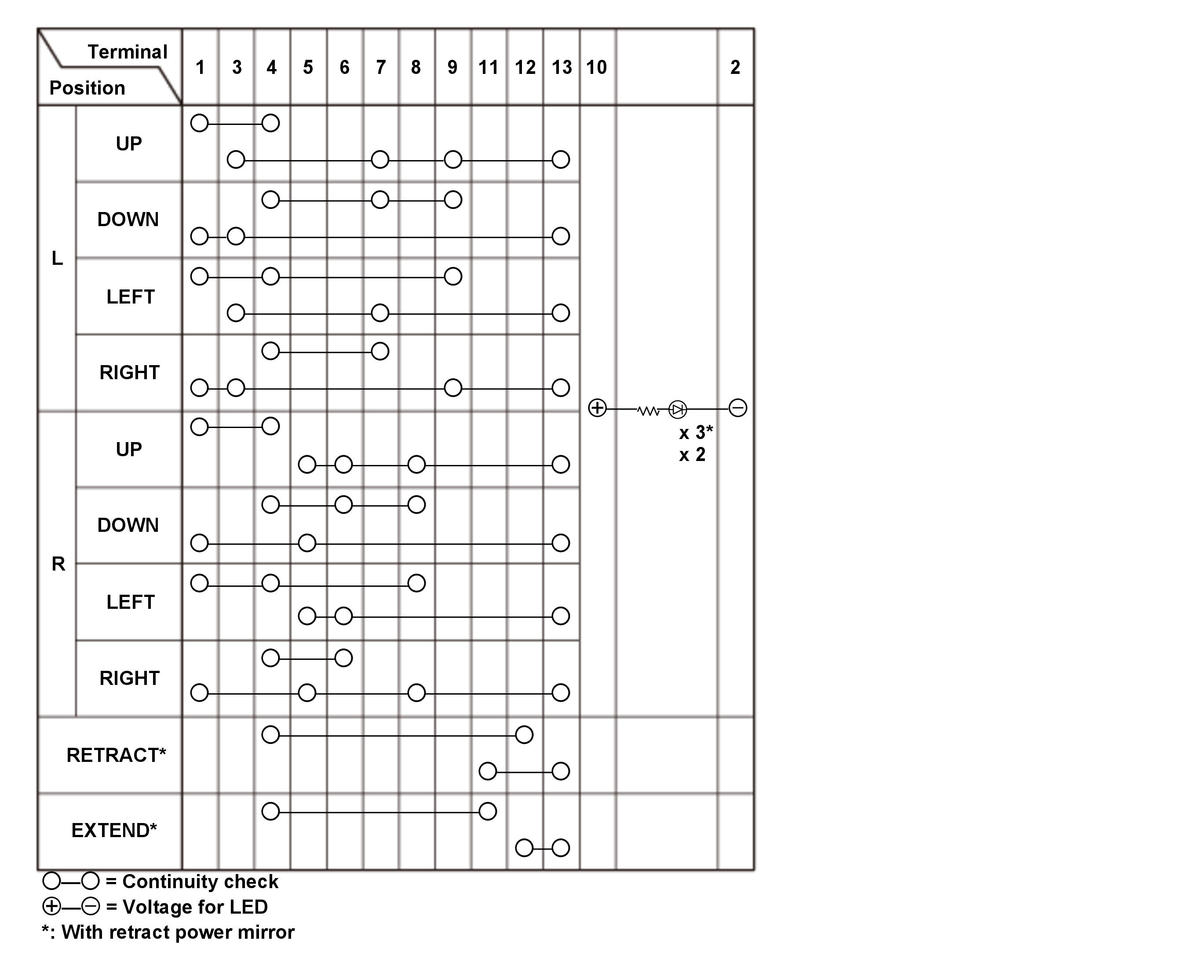

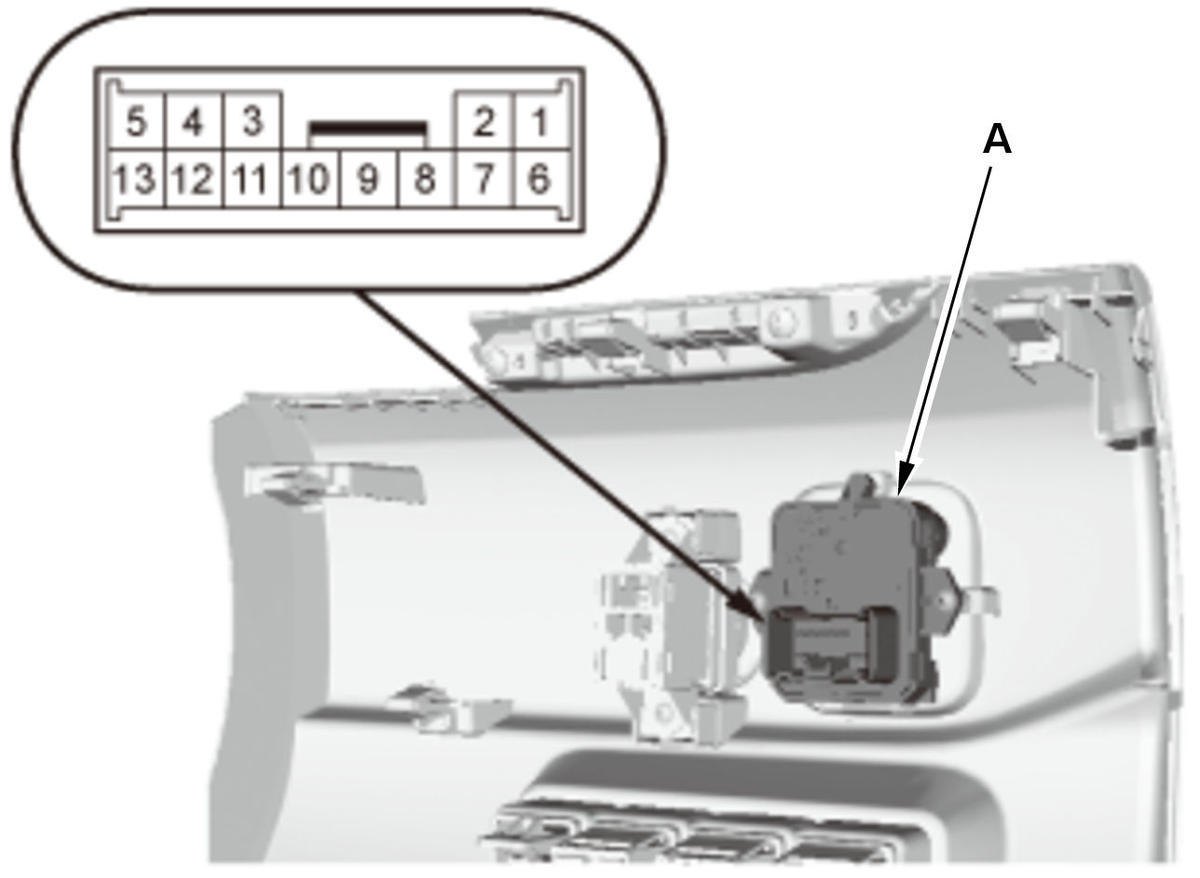

1. Check the power mirror switch (A) according to the table.

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the power mirror switch. Go to: Power Mirror Switch - Removal and Installation .
