Engine Mount Control Unit Connector for Inputs and Outputs

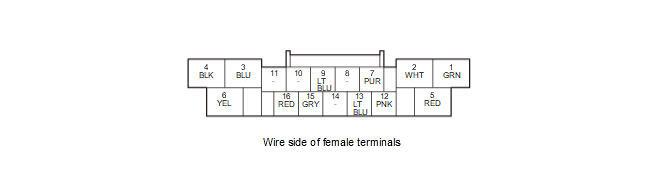

Engine Mount Control Unit 16P Connector
| Cavity | Terminal Name | Connects to |
|---|---|---|
| 1 | ACM SOL R- | Rear engine mount actuator |
| 2 | ACM SOL R+ | Rear engine mount actuator |
| 3 | ACM SOL F+ | Front engine mount actuator |
| 4 | PGND | Body ground to G201 |
| 5 | ACM SOL F- | Front engine mount actuator |
| 6 | IG SOL | Active control engine mount (ACM) control relay |
| 7 | TDC OUT | PCM (TDC OUT) |
| 8 | Not used | |
| 9 | IG1 ACM(DC/DC) | DC-DC converter IG1 relay 2 |
| 10 | Not used | |
| 11 | Not used | |
| 12 | CRK OUT | PCM (CRK OUT) |
| 13 | F-CAN B_H | PCM (F-CAN B_H) |
| 14 | Not used | |
| 15 | F-CAN B_L | PCM (F-CAN B_L) |
| 16 | SOL RLY | Active control engine mount (ACM) control relay |
