Fuse/Relay Box Connector Locations

Under-Hood Fuse/Relay Box (A)

Socket	Ref	Terminal	Connects to
Not used	2	3	---
Relay circuit board connector A	5	10	Right engine compartmentwire harness
Relay circuit board connector B	4	16	Right engine compartmentwire harness
T1	3	---	Starter cable
T101	1	---	Engine wire harness

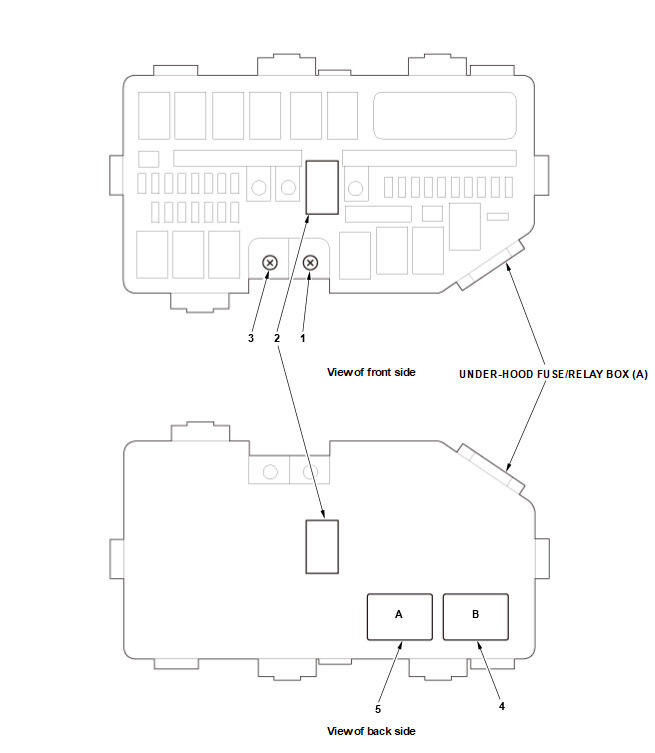

Fig 1: Under-Hood Fuse/Relay Box (A) Component Locations

Courtesy of HONDA, U.S.A., INC.

Auxiliary Under-Hood Fuse/Relay Box (B)

Socket	Ref	Terminals	Connects to	Notes
T2	1	---	Left engine compartment wire harness
T3	2	---	Left engine compartment wire harness

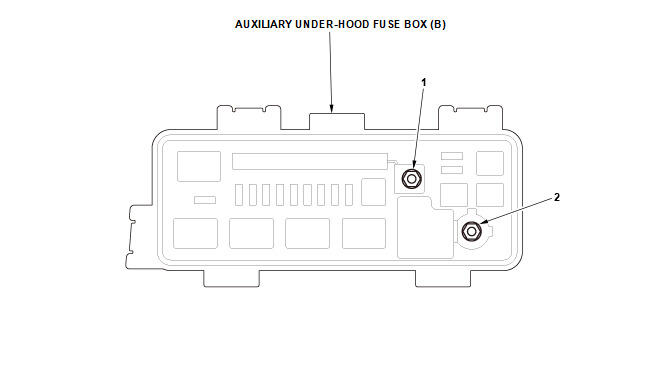

Fig 2: Auxiliary Under-Hood Fuse/Relay Box (B) Component Locations

Courtesy of HONDA, U.S.A., INC.

Under-Dash Fuse/Relay Box (C)

Socket	Ref	Terminal	Connects to
B (optional connector 2)	1	4	Not used
C (optional connector 1)	2	8	Not used
D	3	44	Floor wire harness
E	4	36	Left engine compartment wire harness
F	5	18	Left engine compartment wire harness
G	6	2	Dashboard wire harness
H	7	13	Dashboard wire harness
K	8	4	Not used
M	9	12	Dashboard wire harness
N	15	20	Dashboard wire harness
P	10	24	Dashboard wire harness
Q	11	10	Dashboard wire harness
R	14	16	Dashboard wire harness
S	13	18	Dashboard wire harness
T	12	10	Dashboard wire harness

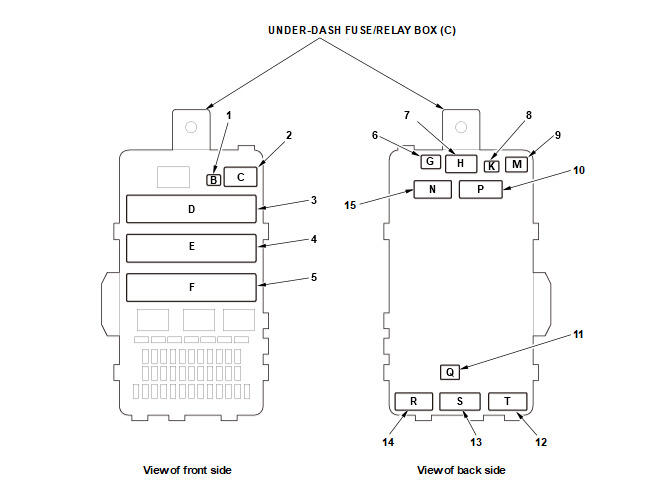

Fig 3: Under-Dash Fuse/Relay Box (C) Component Locations

Courtesy of HONDA, U.S.A., INC.
