Power Window Master Switch Connector for Inputs and Outputs

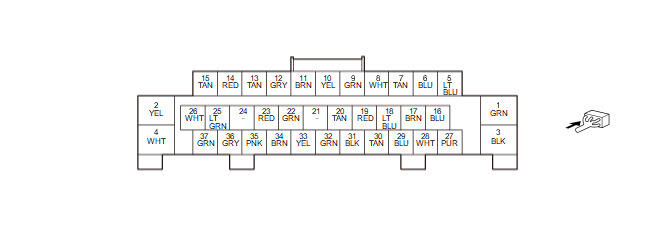

Power Window Master Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	DR DN	Drives driver's power window motor	When driver's power window motor DOWN operation: about battery voltageIf none of above conditions are met: less than 0.2 V
2	DR UP	Drives driver's power window motor	When driver's power window motor UP operation: about battery voltageIf none of above conditions are met: less than 0.2 V
3	PGND	Ground for power window master switch	Less than 0.2 V at all times
4	+B DR P/W	Power source for door multiplex control unit	About battery voltage at all times
5	R/C MIRR MTR (L-UD)	Detects R/C MIRR MTR (L-UD) signal	When vehicle in ON mode: about 0 V or 5 V (depending on power mirror switch position)
6	R-LR	Detects R-LR signal	With power mirror selector switch in R position: less than 0.2 V
7	R-UD	Detects R-UD signal	With power mirror selector switch in R position: less than 0.2 V
8	RETRA DR CLOSE	Drives retract actuator	When vehicle in ON mode and power mirror retract operation: about battery voltageIf none of above conditions are met: less than 0.2 V
9	RETRA DR OPEN	Drives retract actuator	When vehicle in ON mode and power mirror extend operation: about battery voltageIf none of above conditions are met: less than 0.2 V
10	M-IND1	Outputs M-IND1 signal	Indicator 1 ON: pulse (depending on indicator brightness)Indicator 1 OFF: less than 0.2 V
11	RETRA SW	Outputs RETRA SW signal	With vehicle in ON mode and power mirror retract switch in EXTEND position: less than 0.2 VWith vehicle in ON mode, and power mirror retract switch in RETRACT position: about battery voltage
12	M-IND2	Outputs M-IND2 signal	Indicator 2 ON: pulse (depending on indicator brightness)Indicator 2 OFF: less than 0.2 V
13	DR SVCC	Outputs DR SVCC signal	With door multiplex control unit is wakeup mode: about battery voltageWith door multiplex control unit is sleep mode: less than 0.2 V
14	FUEL LID SW+	Detects FUEL LID SW+ signal	With fuel fill door opener switch OFF: about battery voltageWith fuel fill door opener switch ON: less than 0.2 V
15	L HEAT MIR	Outputs L HEAT MIR signal	With mirror defogger ON mode: about battery voltage
16	RL RLY UP	Drives left rear power window motor	With left rear power window moving to UP using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V
17	DR PLSA	DR PLSA signal	---
18	RR RLY UP	Drives right rear power window motor	With right rear power window moving to UP using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V
19	DR PLSB	DR PLSB signal	---

Terminal number	Terminal name	Description	Signal
20	M-SET	Detects M-SET signal	With driving position memory set switch ON: less than 0.2 VWith driving position memory set switch OFF: about battery voltage
21	Not used	---	---
22	M-POS1	Detects M-POS1 signal	With driving position memory switch 1 ON: less than 0.2 VWith driving position memory switch 1 OFF: about battery voltage
23	M-POS2	Detects M-POS2 signal	With driving position memory switch 2 ON: less than 0.2 VWith driving position memory switch 2 OFF: about battery voltage
24	Not used	---	---
25	IG2 A/C	IG2 power source	With vehicle in ON mode: about battery voltage
26	+B BACKUP	Power source for power window master switch	About battery voltage at all times
27	RL RLY DN	Drives left rear power window motor	With left rear power window moving to DOWN using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V
28	B-CAN_H	Communication line	---
29	RR RLY DN	Drives right rear power window motor	With right rear power window moving to DOWN using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V
30	B-CAN_L	Communication line	---
31	GND	Ground for power window master switch	Less than 0.2 V at all times
32	DR SILCON UNLOCK	Detects DR SILCON UNLOCK signal	With driver's door lock knob switch LOCK: about battery voltageWith driver's door lock knob switch UNLOCK: less than 0.2 V
33	DR SILCON LOCK	Detects DR SILCON LOCK signal	With driver's door lock knob switch UNLOCK: about battery voltageWith driver's door lock knob switch LOCK: less than 0.2 V
34	DR K/CYL UNLOCK	Detects DR K/CYL UNLOCK signal	With driver's door key cylinder switch LOCK: about battery voltageWith driver's door key cylinder switch UNLOCK: less than 0.2 V
35	DR K/CYL LOCK	Detects DR K/CYL LOCK signal	With driver's door key cylinder switch UNLOCK: about battery voltageWith driver's door key cylinder switch LOCK: less than 0.2 V
36	LIN(WINDOW)	Communication line	---
37	ILLUMI+PW	Detects ILLUMI+PW signal	With combination light switch PARKING: about battery voltageWith combination light switch OFF: less than 0.2 V
