Power Lumbar Support Motor Test: Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Driver's Seat Recline Cover - Remove
   NOTE: If you are removing the driver's seat recline cover, you do not need to remove the driver's seat.
2. Power Lumbar Support Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

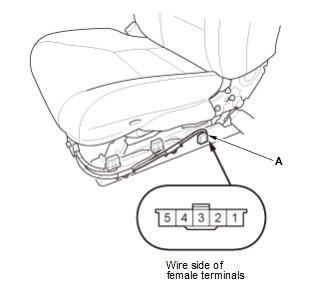

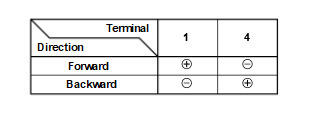

   1. Test the motor by applying power and ground at the power lumbar support switch connector (A) on the seat harness side according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 2. If the motor does not run or fails to run smoothly, remove the driver's seat-back cover/pad as needed , go to step 3.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

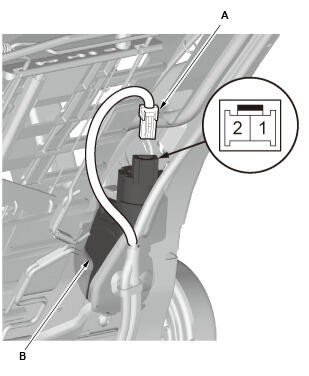

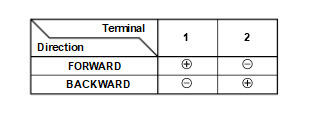

   3. Disconnect the connector (A). 4. Test the power lumbar support motor by applying 12 volt battery power and ground to the terminals according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 5. If the motor does not run or fails to run smoothly, the motor is faulty; replace the power lumbar support assembly (B).If the motor runs smoothly, replace the driver's seat wire harness.

3. All Parts Removed - Install

   1. Install the parts in the reverse order of removal.
