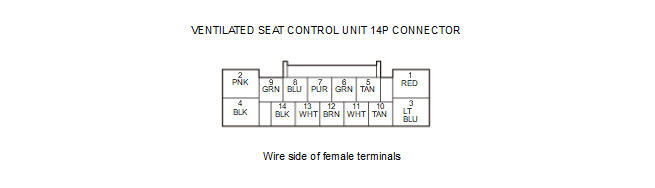

| 1 |
DR HT |
Drives driver's seat heater |
With driver's seat heater operation: pulse (depending on driver's seat temperature) If none of above conditions are met: less than 0.2 V |
| 2 |
+B H/SEAT UNIT |
Power source for ventilated seat control unit |
With vehicle in ON mode: about battery voltage |
| 3 |
PS HT |
Drives passenger's seat heater |
With front passenger's seat heater operation: pulse (depending on front passenger's seat temperature) If none of above conditions are met: less than 0.2 V |
| 4 |
GND |
Ground for ventilated seat control unit |
Less than 0.2 V at all times |
| 5 |
PS FAN |
PS FAN signal |
When front passenger's seat blower motor operation: pulse (depending on front passenger's seat blower motor operation level) |
| 6 |
PS TH- |
PS TH- signal |
Less than 0.2 V at all times |
| 7 |
DR TH- |
DR TH- signal |
Less than 0.2 V at all times |
| 8 |
DR FAN |
DR-FAN signal |
--- |
| 9 |
IG1 METER(DC/DC) |
IG1 power source |
With vehicle in ON or START mode: about battery voltage |
| 10 |
B-CAN_L |
Communication line |
--- |
| 11 |
B-CAN_H |
Communication line |
--- |
| 12 |
PS TH+ |
PS TH+ signal |
With vehicle in ON mode: about 0.4 - 4.9 V (depending on front passenger's seat temperature) |
| 13 |
DR TH+ |
DR TH+ signal |
With vehicle in ON mode: about 0.4 - 4.9 V (depending on driver's seat temperature) |
| 14 |
GND |
Ground for ventilated seat control unit |
--- |
