Steering Heater Test: Test

NOTE:

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
The steering wheel heater is built into the steering wheel.
How to read the torque specifications .

Steering Heater - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

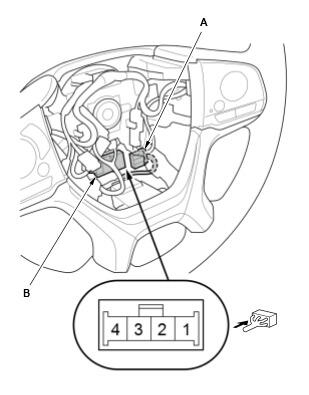

1. Disconnect the connector (A).

2. Check for continuity between the terminals according to the table. There should be continuity.

NOTE: When the steering heater temperature is 73 deg.F (23 deg.C), resistance value is 2.0

Courtesy of HONDA, U.S.A., INC.

0.20 Ohm.

3. If the continuity is not as specified, the steering heater (B) is faulty; replace the steering wheel assembly

All Remove Parts - Install

1. Install the parts in the reverse order of removal.
