Wheel Speed Sensor

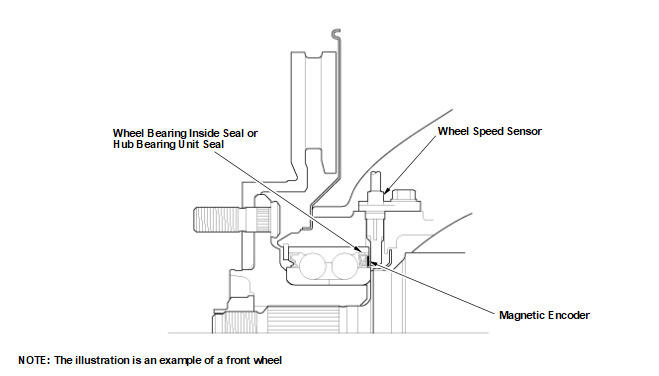

The VSA system uses 4 wheel speed sensors to monitor individual wheel speed. The wheel speed sensor is a semiconductor, Hall effect sensor, installed on the inner sealing surface of each hub and wheel bearing assembly. The frequency of the sensor output signal is proportional to the speed of the wheel and this signal information is sent to the VSA control unit.
