Automatic Transaxle - Service Information
>>
Removal and Installation
>>
Automatic Transmission Removal and Installation
>>

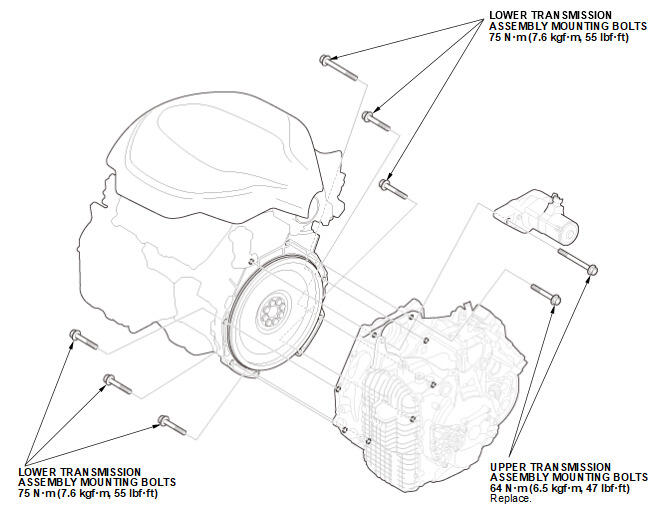

Exploded View
Exploded View

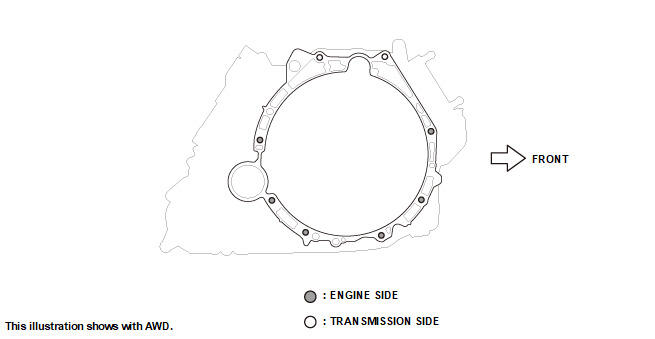

Transmission Assembly Mounting Bolt
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
