DTC Advanced Diagnostics: P058A (2024 2025)
DTC P058A : Battery Sensor Internal failure
General Description

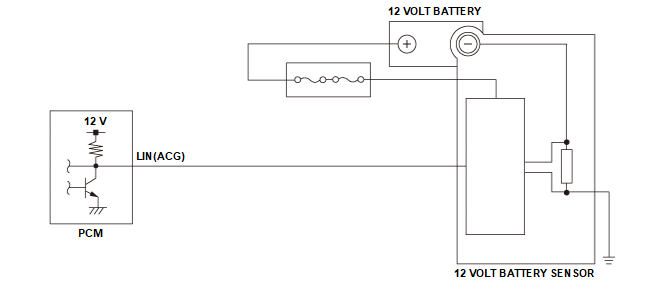

The 12 volt battery sensor is connected between the 12 volt battery and ground. The 12 volt battery sensor measures the 12 volt battery's current, voltage, and temperature. The measured value is sent to the powertrain control module (PCM) via the local interconnect network (LIN) line by the request of the PCM. The 12 volt battery sensor has a self diagnostic function and sends the results to the PCM via the LIN line. If the diagnostic results are outside the normal range, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 10 seconds or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [BATTERY] (After the vehicle condition is turned to the ON mode) | 10.0 V | - |
| Elapsed time after the vehicle condition is turned to the ON mode | 3 seconds | - |
[ ]: HDS Parameter
Malfunction Threshold
The self diagnosis result of the 12 volt battery sensor detects an abnormal for at least 10 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- 12 volt battery sensor internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
