DTC P16E5

DTC P16E5  : LIN Communication Error (PCM-DC-DC Converter)

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS, and wait 10 seconds.

   -3. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E5 LIN Communication Error (PCM-DC-DC Converter)

   Is DTC P16E5 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the DC-DC converter and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. DTC check

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E2 PGM-FI - ACG LIN Communication Error

   Is DTC P16E2 indicated?

   YES

   Go to step 3.

   NO

   Go to step 7.

3. Determine possible failure area (LIN (ACG) line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   DC-DC converter connector A (3P)

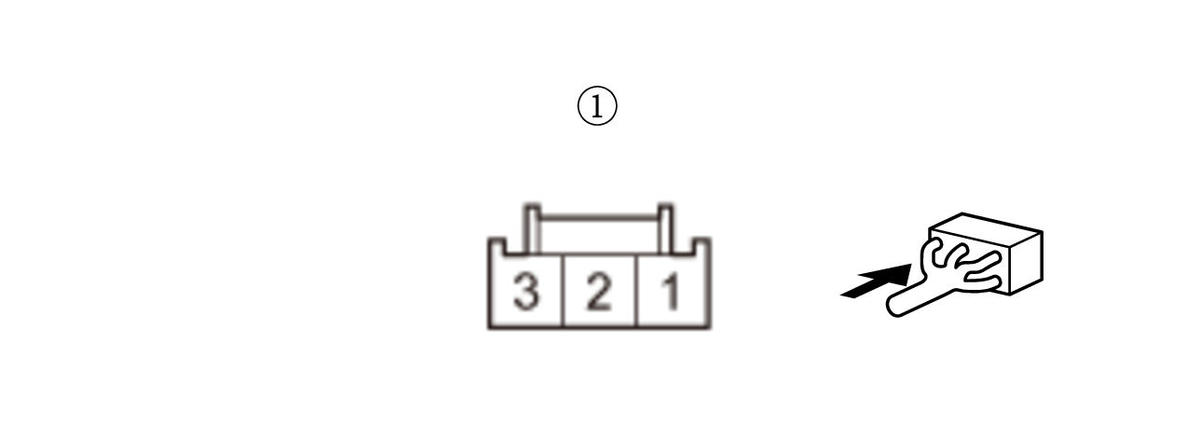

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	DC-DC converter connector A (3P): disconnected
   Test point 1	DC-DC converter connector A (3P) (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 4.

   NO

   Go to step 5.

4. Shorted wire check (LIN (ACG)/LIN line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Continue to check for continuity between DC-DC converter connector A (3P) terminal No. 1 and body ground, while disconnecting these connectors, one at a time:

   • PCM connector A (50P)
   • Alternator 1P connector
   • 12 volt battery fan motor 3P connector
   • Shutter grille 4P connector (with shutter grille system)

   Does continuity go away when one of the above connectors is disconnected?

   YES

   The LIN (ACG)/LIN wire is OK. Replace the part that caused an open when it was disconnected.

   NO

   Repair a short in the LIN (ACG)/LIN wire between the PCM (A24), the DC-DC converter, the alternator, the 12 volt battery fan motor, and the shutter grille.

5. Determine possible failure area (DC-DC converter, others)

   -1. Reconnect the following connector.

   DC-DC converter connector A (3P)

   -2. Disconnect the following connector.

   Alternator 1P connector

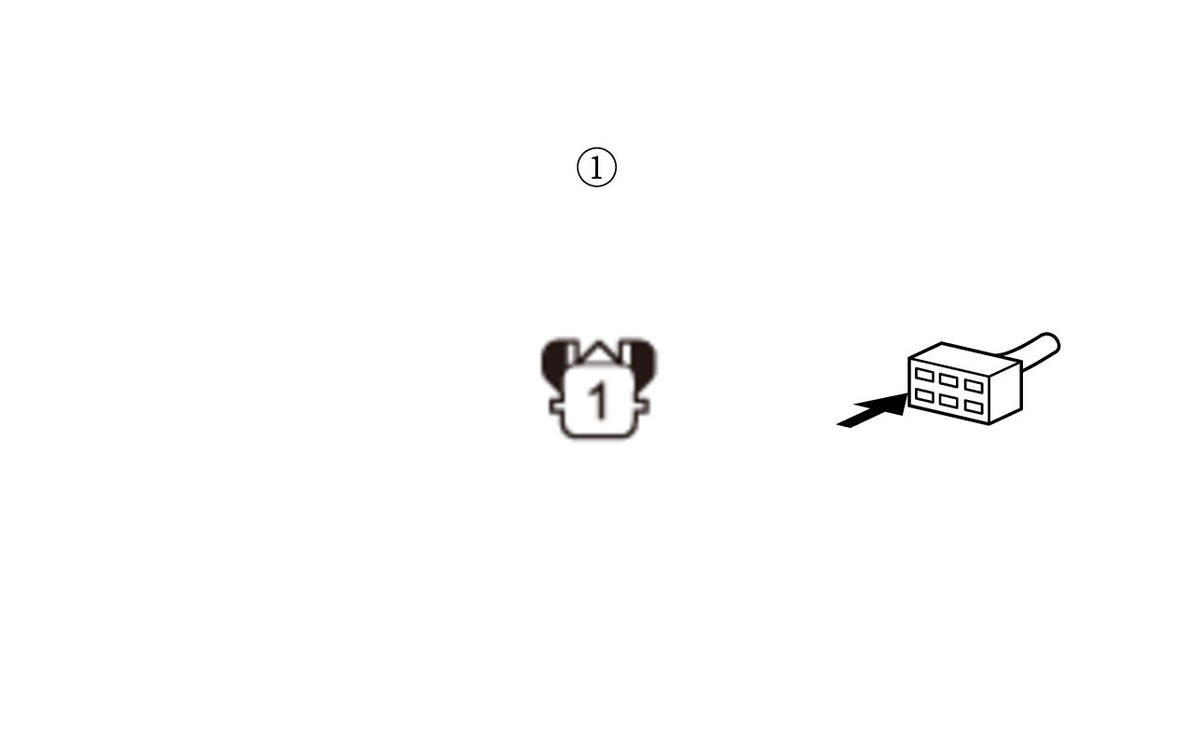

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   Test point 1	Alternator 1P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the DC-DC converter .

   NO

   Go to step 6.

6. Open wire check (LIN (ACG) line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connectors.

   PCM connector A (50P)

   DC-DC converter connector A (3P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   	PCM connector A (50P): disconnected
   	DC-DC converter connector A (3P): disconnected
   Test point 1	DC-DC converter connector A (3P) (female terminals) No. 1:
   Test point 2	PCM connector A (50P) No. 24

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LIN (ACG) wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P16E5 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the LIN (ACG) wire between the PCM (A24) and the DC-DC converter.

7. Fuse check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the following fuse.

   Fuse	No. C34 (15 A)
   Location	Under-dash fuse/relay box

   Is the fuse OK?

   YES

   Go to step 8.

   NO

   Repair a short in the IG1 ACG wire between the No. C34 (15 A) fuse and the DC-DC converter. Also replace the No. C34 (15 A) fuse.

8. Open wire check (IG1 ACG line)

   -1. Disconnect the following connector.

   DC-DC converter connector A (3P)

   -2. Turn the vehicle to the ON mode.

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	DC-DC converter connector A (3P): disconnected
   Test point 1	DC-DC converter connector A (3P) (female terminals) No. 3:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 9.

   NO

   Repair an open in the IG1 ACG wire between the No. C34 (15 A) fuse in the under-dash fuse/relay box and the DC-DC converter.

9. Open wire check (LIN (ACG) line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector A (50P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	DC-DC converter connector A (3P): disconnected
   	PCM connector A (50P): disconnected
   Test point 1	DC-DC converter connector A (3P) (female terminals) No. 1:
   Test point 2	PCM connector A (50P) No. 24

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LIN (ACG) wire is OK. Replace the DC-DC converter .

   NO

   Repair an open in the LIN (ACG) wire between the PCM (A24) and the DC-DC converter.
