DTC P0557

DTC P0557  : Brake Booster Pressure Sensor A Circuit Low Voltage

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC (EVPS)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current Condition
   	Values	Unit	Values	Unit
   BRAKE BOOSTER PRESSURE SENSOR (A) VOLTAGE	Less than 0.43	V

   Do the current condition (s) match the threshold?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the brake booster pressure sensor and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .

2. Determine possible failure area (GCU MON line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Brake booster pressure sensor 3P connector

   -3. Turn the vehicle to the ON mode.

   -4. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current Condition
   	Values	Unit	Values	Unit
   BRAKE BOOSTER PRESSURE SENSOR (A) VOLTAGE	About 5.0	V

   Do the current condition (s) match the threshold?

   YES

   Go to step 3.

   NO

   Go to step 5.

3. Brake booster pressure sensor check

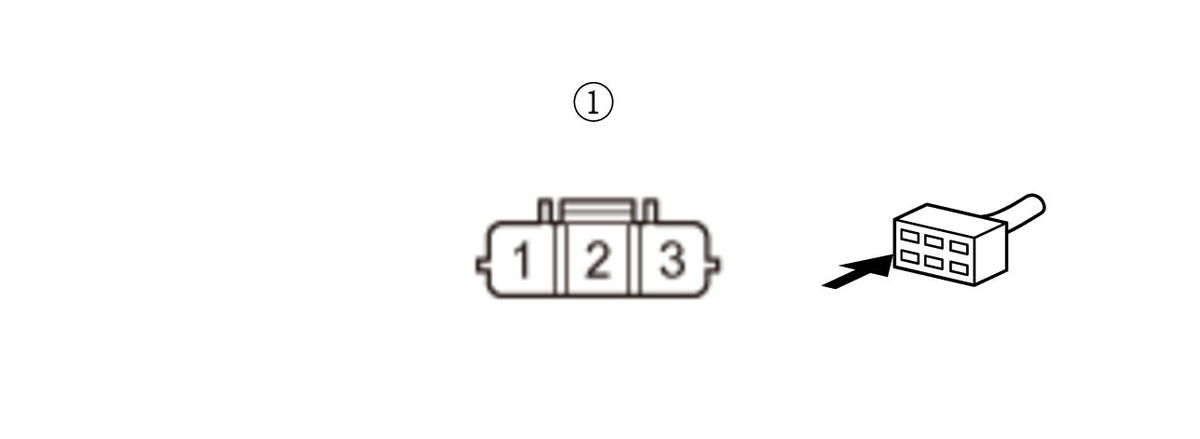

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Brake booster pressure sensor 3P connector: disconnected
   Test point 1	Brake booster pressure sensor 3P connector (female terminals) No. 1:
   Test point 2	Brake booster pressure sensor 3P connector (female terminals) No. 3:

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the brake booster .

   NO

   Go to step 4.

4. Open wire check (VCC6/VCC2 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait for more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Brake booster pressure sensor 3P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	Brake booster pressure sensor 3P connector (female terminals) No. 3:
   Test point 2	PCM connector E (80P) No. 76

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM .

   NO

   Repair an open in the VCC6/VCC2 wire between PCM connector E (80P) terminal No. 76 and the brake booster pressure sensor.

5. Shorted wire check (GCU MON line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait for more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector A (50P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Brake booster pressure sensor 3P connector: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	Brake booster pressure sensor 3P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the GCU MON wire between PCM connector A (50P) terminal No. 21 and the brake booster pressure sensor.

   NO

   Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM .
