DTC P0555

DTC P0555  : Brake Booster Pressure Sensor A Circuit High Voltage

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC Description DTC Freeze Frame
P0555 Brake Booster Pressure Sensor A Circuit High Voltage

DTC (EVPS)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Check the parameter (s) below with the HDS.

    Signal Threshold Current Condition
    Values Unit Values Unit
    BRAKE BOOSTER PRESSURE SENSOR (A) VOLTAGE More than 4.71 V

    Do the current condition (s) match the threshold?

    YES

    Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the brake booster pressure sensor and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .

  2. Determine possible failure area (GCU MON line, others) 1

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Brake booster pressure sensor 3P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Brake booster pressure sensor 3P connector: disconnected
    Test point 1 Brake booster pressure sensor 3P connector (female terminals) No. 1:
    Test point 2 Brake booster pressure sensor 3P connector (female terminals) No. 2:
    GHH443349Courtesy of HONDA, U.S.A., INC.

    Is there 4.8 V or more?

    YES

    Go to step 3.

    NO

    Go to step 5.

  3. Shorted wire check (GCU MON line to power)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait for more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector A (50P)

    -4. Turn the vehicle to the ON mode.

    -5. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Brake booster pressure sensor 3P connector: disconnected
      PCM connector A (50P): disconnected
    Test point 1 Brake booster pressure sensor 3P connector (female terminals) No. 2:
    Test point 2 Body ground
    GHH443351Courtesy of HONDA, U.S.A., INC.

    Is there 0.5 V or more?

    YES

    Repair a short to power in the GCU MON wire between PCM connector A (50P) terminal No. 21 and the brake booster pressure sensor.

    NO

    Go to step 4.

  4. Brake booster pressure sensor check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Substitute a known-good brake booster .

    -3. Reconnect the following connectors.

    Brake booster pressure sensor 3P connector
    PCM connector A (50P)

    -4. Turn the vehicle to the ON mode.

    -5. Clear the DTC with the HDS.

    -6. Turn the vehicle to the OFF (LOCK) mode, then ON mode.

    -7. Check for DTCs with the HDS.

    DTC Description DTC Freeze Frame
    P0555 Brake Booster Pressure Sensor A Circuit High Voltage

    Is DTC P0555 indicated?

    YES

    Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM .

    NO

    Replace the original brake booster .

  5. Determine possible failure area (GCU MON line, others) 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Connect terminals 1 and 2 with a jumper wire.

    Terminal 1 Brake booster pressure sensor 3P connector (female terminals) No. 2:
    Terminal 2 Body ground
    GHH443353Courtesy of HONDA, U.S.A., INC.

    -3. Turn the vehicle to the ON mode.

    -4. Check the parameter (s) below with the HDS.

    Signal Threshold Current Condition
    Values Unit Values Unit
    BRAKE BOOSTER PRESSURE SENSOR (A) VOLTAGE Less than 0.1 V

    Do the current condition (s) match the threshold?

    YES

    Go to step 6.

    NO

    Go to step 8.

  6. Brake booster pressure sensor check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Connect terminals 1 and 2 with a jumper wire.

    Terminal 1 Brake booster pressure sensor 3P connector (female terminals) No. 1:
    Terminal 2 Brake booster pressure sensor 3P connector (female terminals) No. 2:

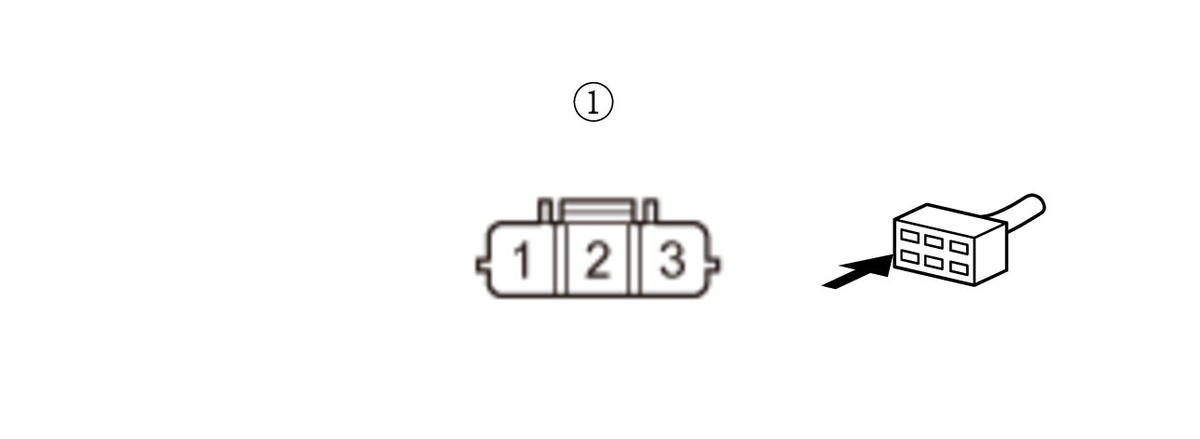

    GHH443356Courtesy of HONDA, U.S.A., INC.

    -3. Check the parameter (s) below with the HDS.

    Signal Threshold Current Condition
    Values Unit Values Unit
    BRAKE BOOSTER PRESSURE SENSOR (A) VOLTAGE Less than 0.1 V

    Do the current condition (s) match the threshold?

    YES

    Replace the brake booster .

    NO

    Go to step 7.

  7. Open wire check (SG6/SG2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire from the brake booster pressure sensor 3P connector.

    -3. Jump the SCS line with the HDS, and wait for more than 1 minute.

    -4. Disconnect the following connector.

    PCM connector E (80P)

    -5. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Brake booster pressure sensor 3P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 Brake booster pressure sensor 3P connector (female terminals) No. 1:
    Test point 2 PCM connector E (80P) No. 58
    GHH443358Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM .

    NO

    Repair an open in the SG6/SG2 wire between PCM connector E (80P) terminal No. 58 and the brake booster pressure sensor.

  8. Open wire check (GCU MON line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire from the brake booster pressure sensor 3P connector.

    -3. Jump the SCS line with the HDS, and wait for more than 1 minute.

    -4. Disconnect the following connector.

    PCM connector A (50P)

    -5. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Brake booster pressure sensor 3P connector: disconnected
      PCM connector A (50P): disconnected
    Test point 1 Brake booster pressure sensor 3P connector (female terminals) No. 2:
    Test point 2 PCM connector A (50P) No. 21
    GHH443360Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM .

    NO

    Repair an open in the GCU MON wire between PCM connector A (50P) terminal No. 21 and the brake booster pressure sensor.
