DTC P0443  : EVAP Canister Purge Valve Circuit Malfunction

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Start the engine.

   -4. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0443 EVAP Canister Purge Valve Circuit Malfunction

   Is DTC P0443 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the EVAP canister purge valve and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Determine possible failure area (EVAP canister purge valve stuck open failure, EVAP canister purge valve stuck closed failure)

   -1. Turn the vehicle to the OFF (LOCK) mode, and allow the engine to cool below 122°F (50°C).

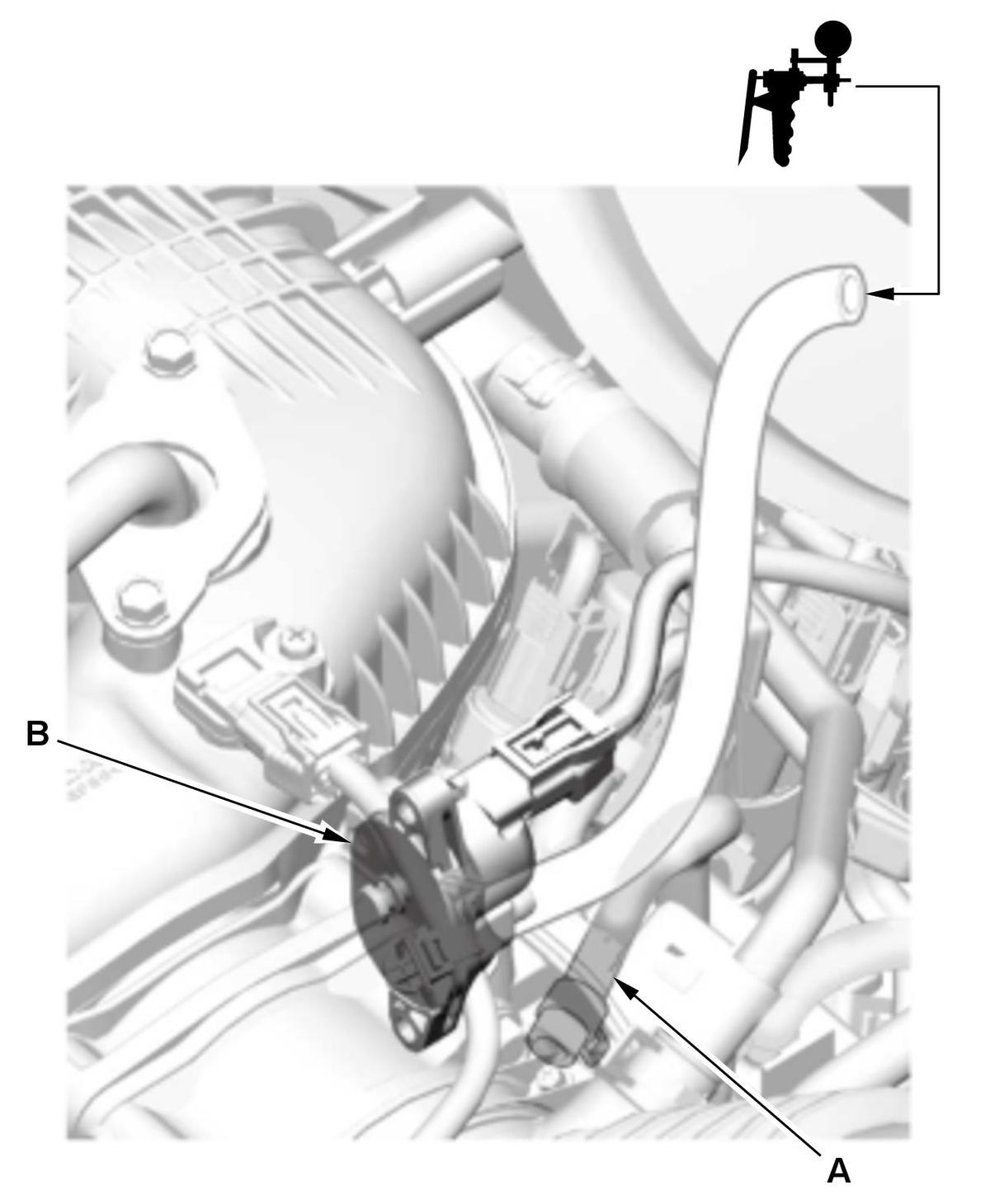

   -2. Disconnect the vacuum hose (purge line) (A) from the EVAP canister purge valve (B) in the engine compartment, then connect a vacuum pump/gauge, 0-30 inHg, to the EVAP canister purge valve as shown.

   Courtesy of HONDA, U.S.A., INC.

   -3. Start the engine, and let it idle.

   Is there vacuum?

   YES

   The EVAP canister purge valve is stuck open. Go to step 3.

   NO

   The EVAP canister purge valve is stuck closed. Go to step  5.

3. Determine possible failure area (EVAP canister purge valve, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   EVAP canister purge valve 2P connector

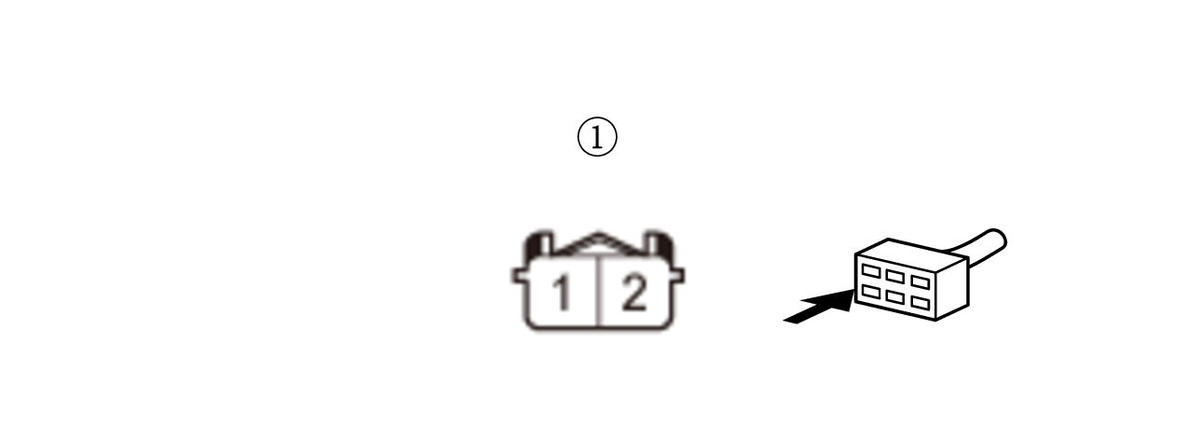

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EVAP canister purge valve 2P connector: disconnected
   Test point 1	EVAP canister purge valve 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 4.

   NO

   Replace the EVAP canister purge valve .

4. Shorted wire check (PCS line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connector.

   PCM connector E (80P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EVAP canister purge valve 2P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	EVAP canister purge valve 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the PCS wire between the PCM (E78) and the EVAP canister purge valve.

   NO

   The PCS wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0443 goes away and the PCM was substituted, replace the original PCM .

5. Open wire check (IG1 (VBSOL)/IG1 ACG line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   EVAP canister purge valve 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	EVAP canister purge valve 2P connector: disconnected
   Test point 1	EVAP canister purge valve 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The IG1 (VBSOL)/IG1 ACG wire is OK. Go to step 6.

   NO

   Repair an open in the IG1 (VBSOL)/IG1 ACG wire between the EVAP canister purge valve and the No. C34 (15 A) fuse in the under-dash fuse/relay box.

6. Open wire check (PCS line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EVAP canister purge valve 2P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	EVAP canister purge valve 2P connector (female terminals) No. 2:
   Test point 2	PCM connector E (80P) No. 78

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The PCS wire is OK. Go to step 7.

   NO

   Repair an open in the PCS wire between the PCM (E78) and the EVAP canister purge valve.

7. EVAP canister purge valve internal resistance check

   -1. At the EVAP canister purge valve side, measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EVAP canister purge valve 2P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	EVAP canister purge valve 2P connector (male terminals) No. 1 (valve side):
   Test point 2	EVAP canister purge valve 2P connector (male terminals) No. 2 (valve side):

   Courtesy of HONDA, U.S.A., INC.

   Is there about 23-26 Ω at room temperature?

   YES

   The EVAP canister purge valve is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0443 goes away and the PCM was substituted, replace the original PCM .

   NO

   Replace the EVAP canister purge valve .
