DTC P0333

DTC P0333  : Knock Sensor 2 (Bank 2) Circuit High Voltage

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0333 Knock Sensor 2 (Bank 2) Circuit High Voltage

   Is DTC P0333 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at knock sensor 2 (Bank 2) and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Determine possible failure area (knock sensor 2 (Bank 2), others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Knock sensor 2 (Bank 2) 2P connector

   -3. Turn the vehicle to the ON mode.

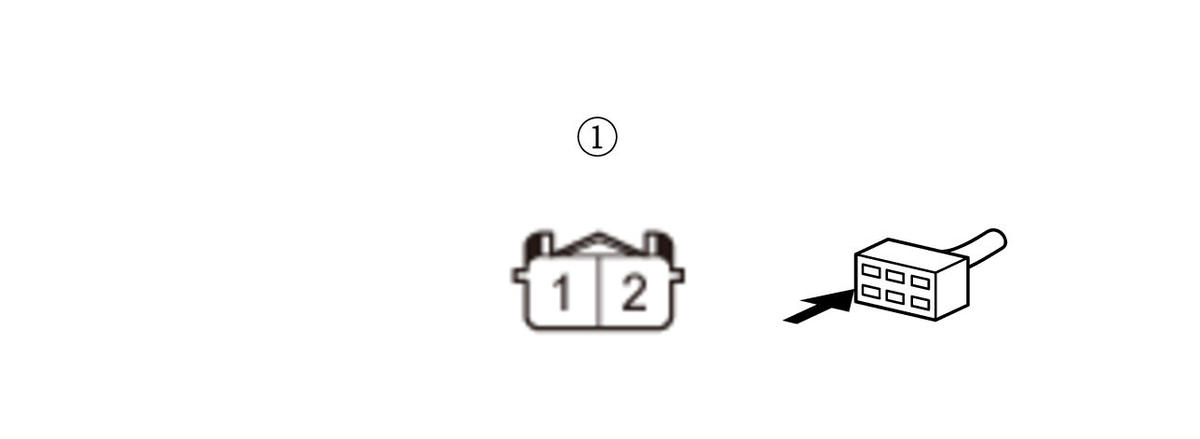

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Knock sensor 2 (Bank 2) 2P connector: disconnected
   Test point 1	Knock sensor 2 (Bank 2) 2P connector (female terminals) No. 1:
   Test point 2	Knock sensor 2 (Bank 2) 2P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5.0 V?

   YES

   Replace knock sensor 2 (Bank 2) .

   NO

   Go to step 3.

3. Determine possible failure area (KS B2/KSB2 line, others)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Knock sensor 2 (Bank 2) 2P connector: disconnected
   Test point 1	Knock sensor 2 (Bank 2) 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5.0 V?

   YES

   Go to step 5.

   NO

   Go to step 4.

4. Open wire check (KSB2/KS B2 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Knock sensor 2 (Bank 2) 2P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	Knock sensor 2 (Bank 2) 2P connector (female terminals) No. 2:
   Test point 2	PCM connector E (80P) No. 70

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The KSB2/KS B2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0333 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the KSB2/KS B2 wire between the PCM (E70) and knock sensor 2 (Bank 2).

5. Open wire check (KSSGB2 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Knock sensor 2 (Bank 2) 2P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	Knock sensor 2 (Bank 2) 2P connector (female terminals) No. 1:

   Test point 2

   PCM connector E (80P) No. 69

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The KSSGB2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0333 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the KSSGB2 wire between the PCM (E69) and knock sensor 2 (Bank 2).
