Transmission Oil Seal Replacement: Replacement

NOTE:

• Where icon is shown, further information shown below.
• Keep all foreign particles out of the transmission (e-CVT).
• Apply a light coat of clean ATF to the oil seal surface of the press-fit part and the lip part before installation.

Procedure

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

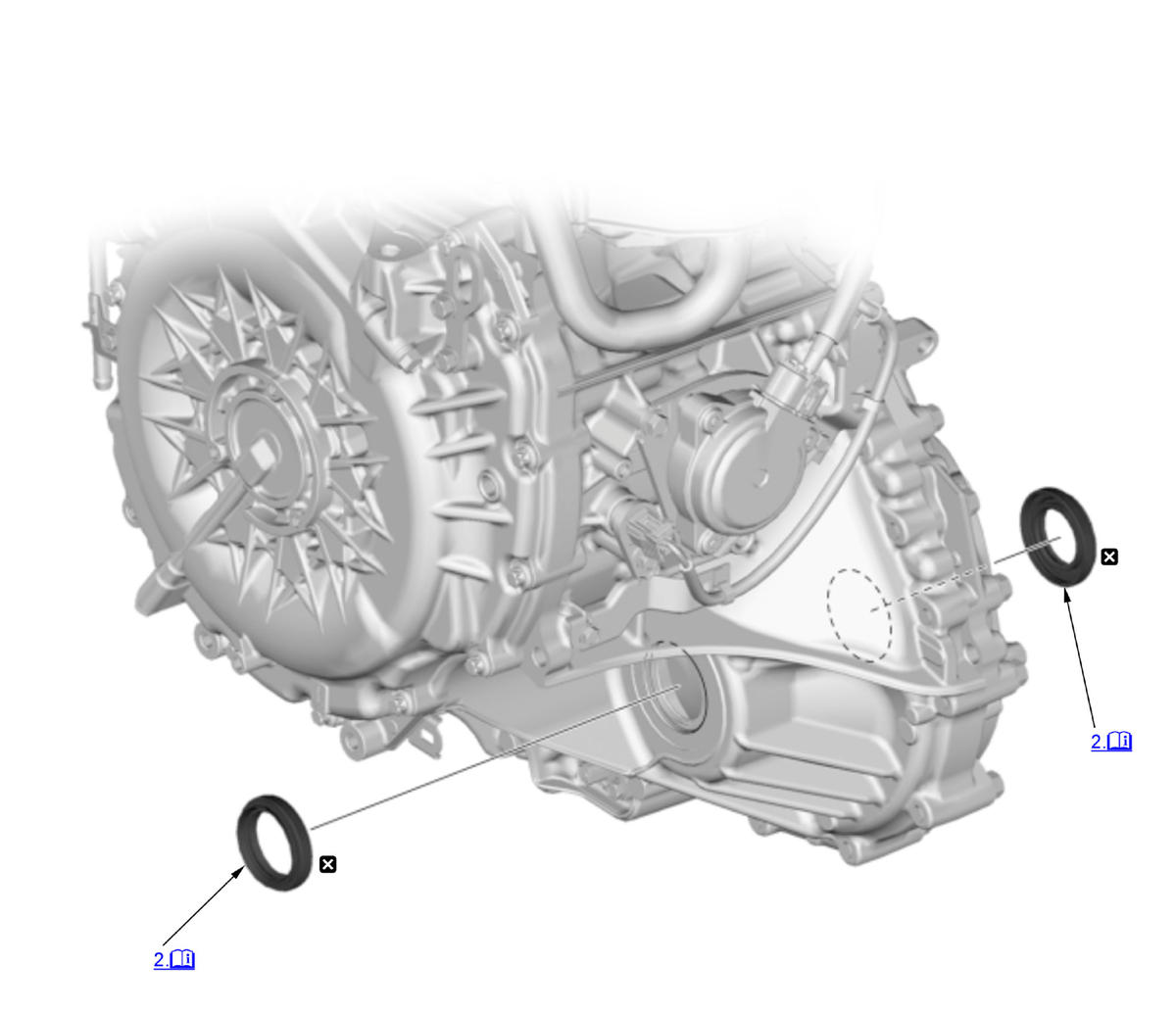

Driveshaft Oil Seal

1. Left Driveshaft Inboard Joint - Disconnect
2. Driveshaft Oil Seal - Replace

   Courtesy of HONDA, U.S.A., INC.

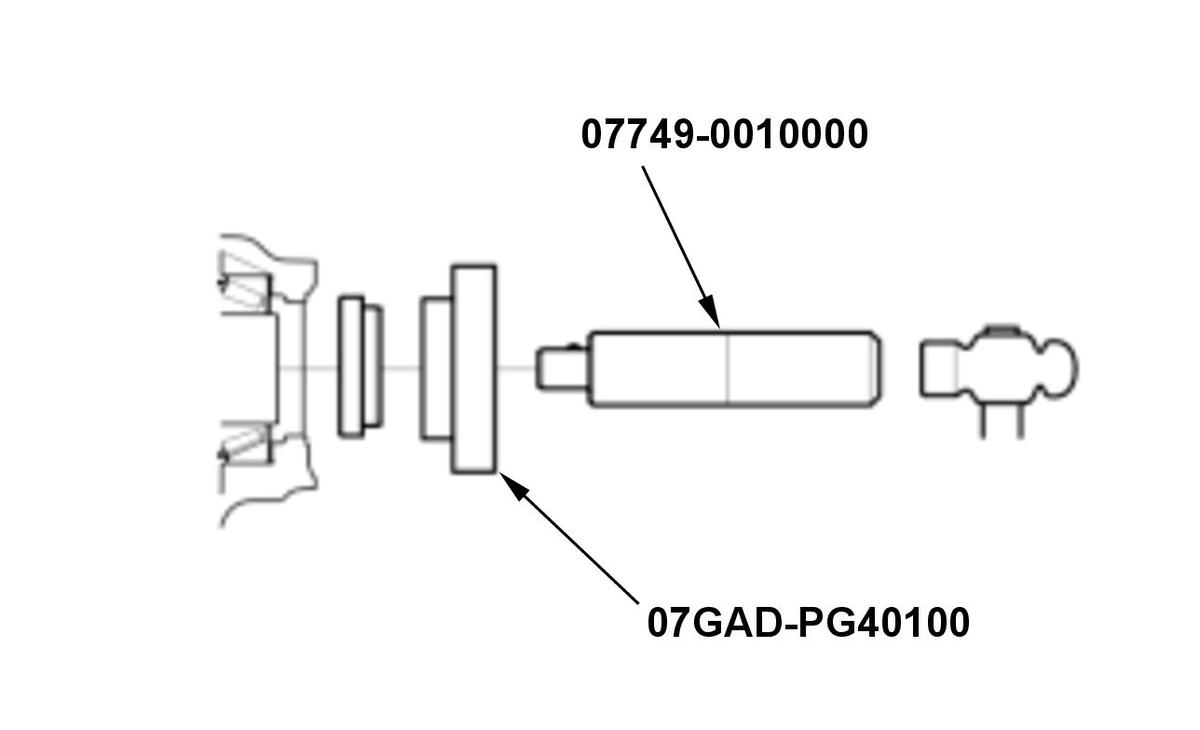

   1. Install the driveshaft oil seal flush with the transmission housing using the 15 x 135L driver handle and the oil seal driver attachment.

3. Left Driveshaft Inboard Joint - Connect

   Intermediate Shaft Oil Seal

4. Intermediate Shaft - Remove
5. Intermediate Shaft Oil Seal - Replace

   Courtesy of HONDA, U.S.A., INC.

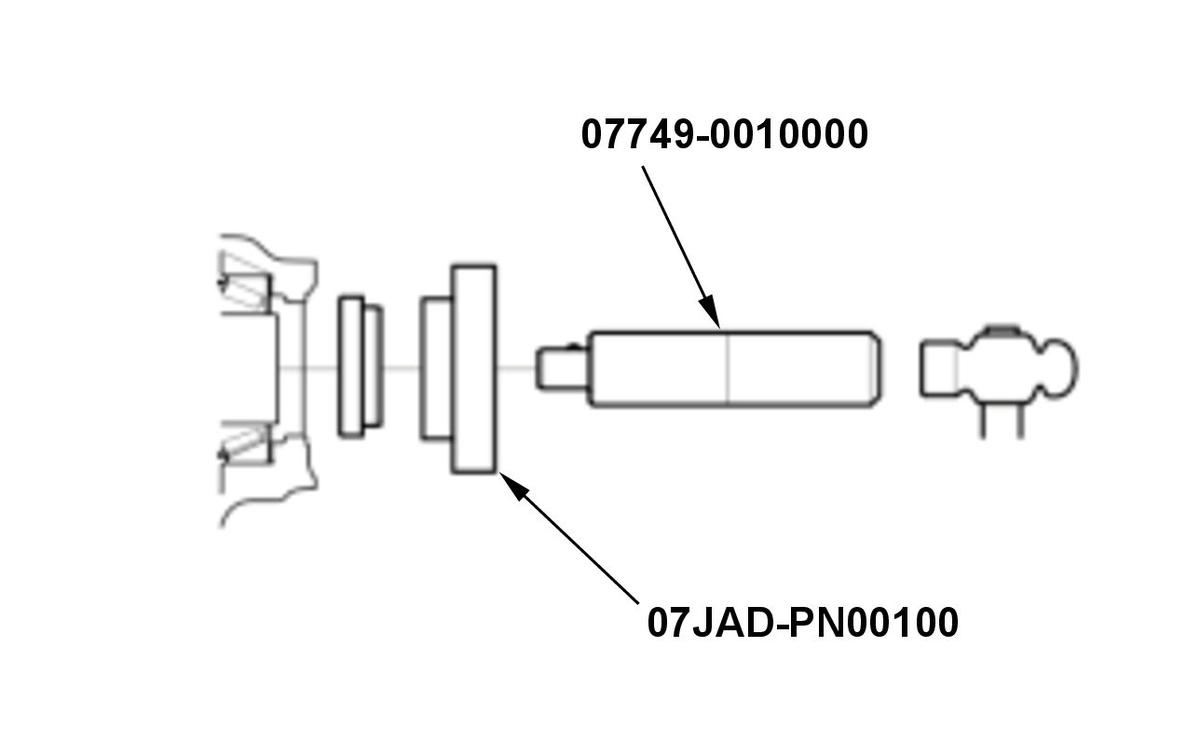

   1. Install the intermediate shaft oil seal flush with the flywheel housing using the 15 x 135L driver handle and the 64 x 72 mm oil seal driver attachment.

6. Intermediate Shaft - Install
