EV Switch: Test

  1. EV Switch - Test
    GHH384214GHH384215Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH384214GHH384215Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

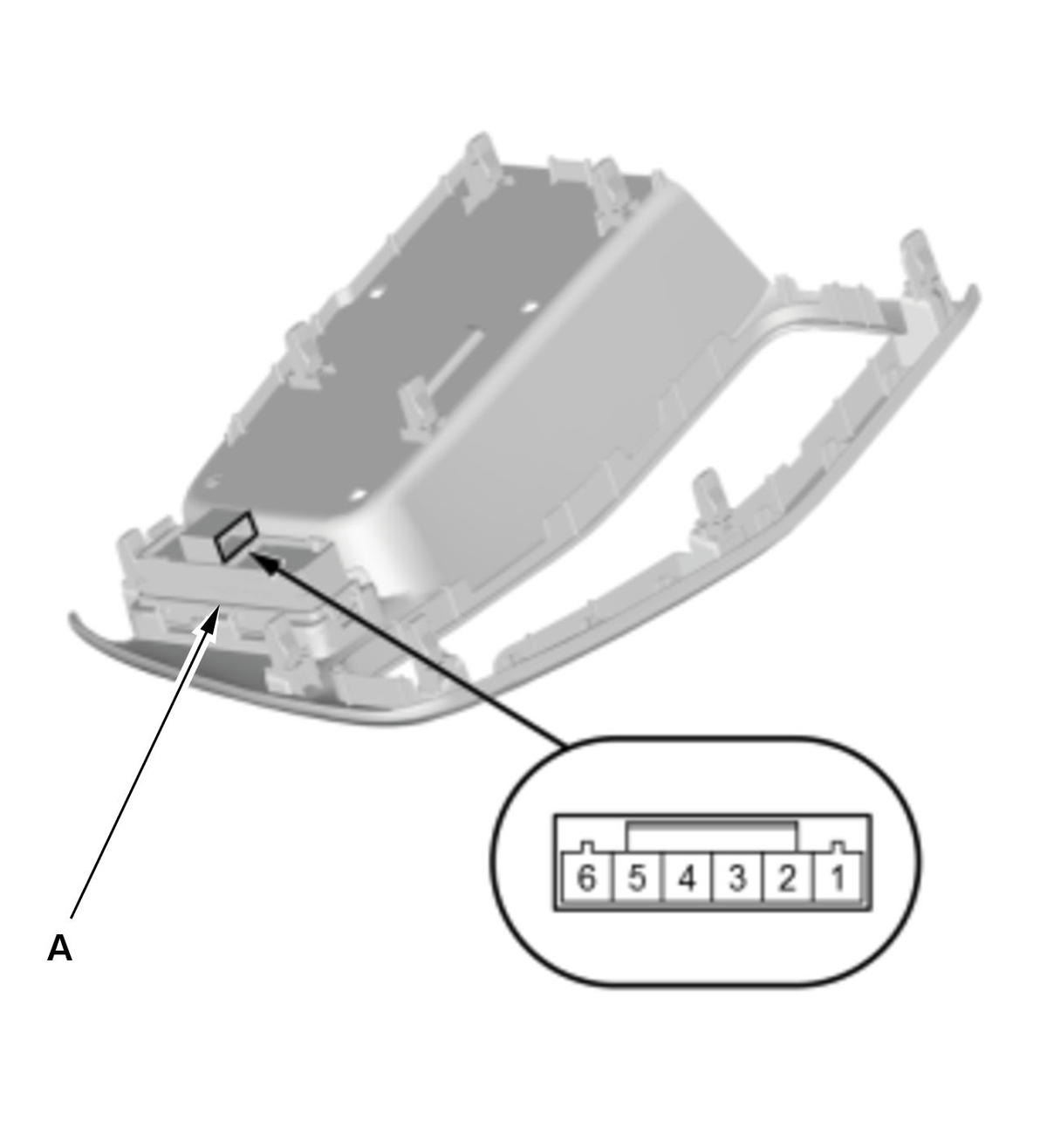

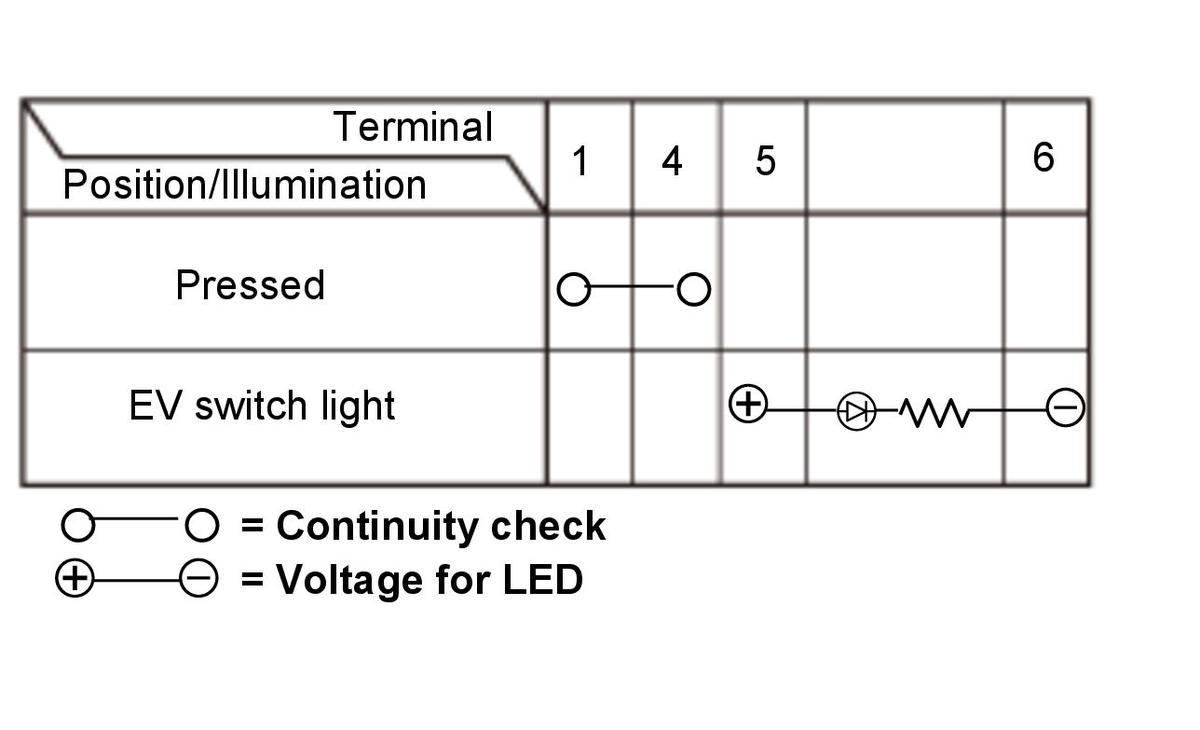

    		 1. Check the EV switch (A) according to the table.
    • NOTE:  When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • The following information is an important operating characteristic; the diode bias causes the diode to conduct electricity in one direction (forward), while not allowing the flow of electricity in the opposite direction (reverse).

    2. If the switch does not operate as specified, replace the ECON switch.
