Disassembly and Reassembly: IPU: Reassembly: Procedure

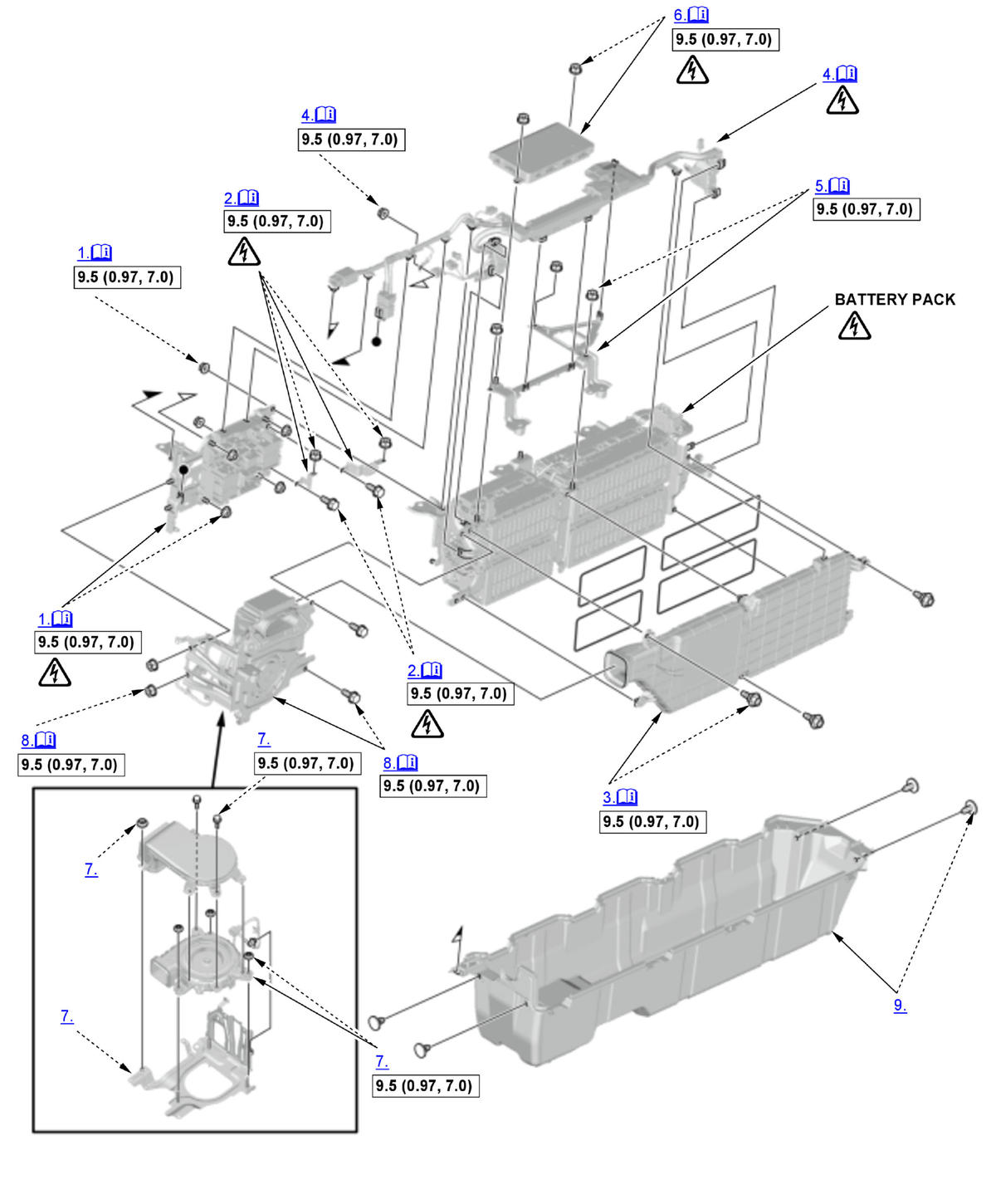

GHH384178Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
  1. Junction Board - Install

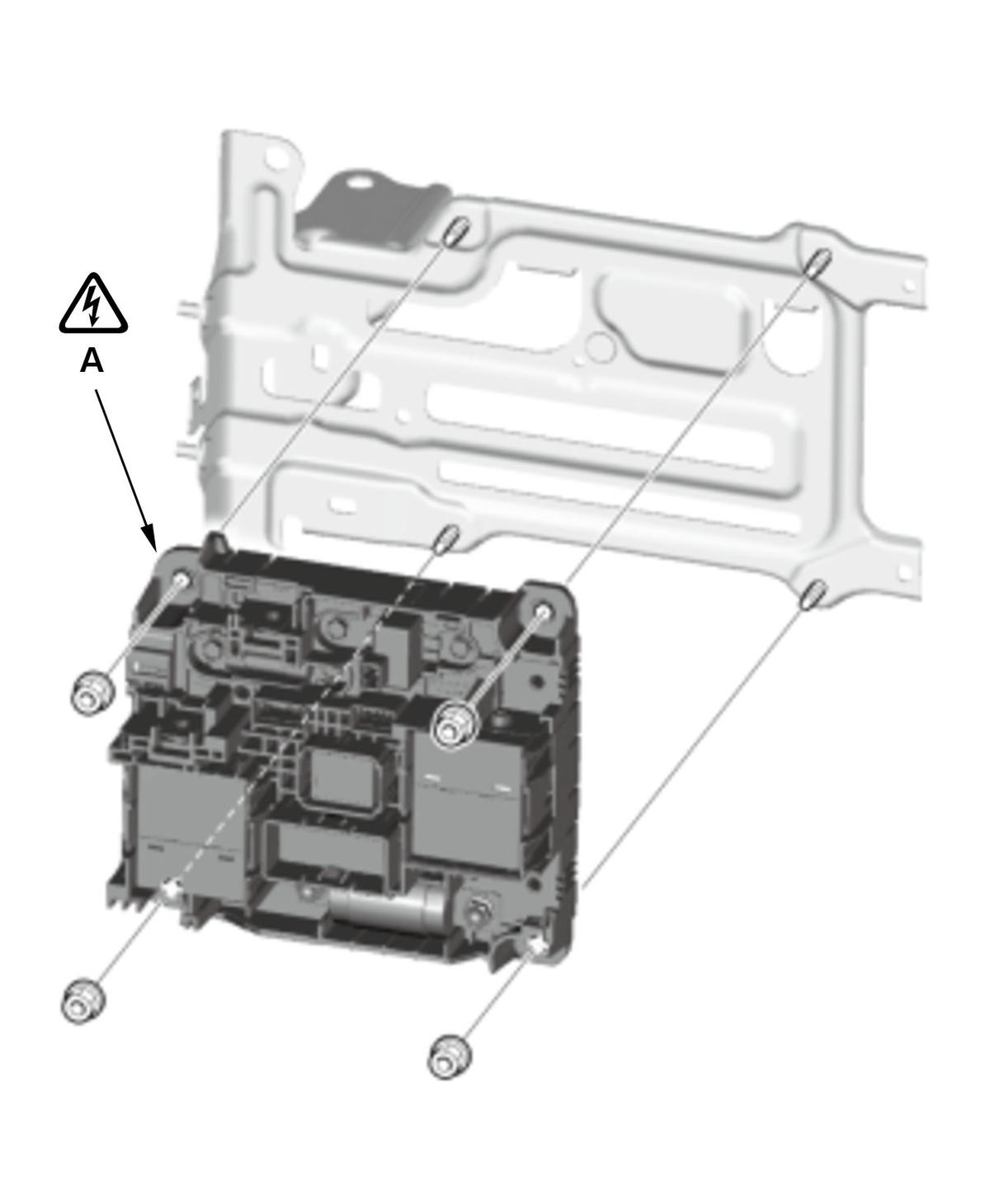

    GHH384179Courtesy of HONDA, U.S.A., INC.
    		 1. Install the junction board (A).
    GHH384180Courtesy of HONDA, U.S.A., INC.

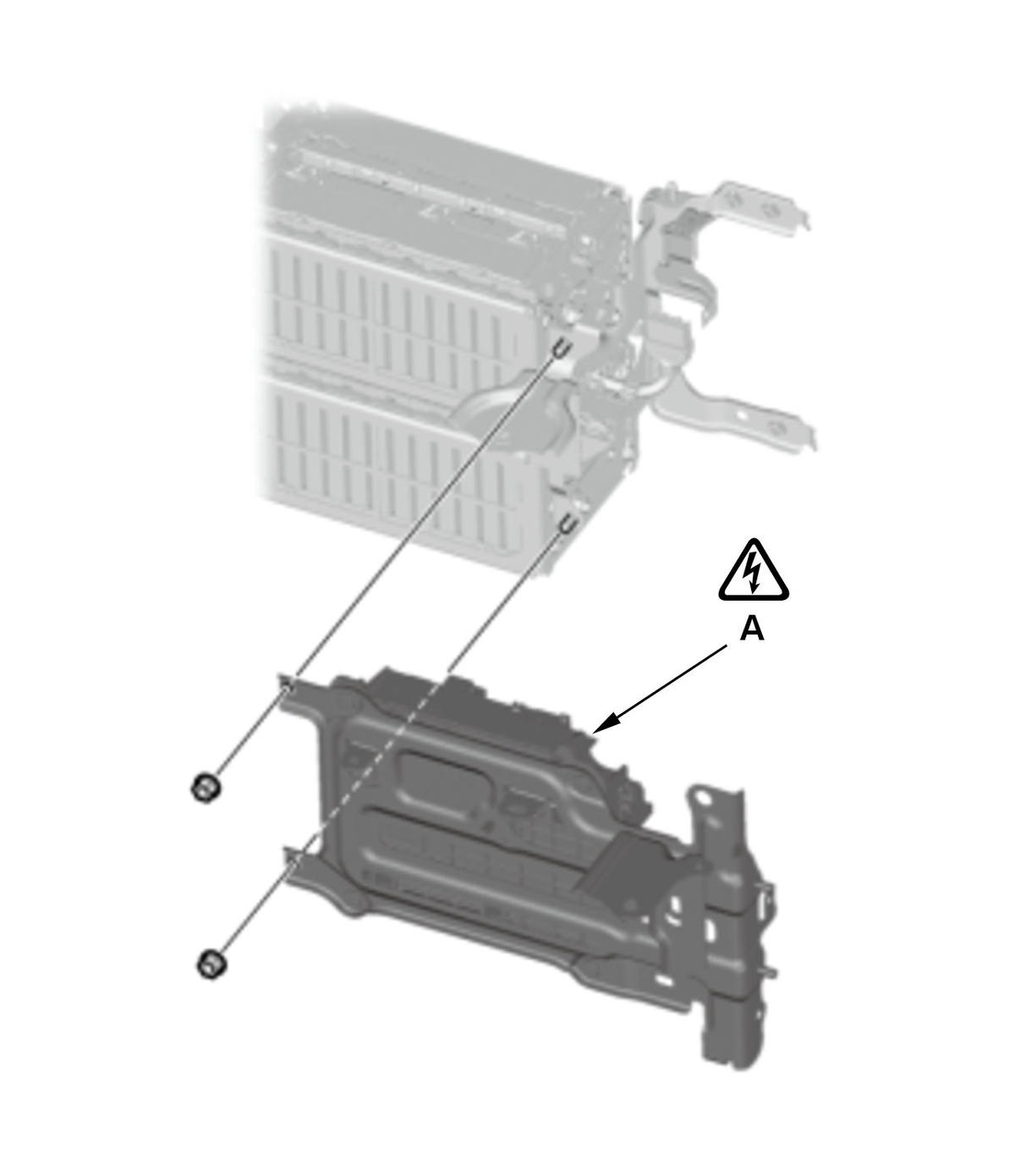

    		 2. Install the junction board assembly (A).
  2. Junction Board Busbar - Install

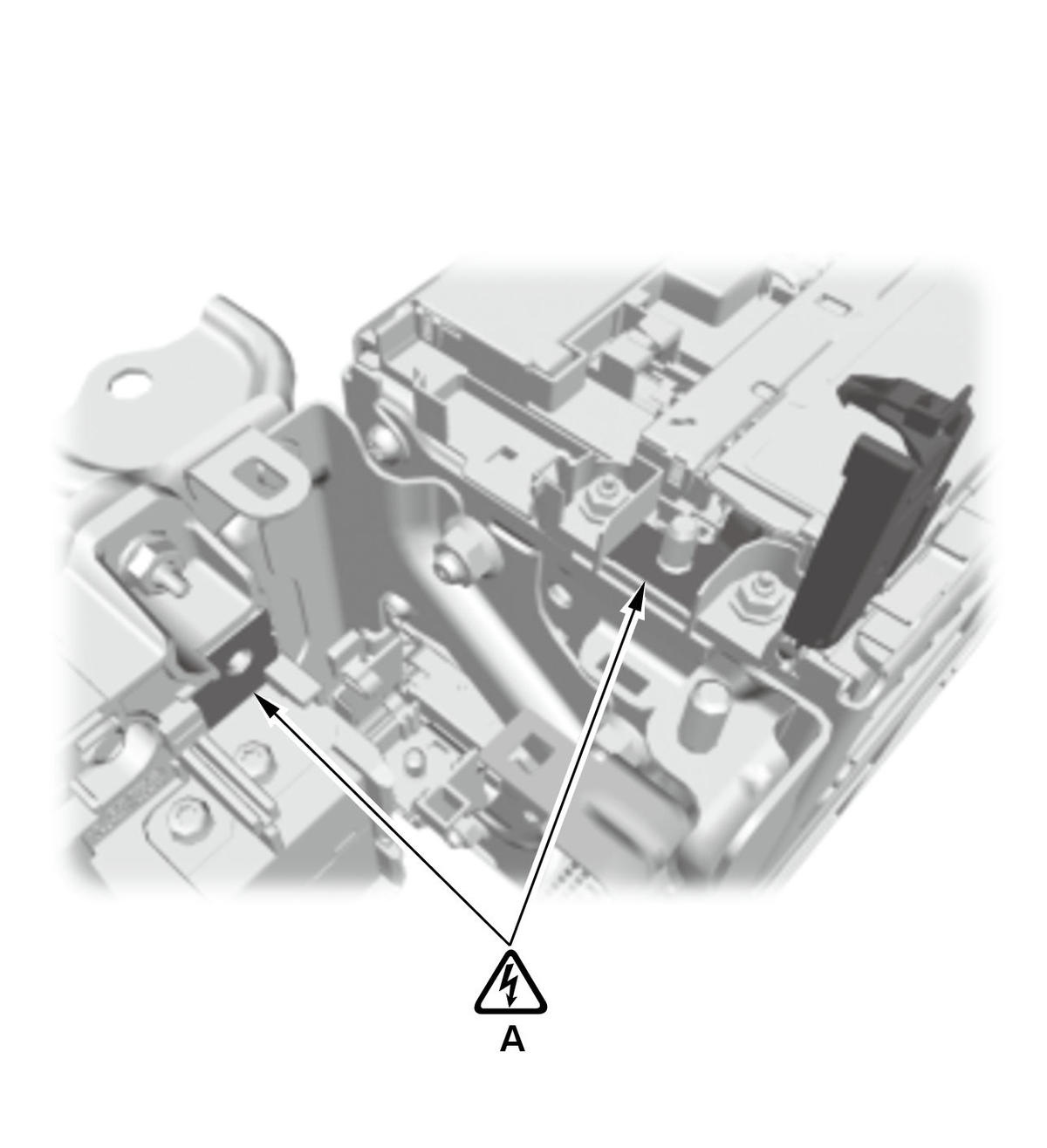

    Junction Board (-) Busbar Terminal Side

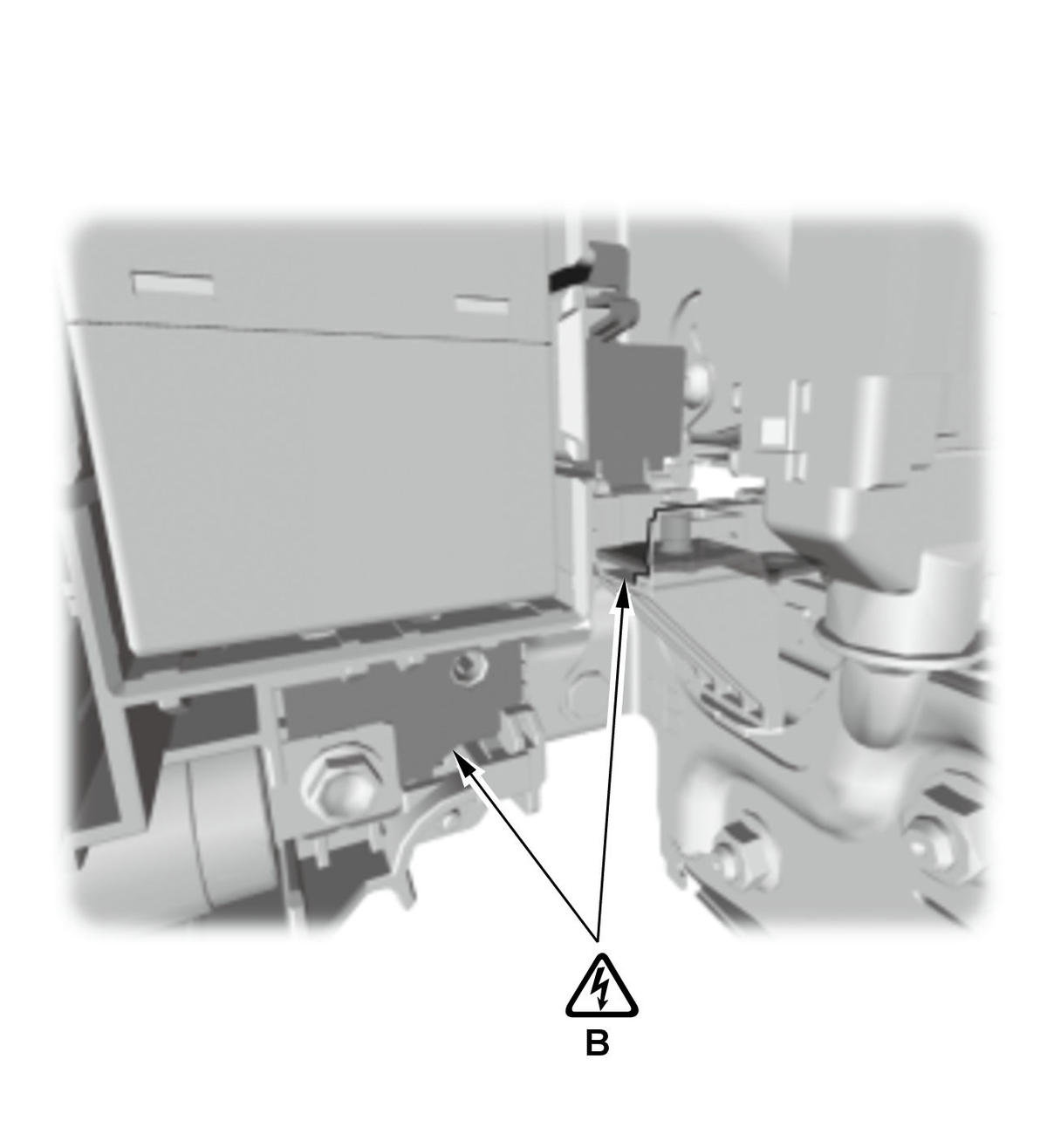

    GHH384181GHH384182Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Junction Board (+) Busbar Terminal Side

    GHH384181GHH384182Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 NOTE:  Check that the voltage between the terminals are normal before installing the busbars.

    1. Measure the voltage between the junction board (-) busbar terminals (A).

    2. Measure the voltage between the junction board (+) busbar terminals (B).
    Standard:  1 V or less
    Standard:  1 V or less

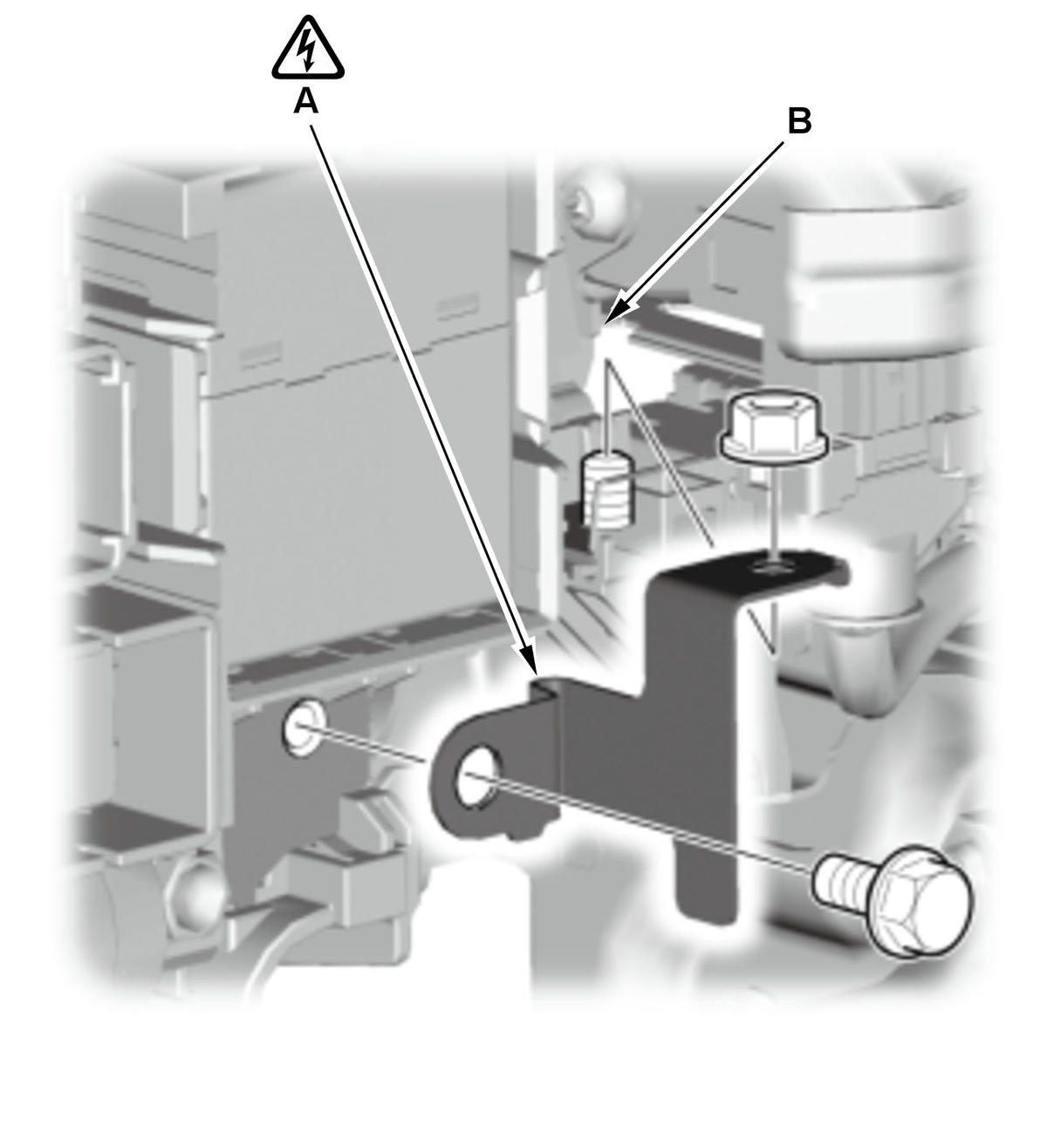

    GHH384183Courtesy of HONDA, U.S.A., INC.
    		 3. Install the junction board (+) busbar (A).

    NOTE:  Never reuse a bent or damaged busbar.

    4. Close the terminal cover (B).

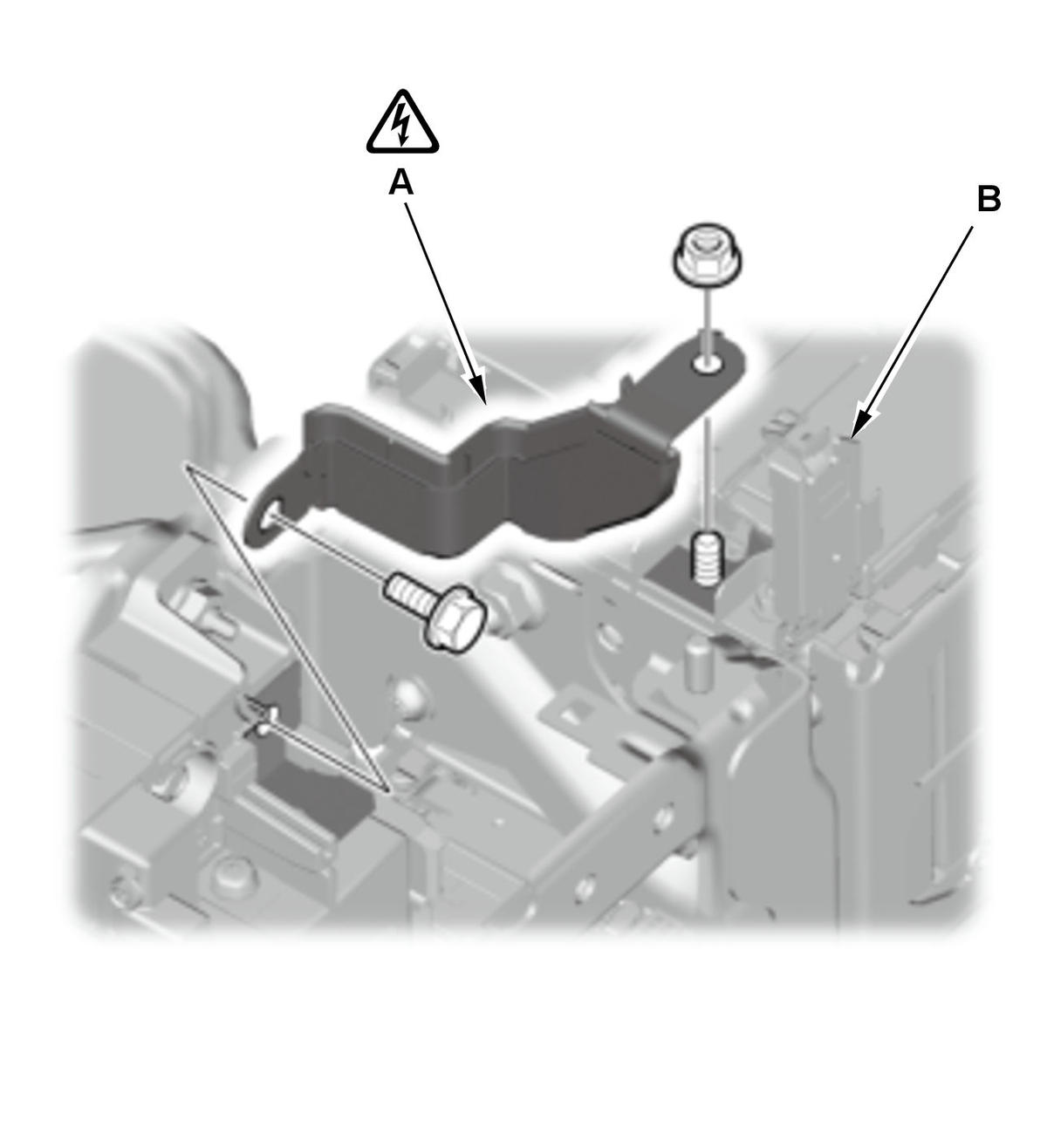

    GHH384184Courtesy of HONDA, U.S.A., INC.
    		 5. Install the junction board (-) busbar (A).

    NOTE:  Never reuse a bent or damaged busbar.

    6. Close the terminal cover (B).

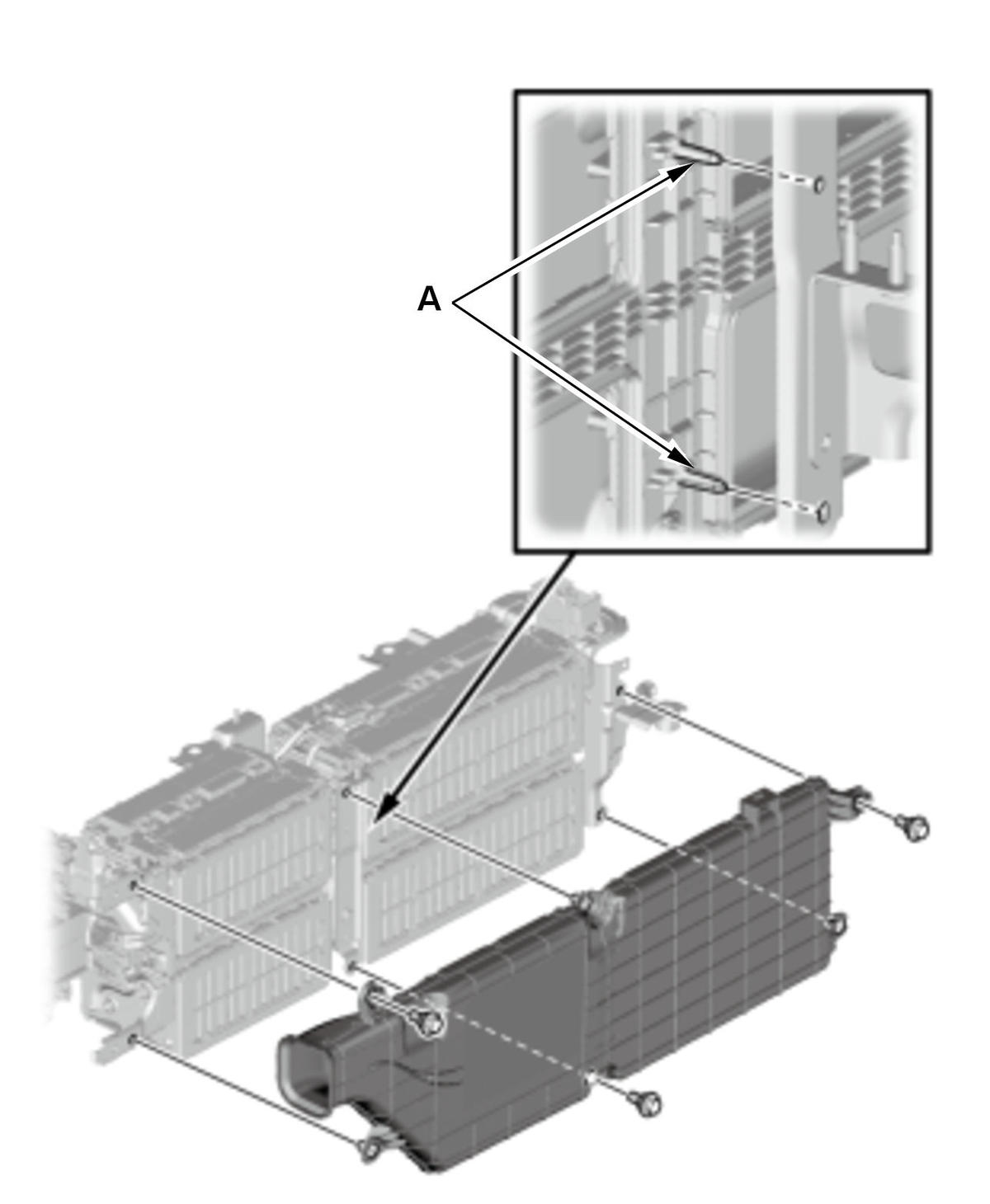

  3. High Voltage Battery Inlet Duct - Install
    GHH384185Courtesy of HONDA, U.S.A., INC.

    NOTE:  Align the pins (A) to the holes on the battery frame.

  4. IPU Wire Harness - Install
    Junction Board Side

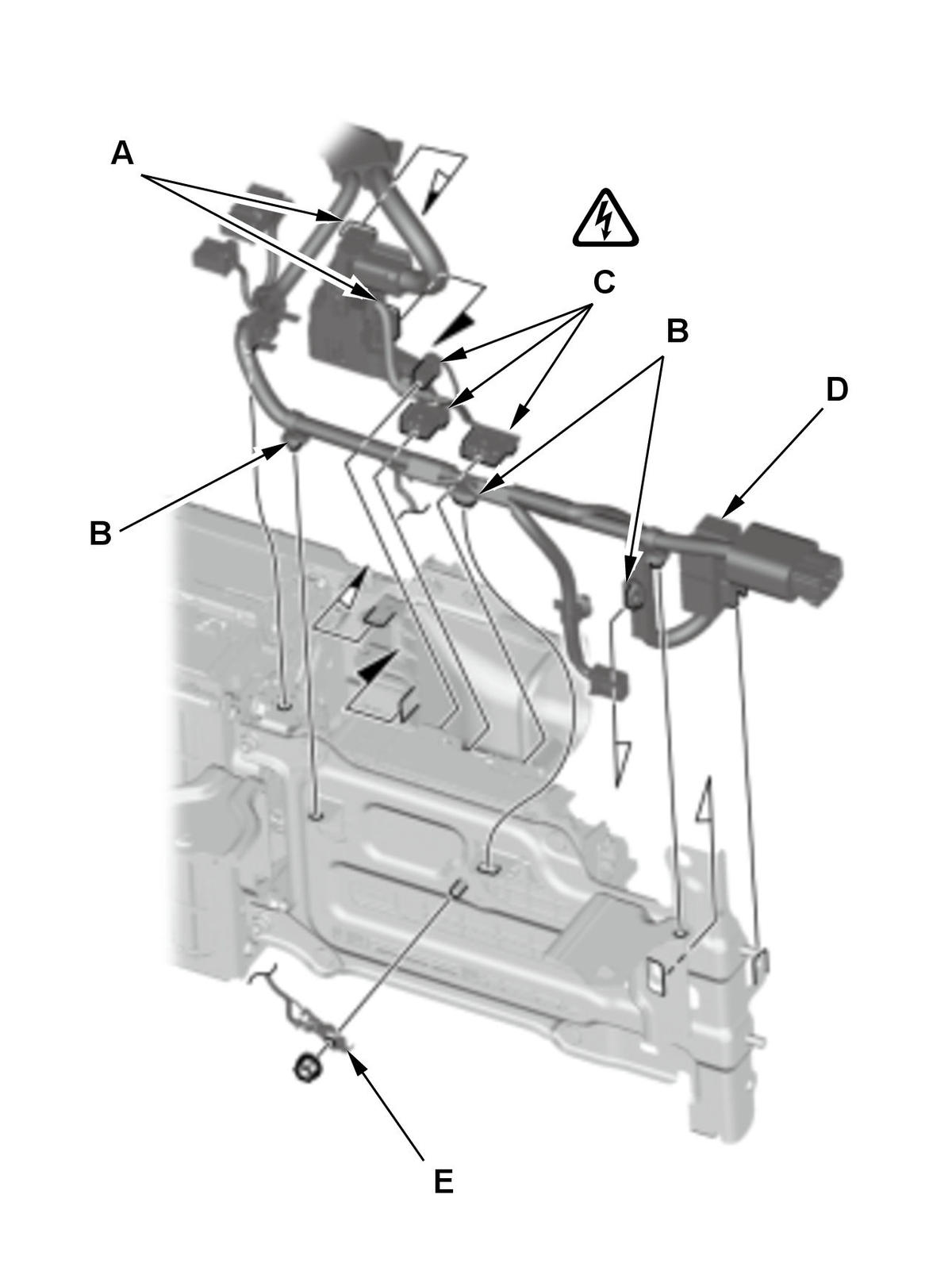

    GHH384186Courtesy of HONDA, U.S.A., INC.
    		 1. Install the harness holder, by attaching the tabs (A).

    2. Install the clips (B).

    3. Connect the connectors (C).

    4. Install the relay holder (D).

    5. Connect the ground terminal (E).

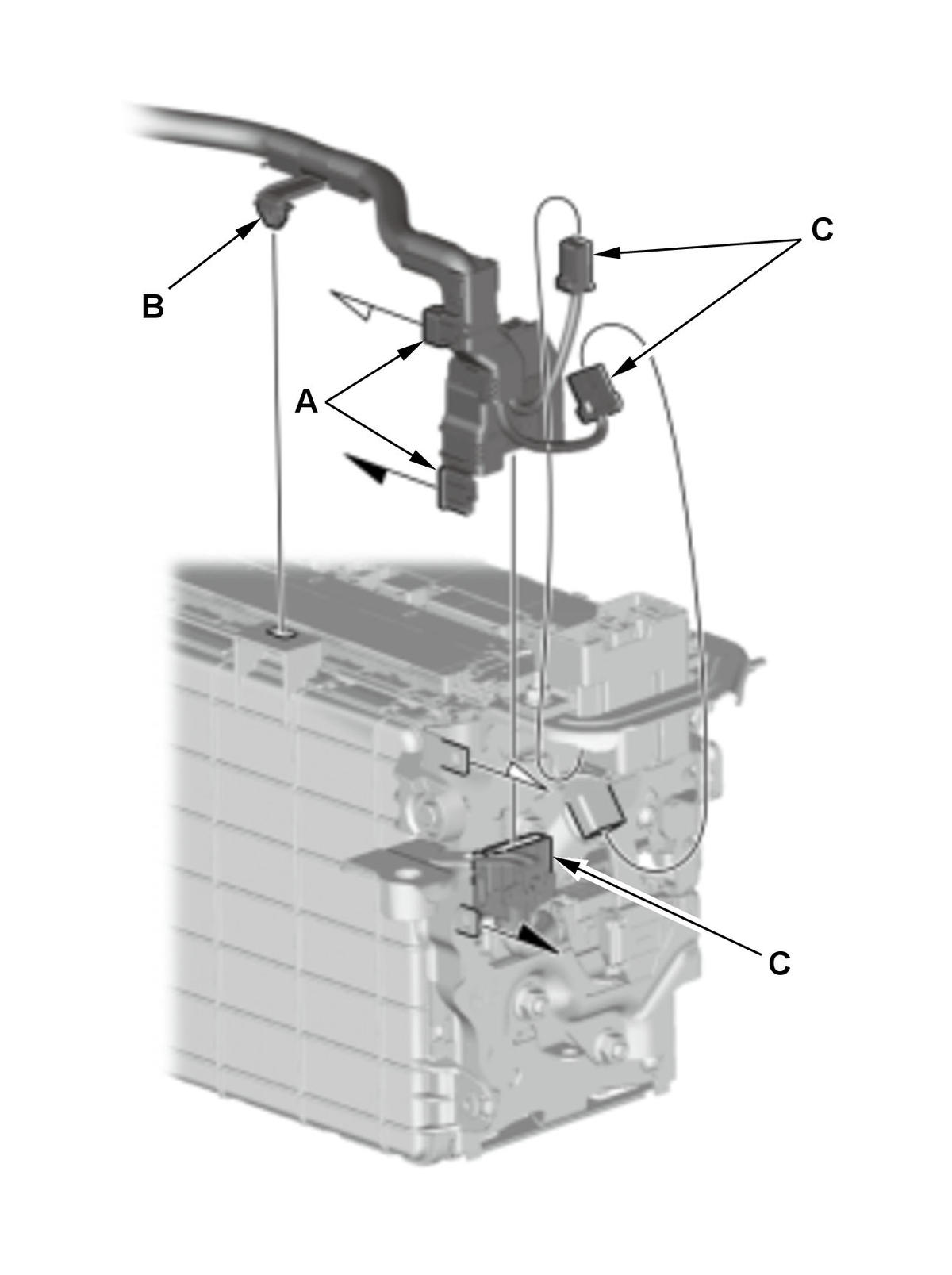

    Service Plug Base Side
    GHH384187Courtesy of HONDA, U.S.A., INC.
    		 6. Install the harness holder, by attaching the tabs (A).

    7. Install the clip (B).

    8. Connect the connectors (C).
  5. Battery Condition Monitor Module Frame - Install

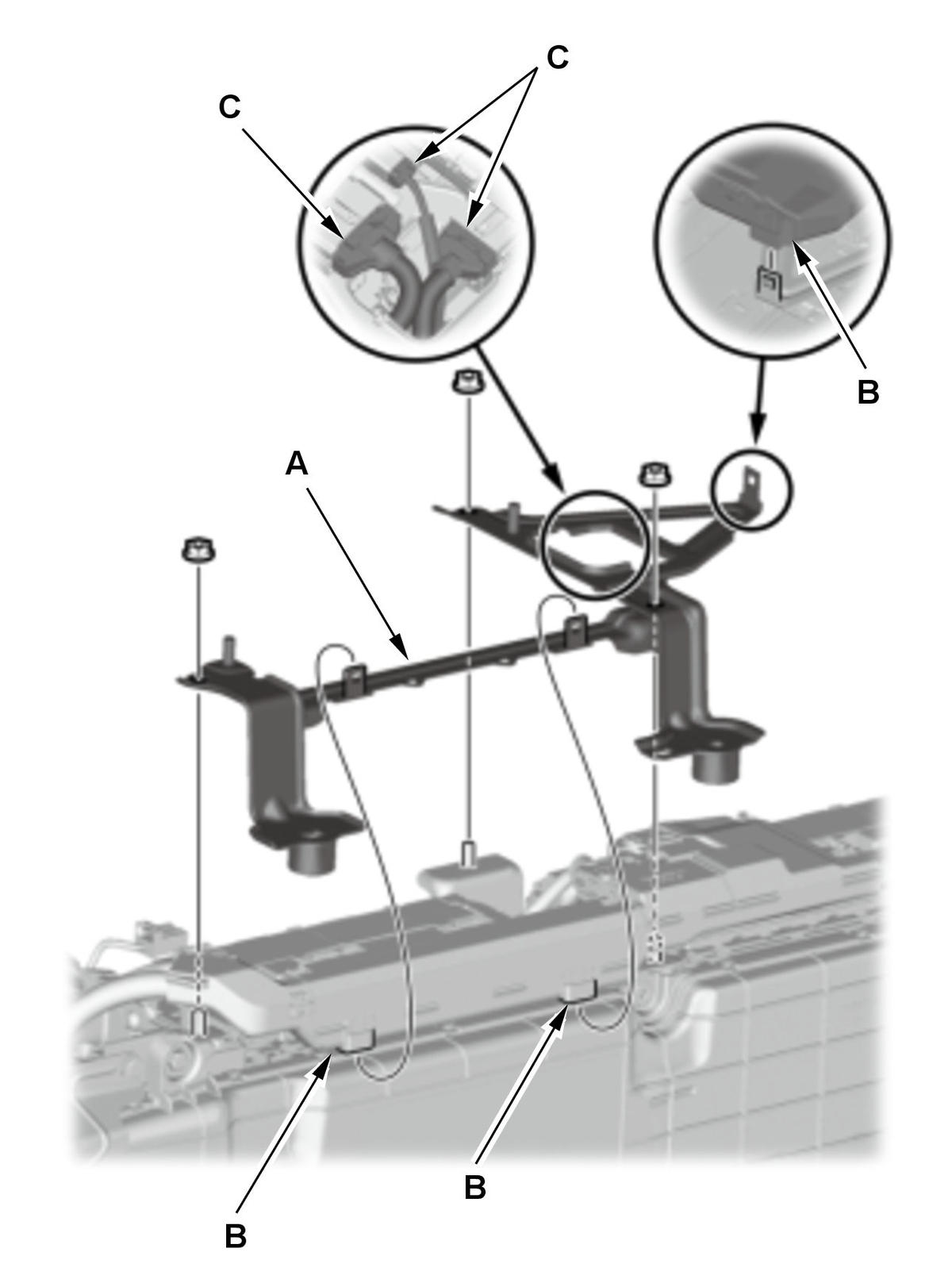

    GHH384188Courtesy of HONDA, U.S.A., INC.
    		 1. Install the battery condition monitor module frame (A).

    2. Install the harness holder, by attaching the tabs (B).

    3. Connect the connectors (C).
  6. Battery Condition Monitor Module - Install

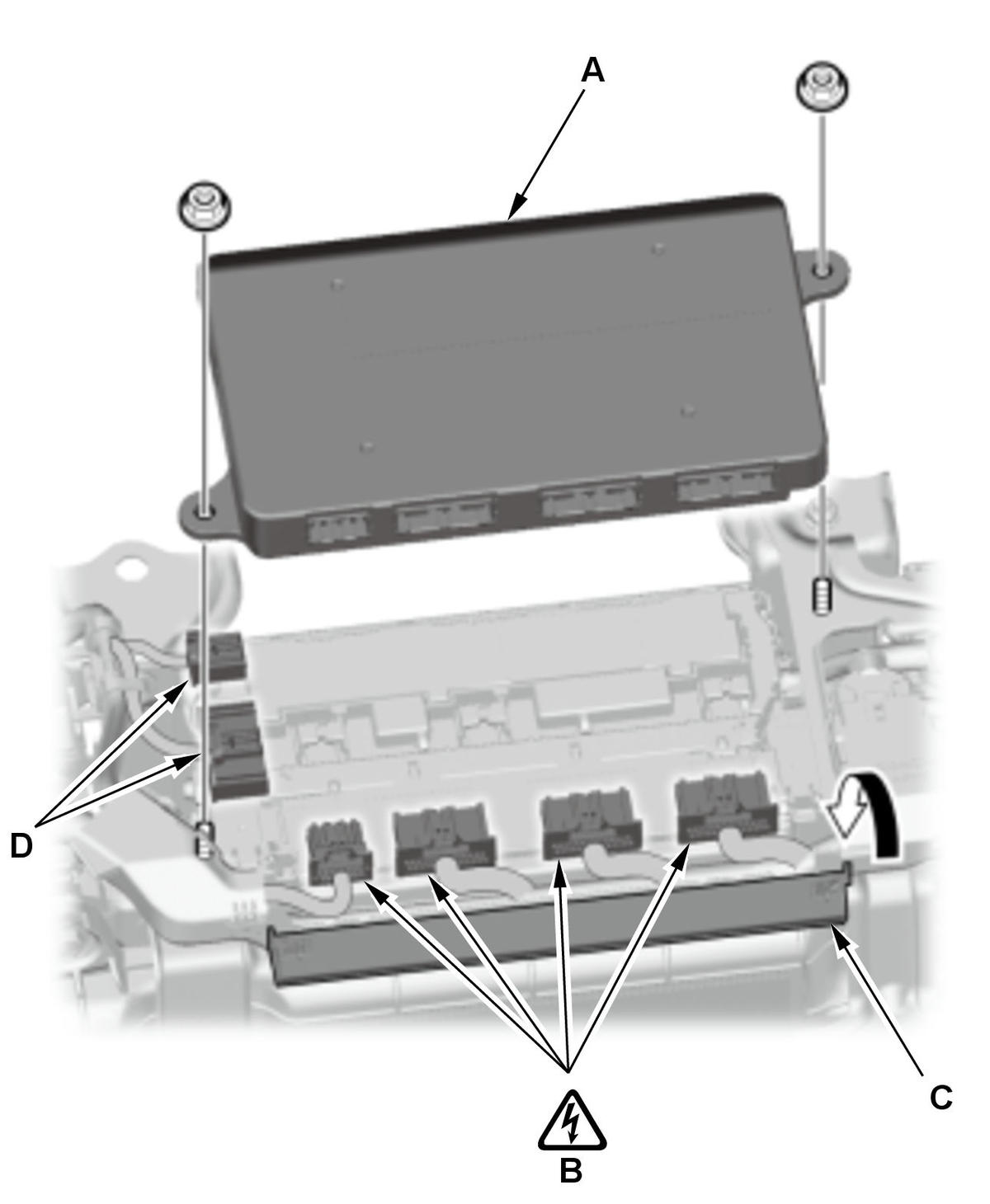

    GHH384189Courtesy of HONDA, U.S.A., INC.
    		 1. Install the battery condition monitor module (A).

    2. Connect the connectors (B).

    3. Close the connector cover (C).

    4. Connect the connectors (D).
  7. High Voltage Battery Module Fan - Install

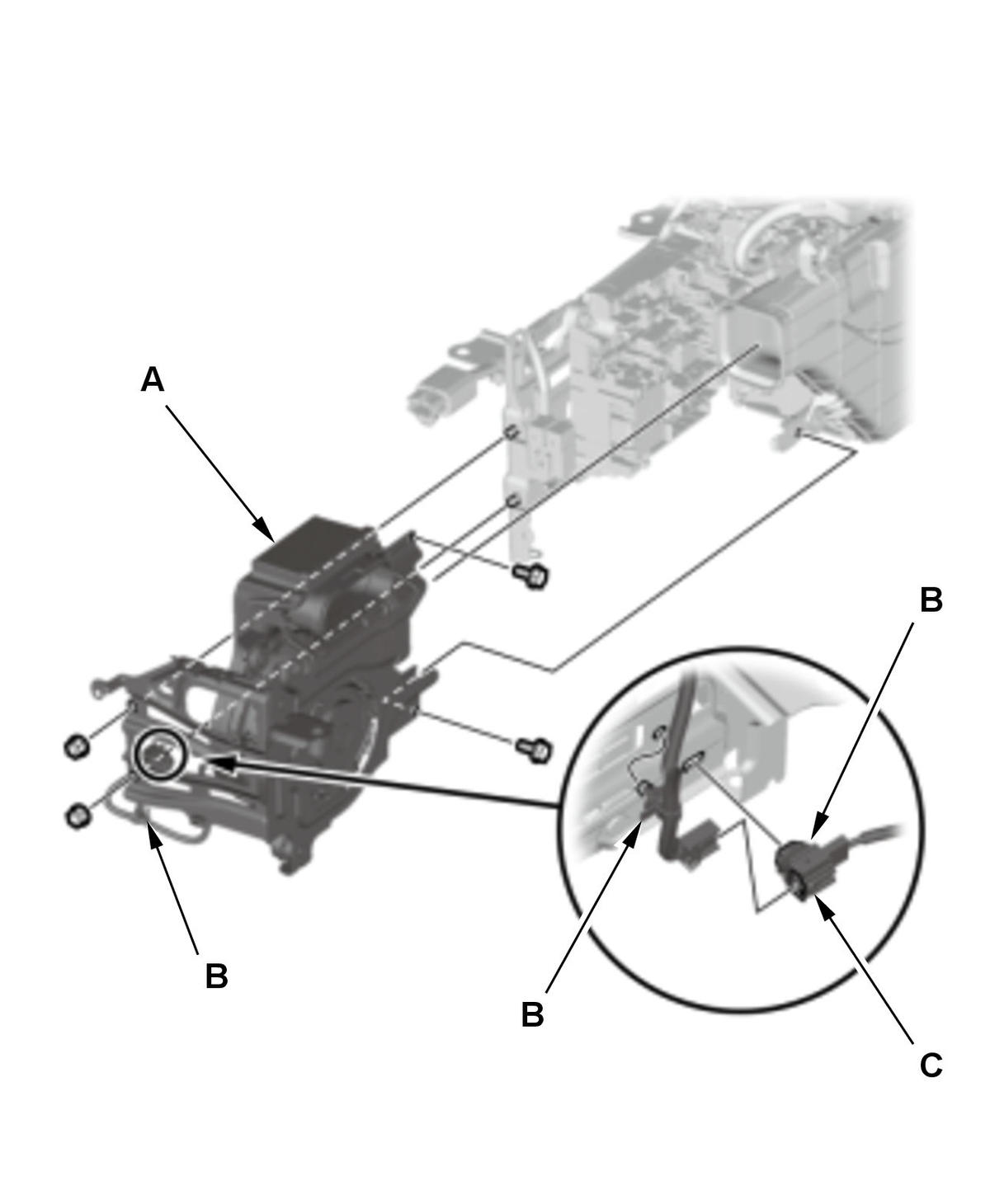

  8. High Voltage Battery Module Fan Assembly - Install
    GHH384190Courtesy of HONDA, U.S.A., INC.
    		 1. Install the high voltage battery module fan assembly (A).

    2. Install the clips (B).

    3. Connect the connector (C).
  9. IPU Case - Install
