Battery Pack: Reassembly: Procedure

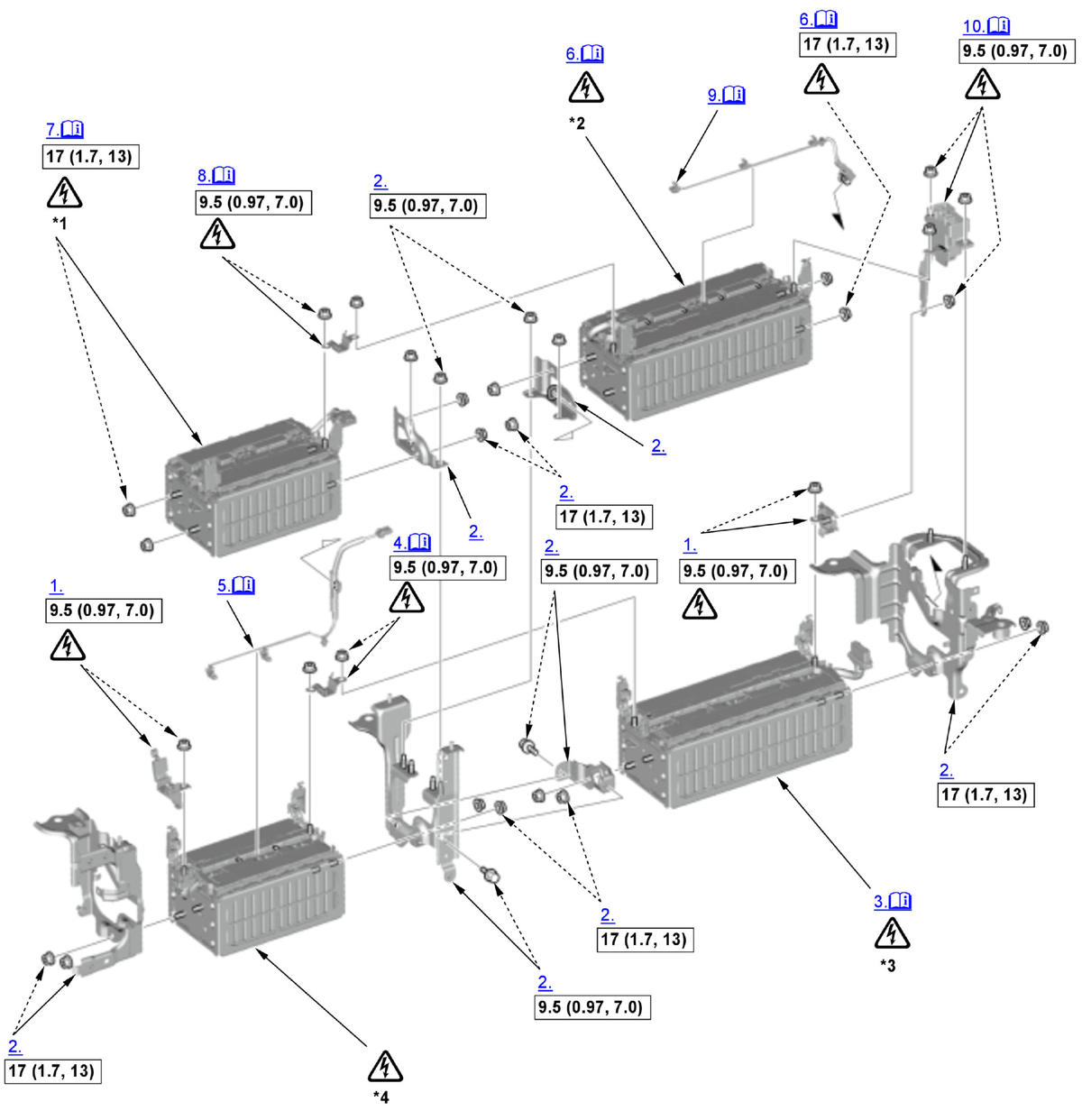

Fig 1: Battery Modules With Torque Specifications
GHH384156Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
*1 Battery module 1
*2 Battery module 2
*3 Battery module 3
*4 Battery module 4
  1. Battery Module Terminal - Install
  2. Battery Module Bracket - Install

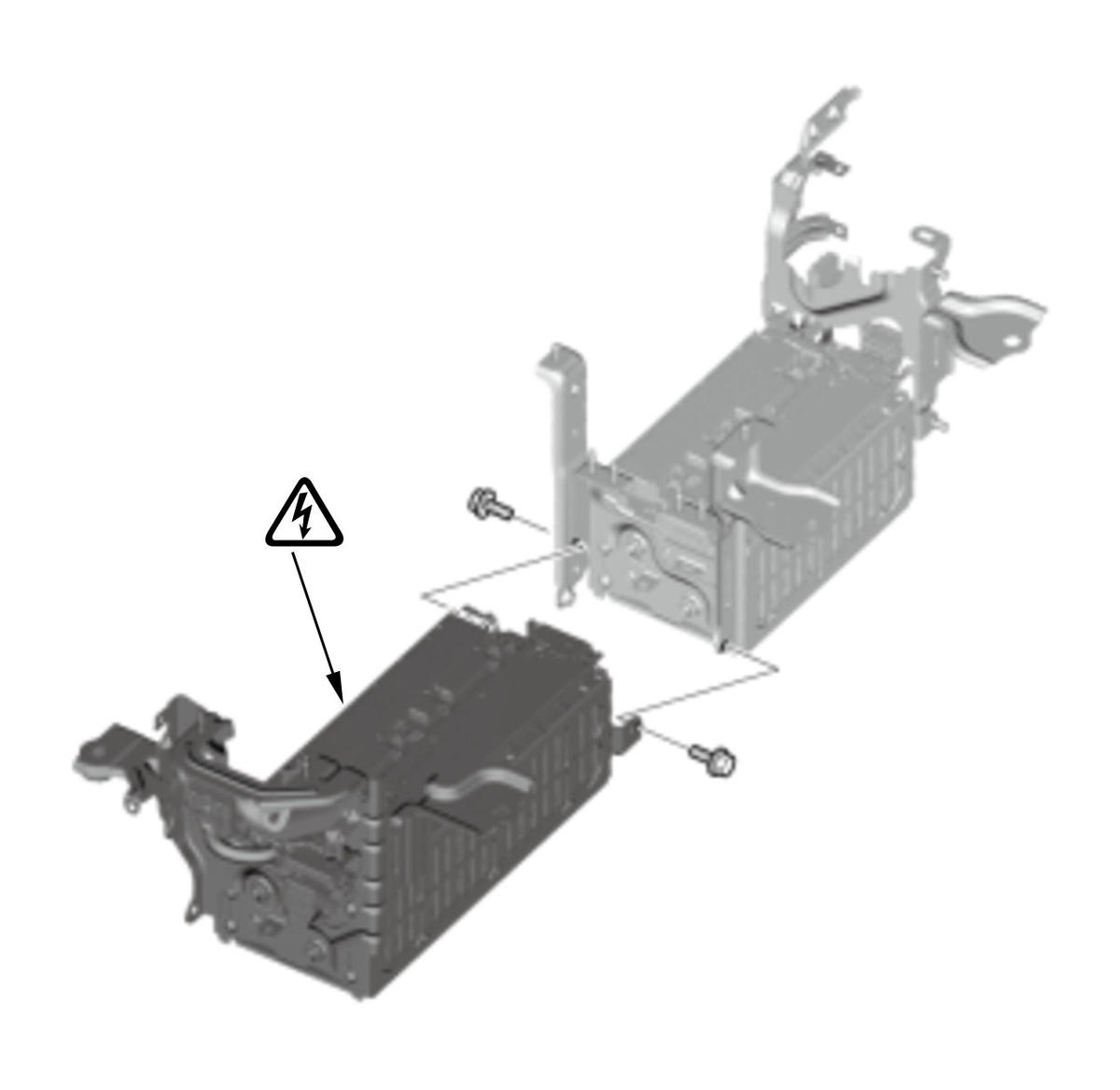

  3. Battery Module 3 - Install
    GHH384157Courtesy of HONDA, U.S.A., INC.
  4. Busbar B - Install
    GHH384158Courtesy of HONDA, U.S.A., INC.

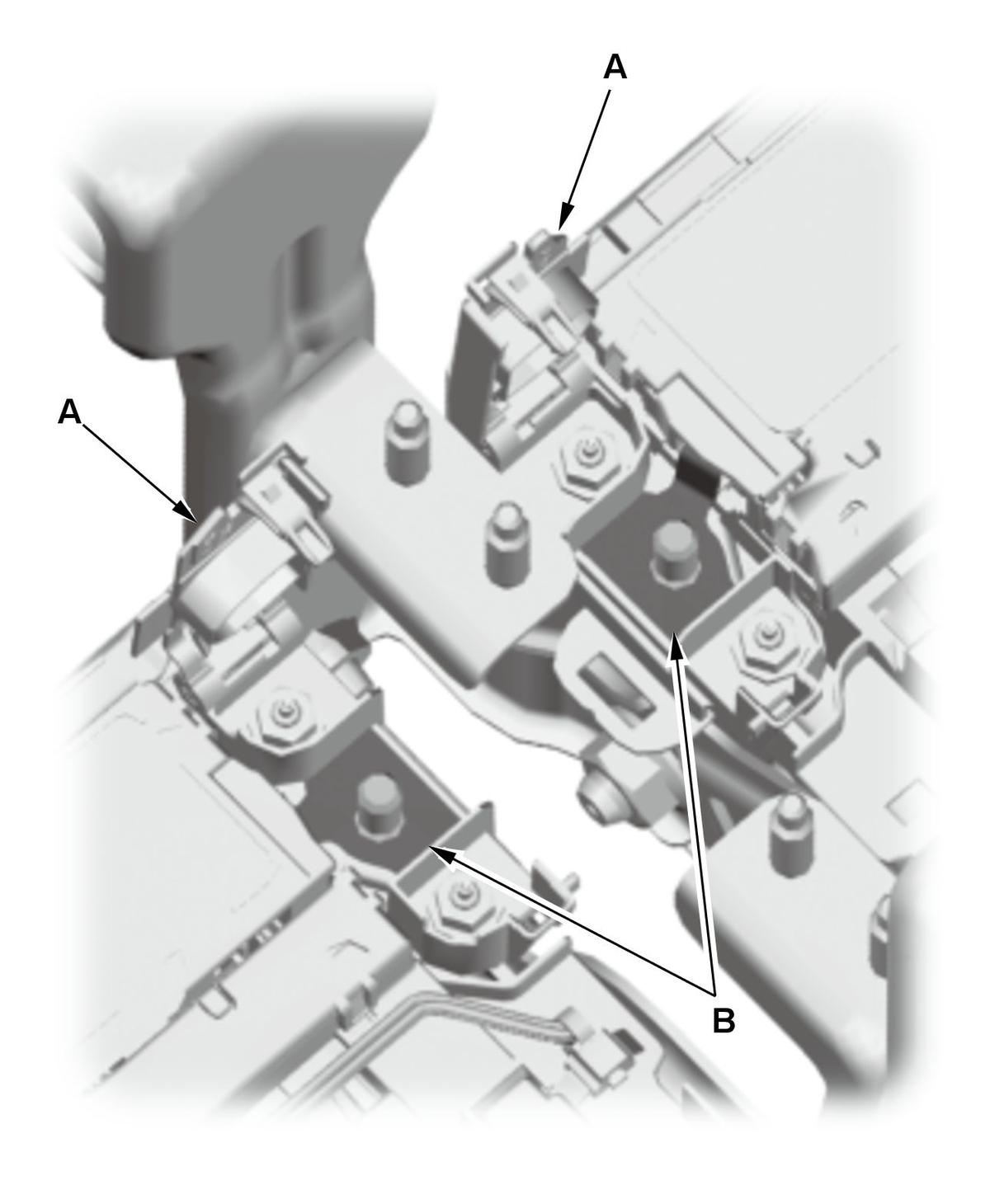

    		 NOTE:  Check that the voltage between the terminals are normal before installing the service plug base.

    1. Open the terminal covers (A).

    2. Measure the voltage between the terminals (B).
    Standard:  1 V or less
    GHH384159Courtesy of HONDA, U.S.A., INC.

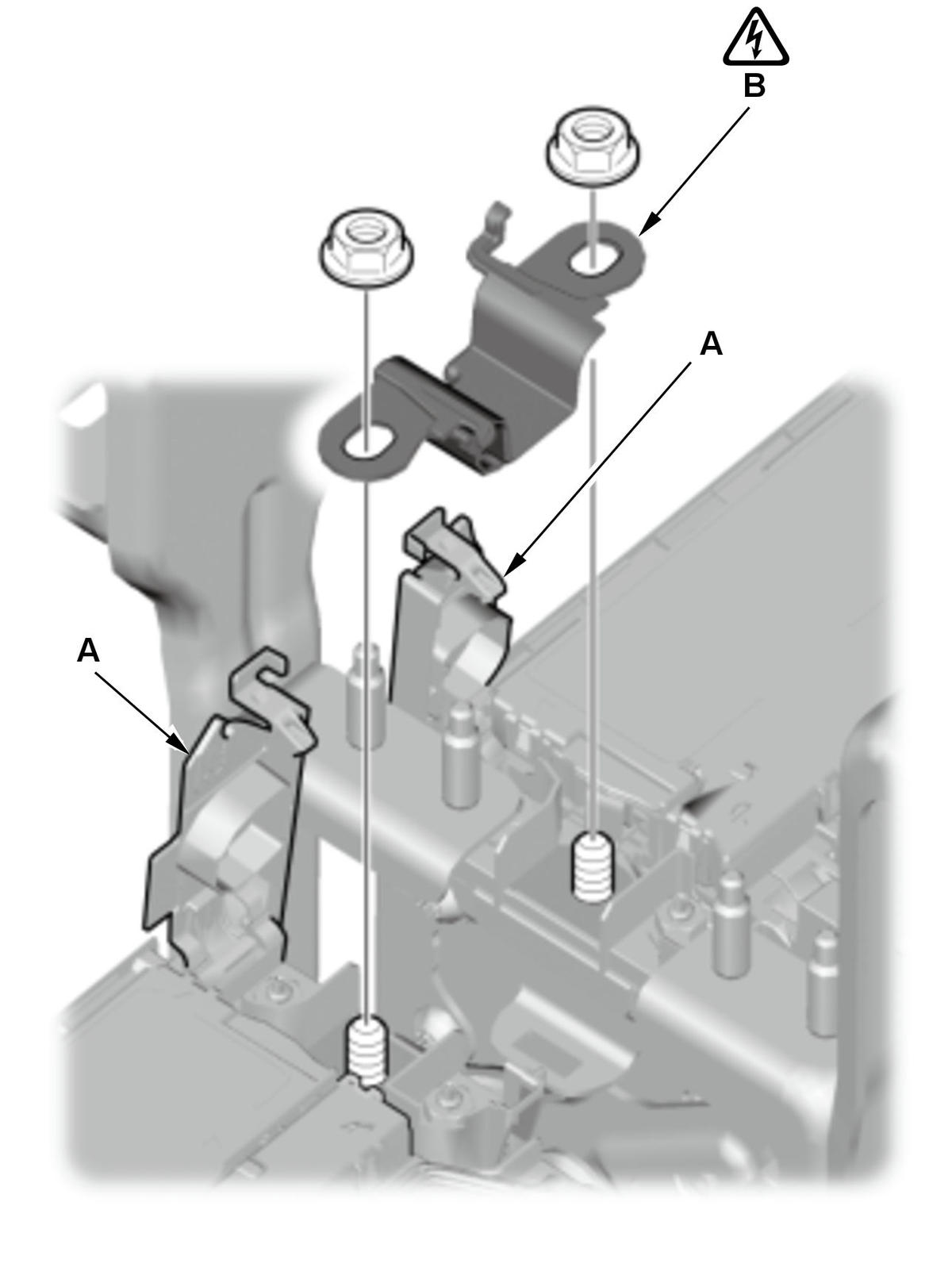

    		 3. Install the busbar B.

    4. Close the terminal covers (A).
  5. High Voltage Battery Module Temperature Sensor B - Install

    1. Install the high voltage battery module temperature sensor B.

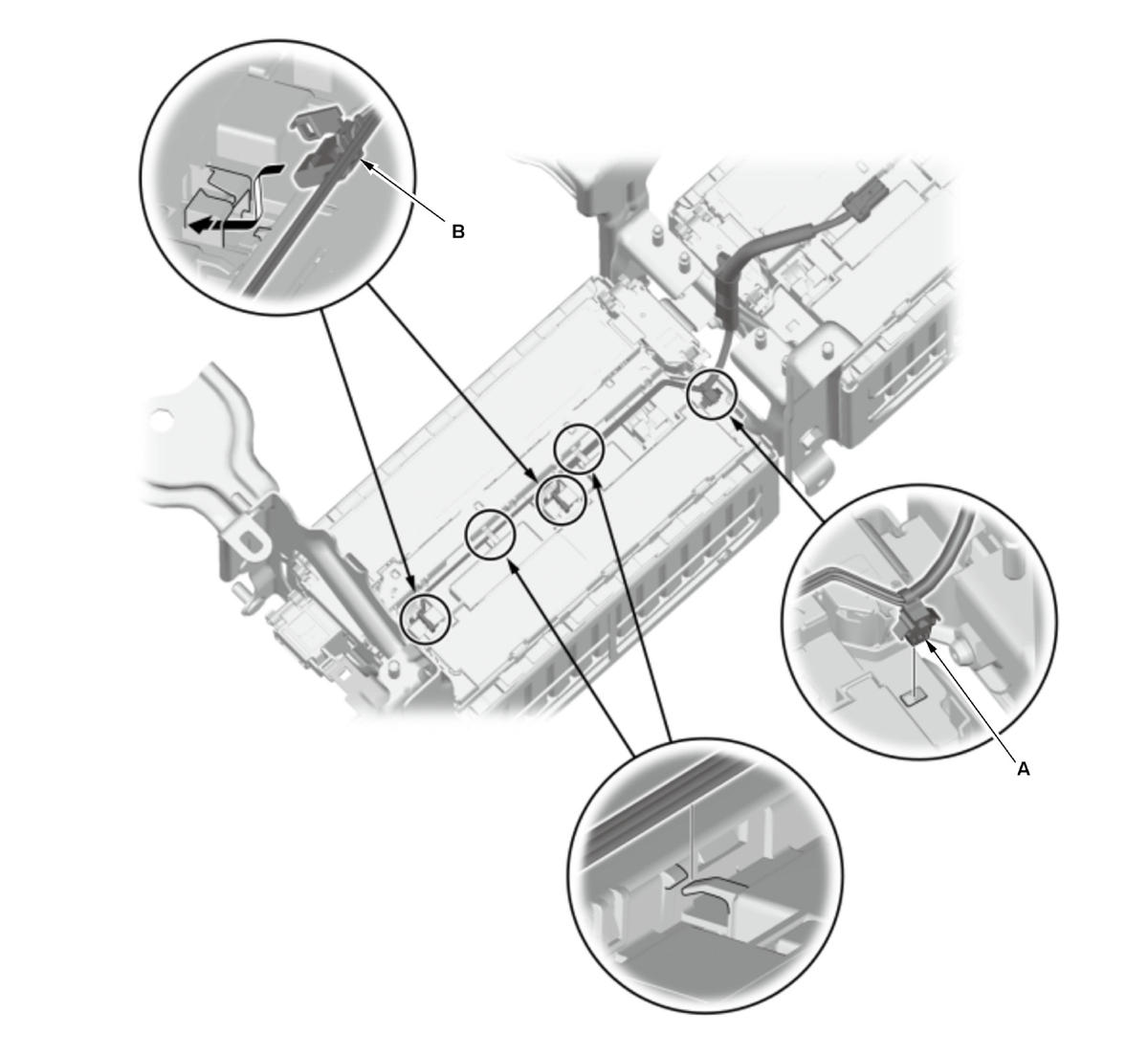

    GHH384160Courtesy of HONDA, U.S.A., INC.

    2. Install the clip (A).

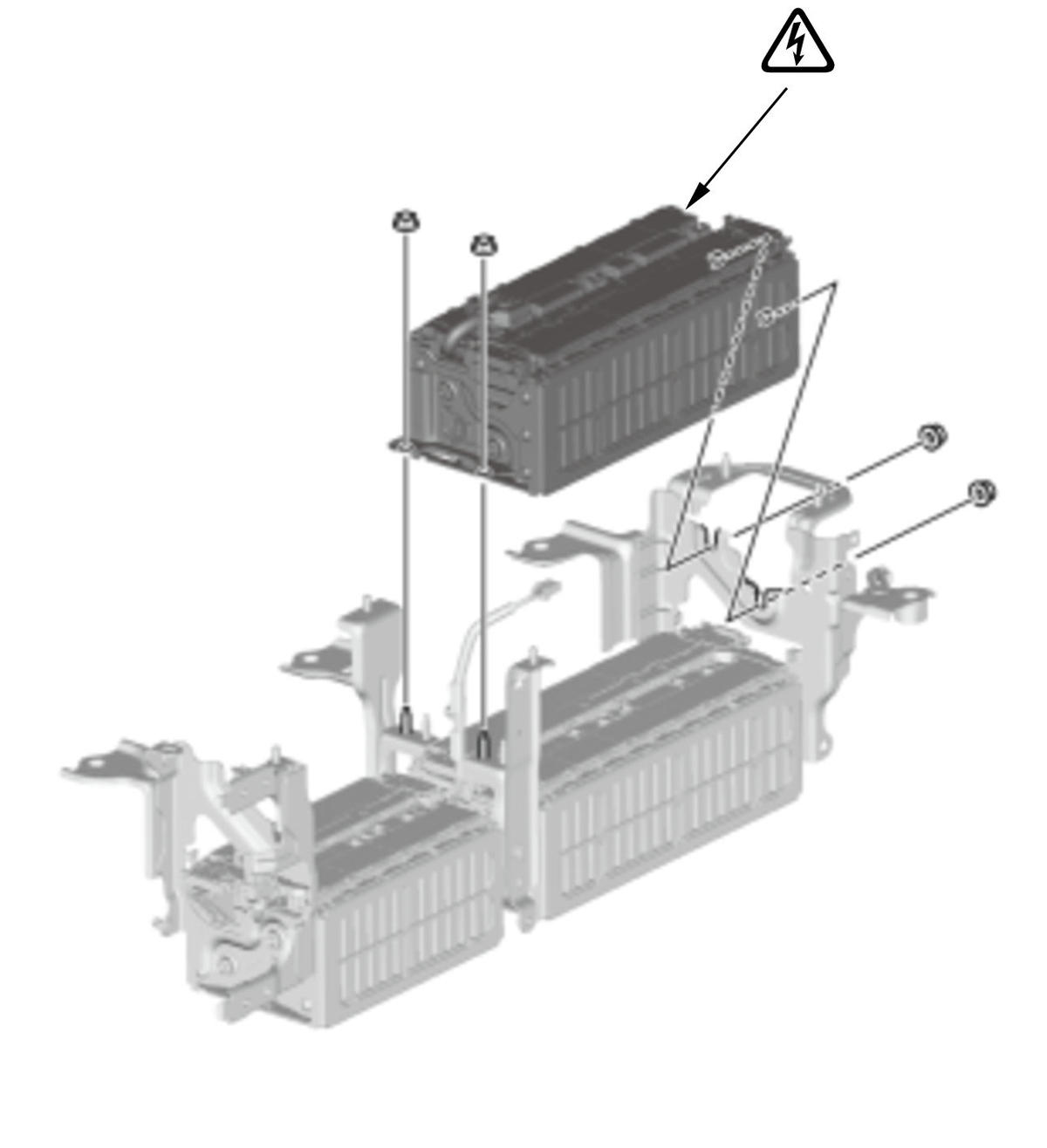

  6. Battery Module 2 - Install
    GHH384161Courtesy of HONDA, U.S.A., INC.

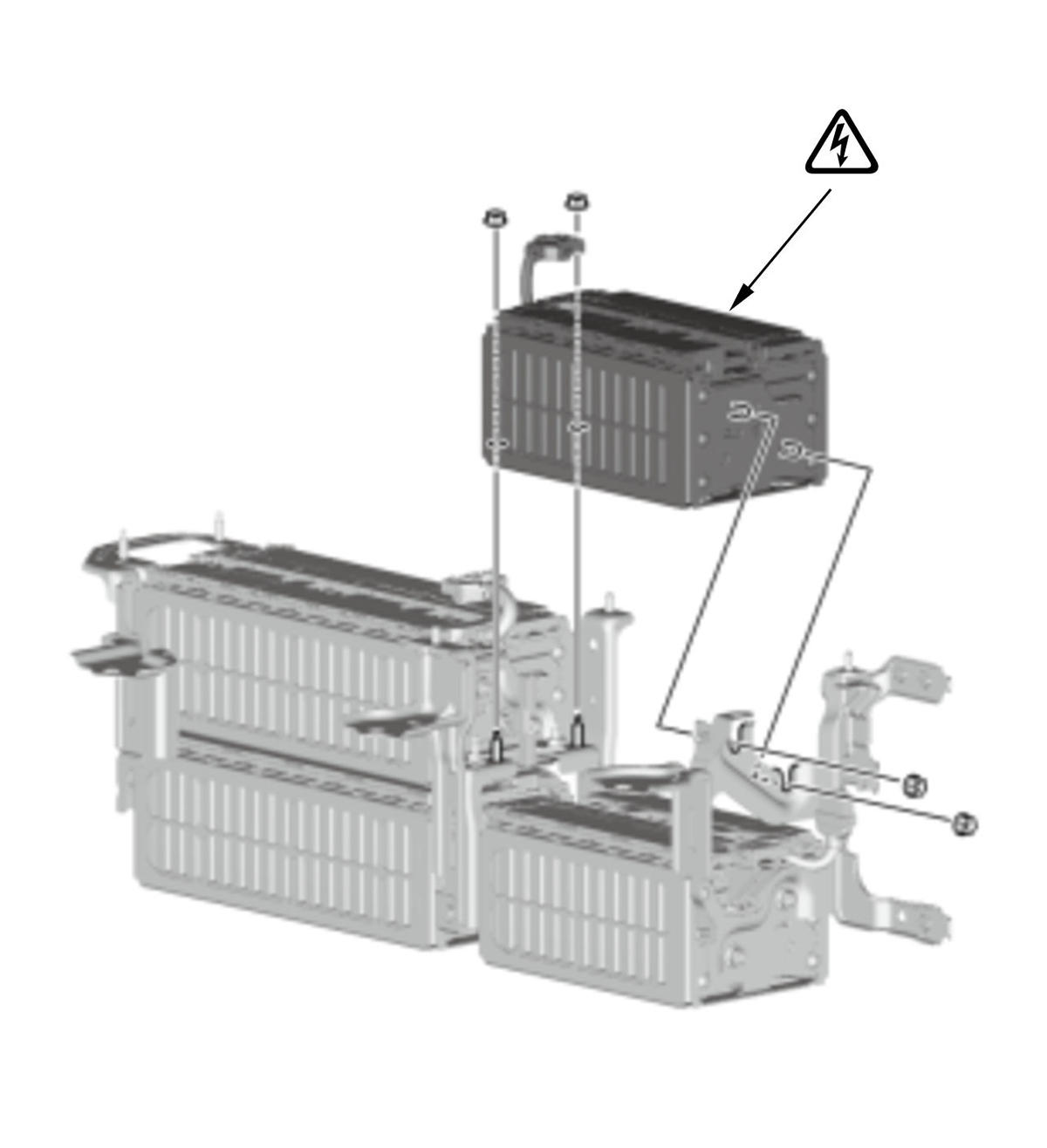

  7. Battery Module 1 - Install
    GHH384162Courtesy of HONDA, U.S.A., INC.
  8. Busbar A - Install
    GHH384163Courtesy of HONDA, U.S.A., INC.

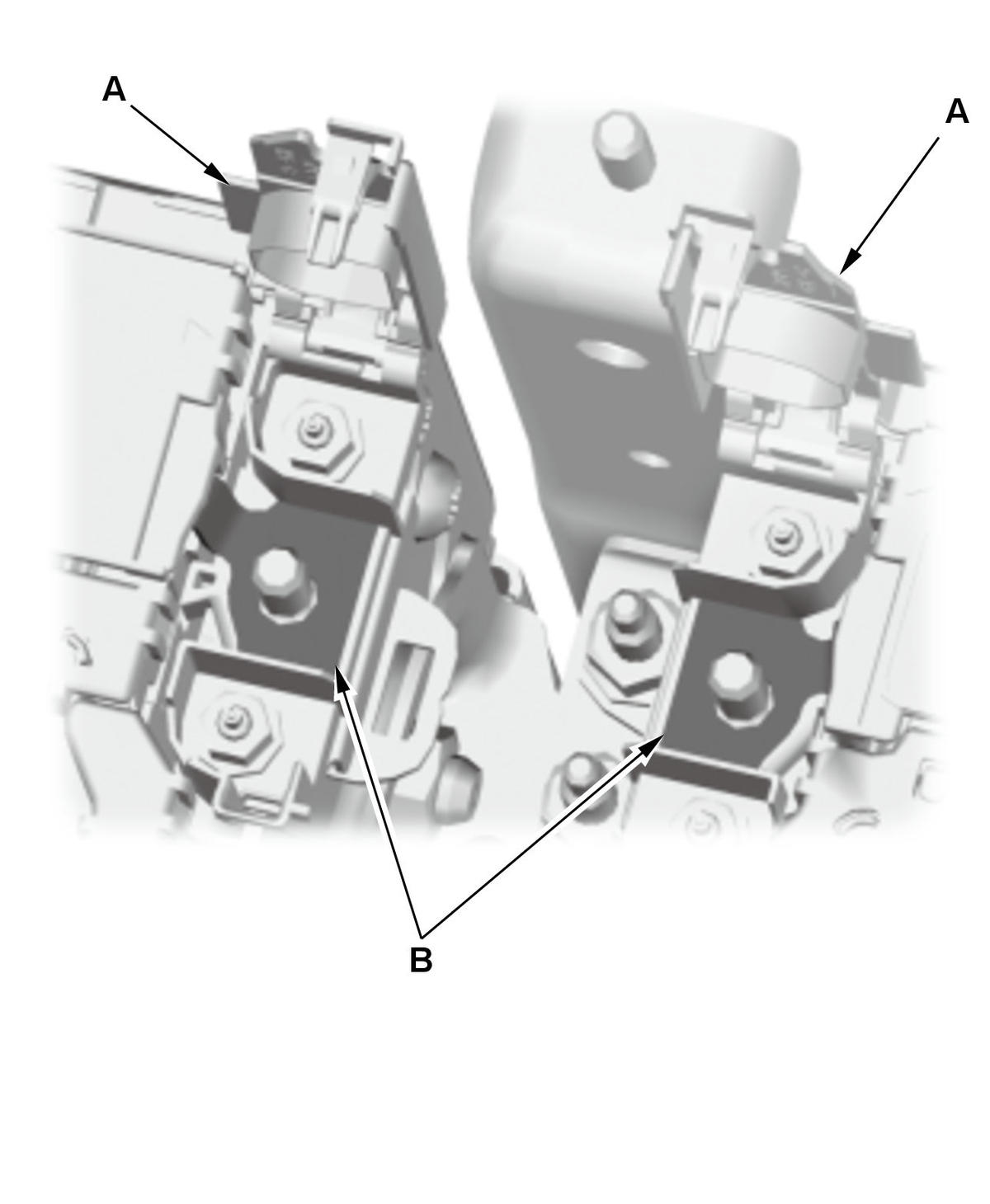

    		 NOTE:  Check that the voltage between the terminals are normal before installing the service plug base.

    1. Open the terminal covers (A).

    2. Measure the voltage between the terminals (B).
    Standard:  1 V or less
    GHH384164Courtesy of HONDA, U.S.A., INC.

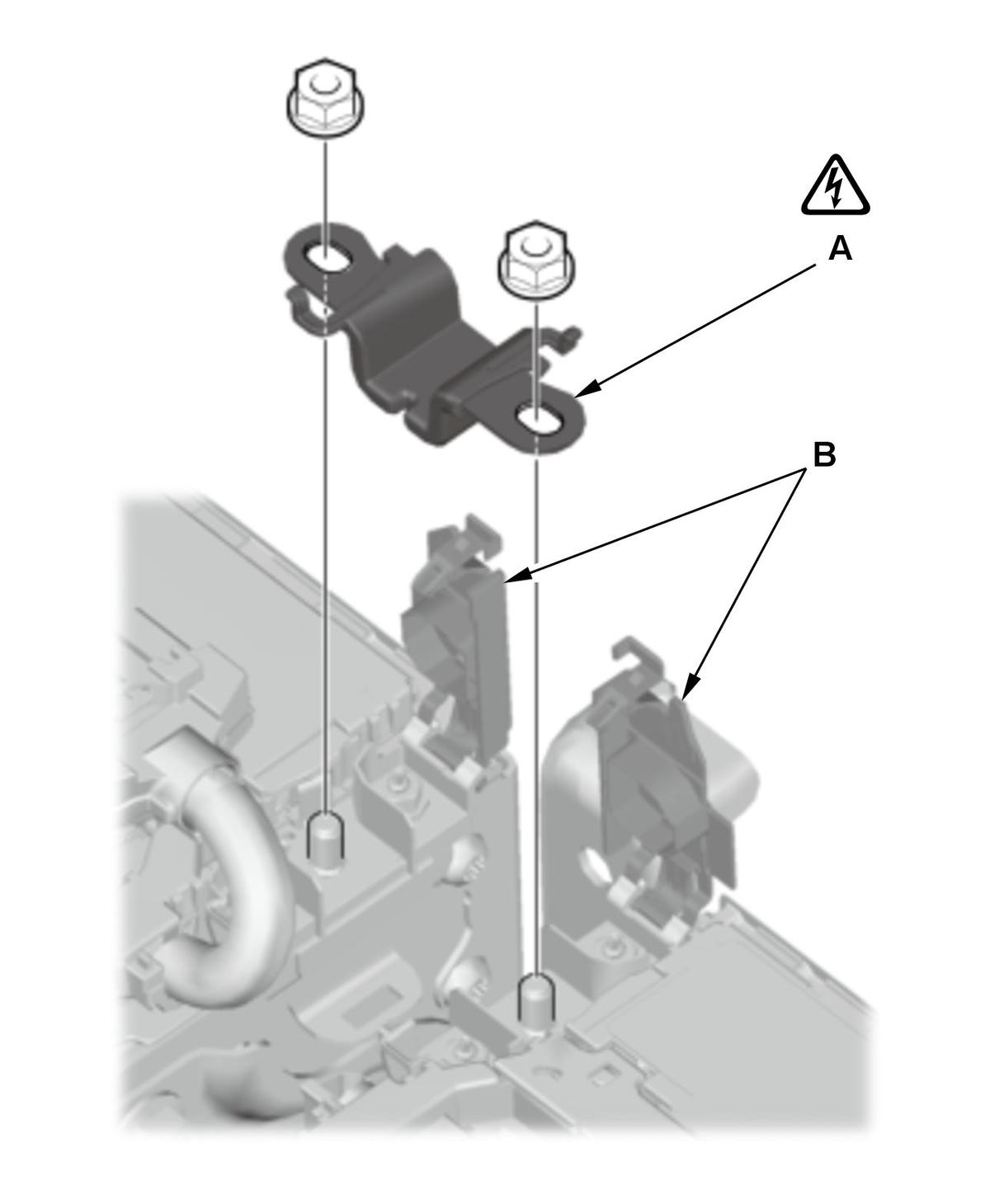

    		 3. Install the busbar A.

    4. Close the terminal covers (B).
  9. High Voltage Battery Module Temperature Sensor A - Install

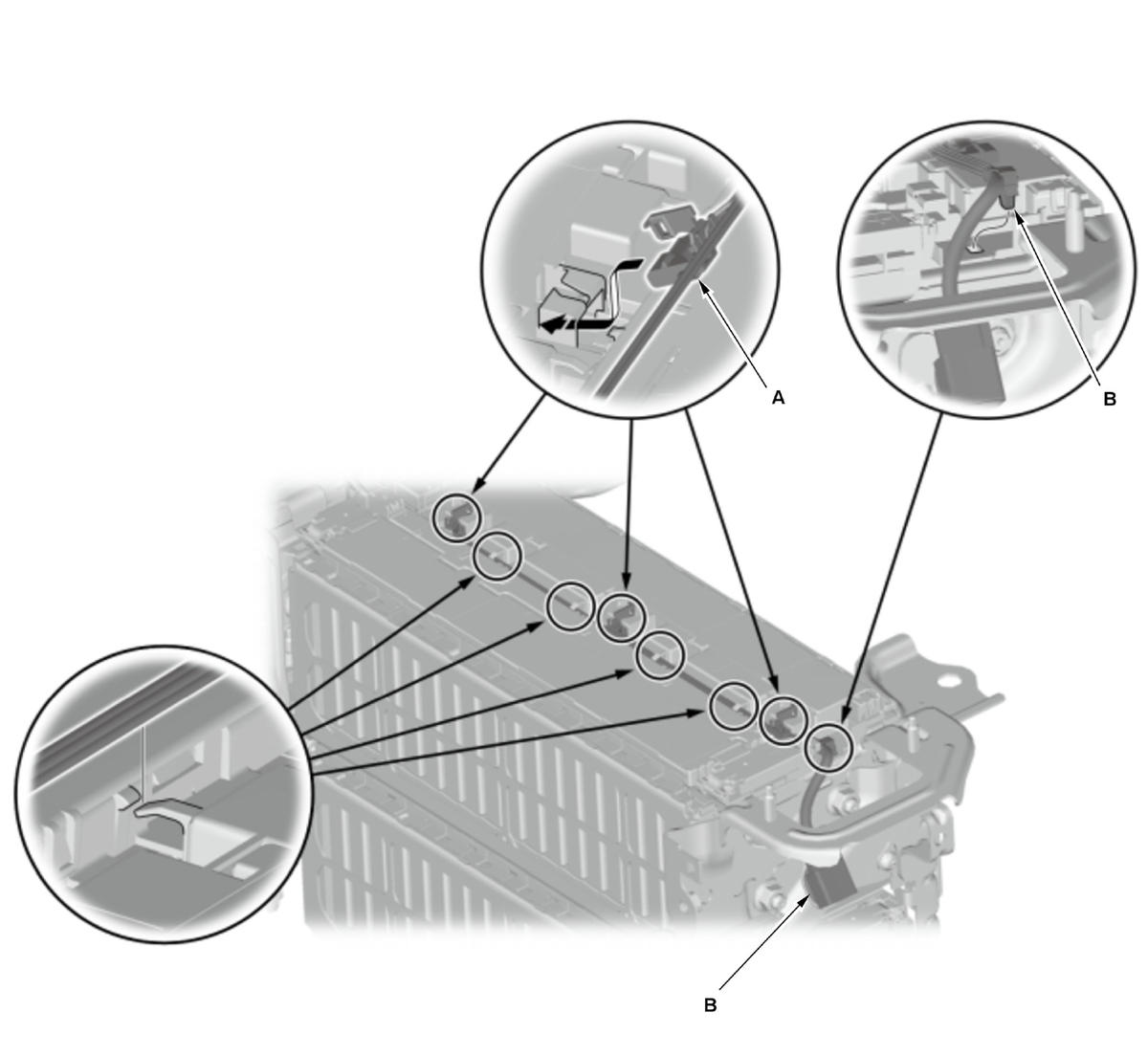

    1. Install the high voltage battery module temperature sensor A.

    GHH384165Courtesy of HONDA, U.S.A., INC.

    2. Install the clips (B).

  10. Service Plug Base - Install

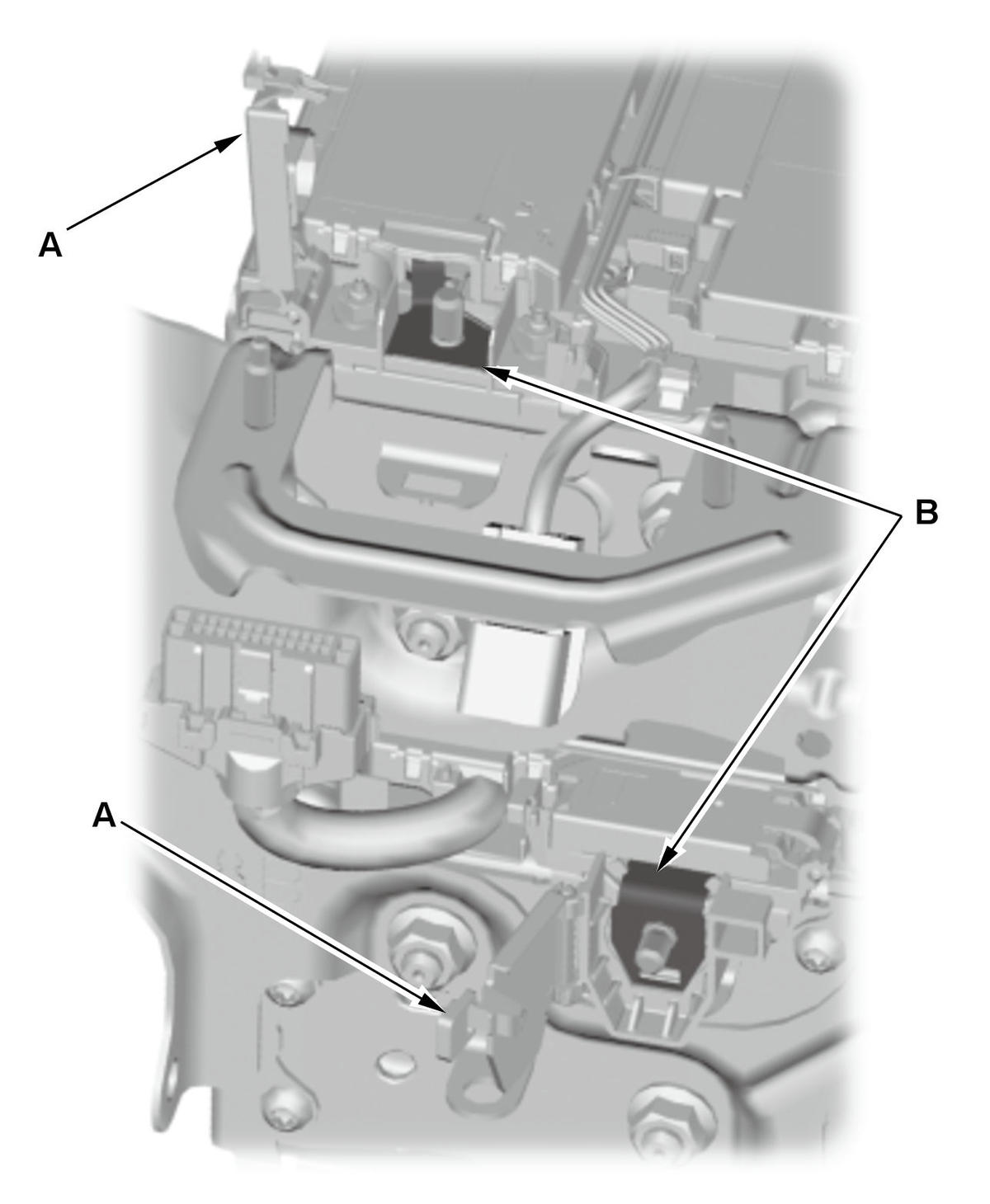

    GHH384166Courtesy of HONDA, U.S.A., INC.
    		 NOTE:  Check that the voltage between the terminals are normal before installing the service plug base.

    1. Open the terminal covers (A).

    2. Measure the voltage between the terminals (B).
    Standard:  1 V or less

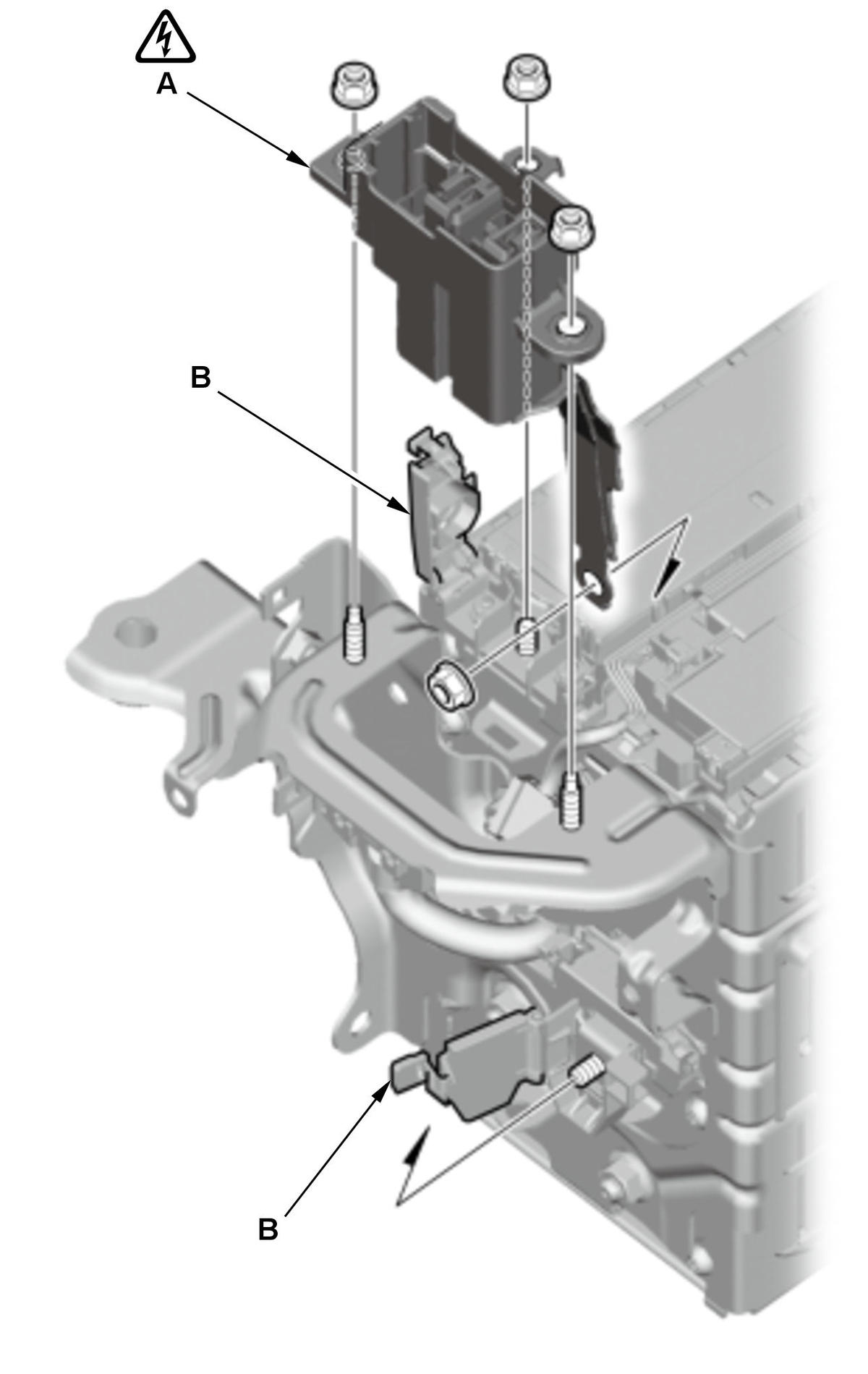

    GHH384167Courtesy of HONDA, U.S.A., INC.
    		 3. Install the service plug base (A).

    4. Close the terminal covers (B).
