Battery Pack: Disassembly: Procedure

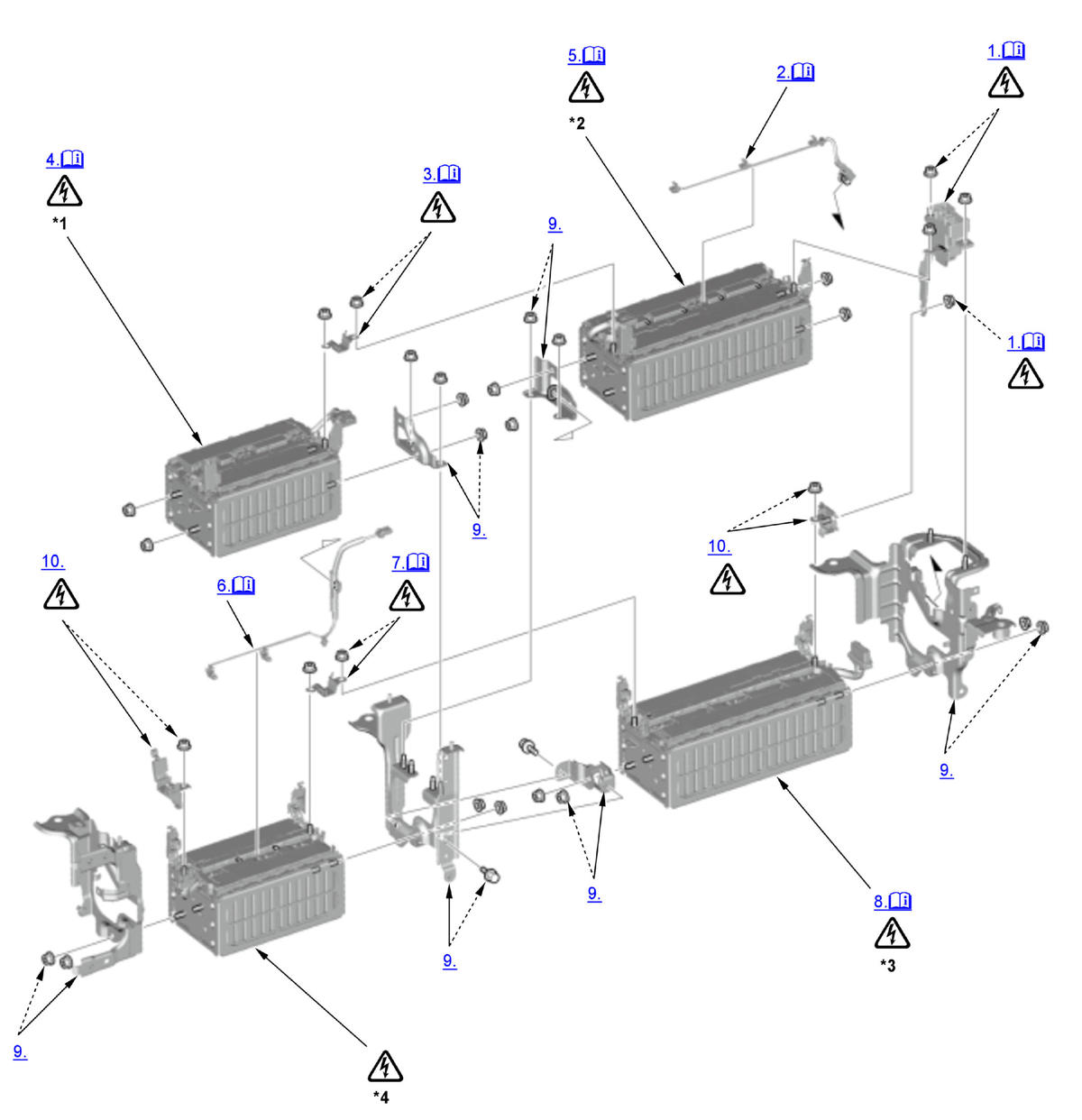

GHH384147Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
*1 Battery module 1
*2 Battery module 2
*3 Battery module 3
*4 Battery module 4
  1. Service Plug Base - Remove

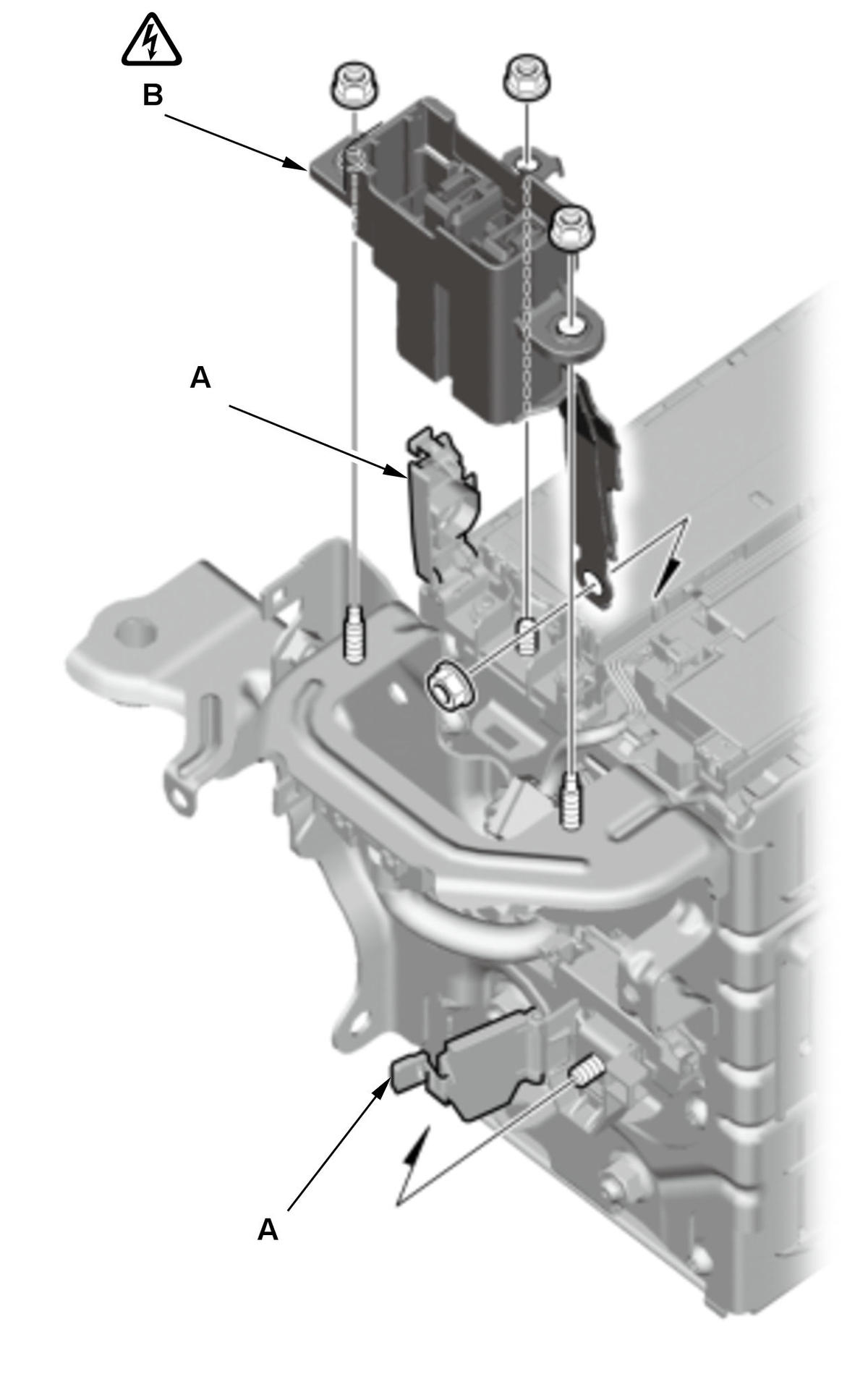

    GHH384148Courtesy of HONDA, U.S.A., INC.
    		 1. Open the terminal covers (A).

    2. Remove the service plug base (B).

    NOTE:  Never reuse a bent or damaged busbar.

    3. Close the terminal covers.

    NOTE:  Keep the terminal covers closed when you are not working on them.

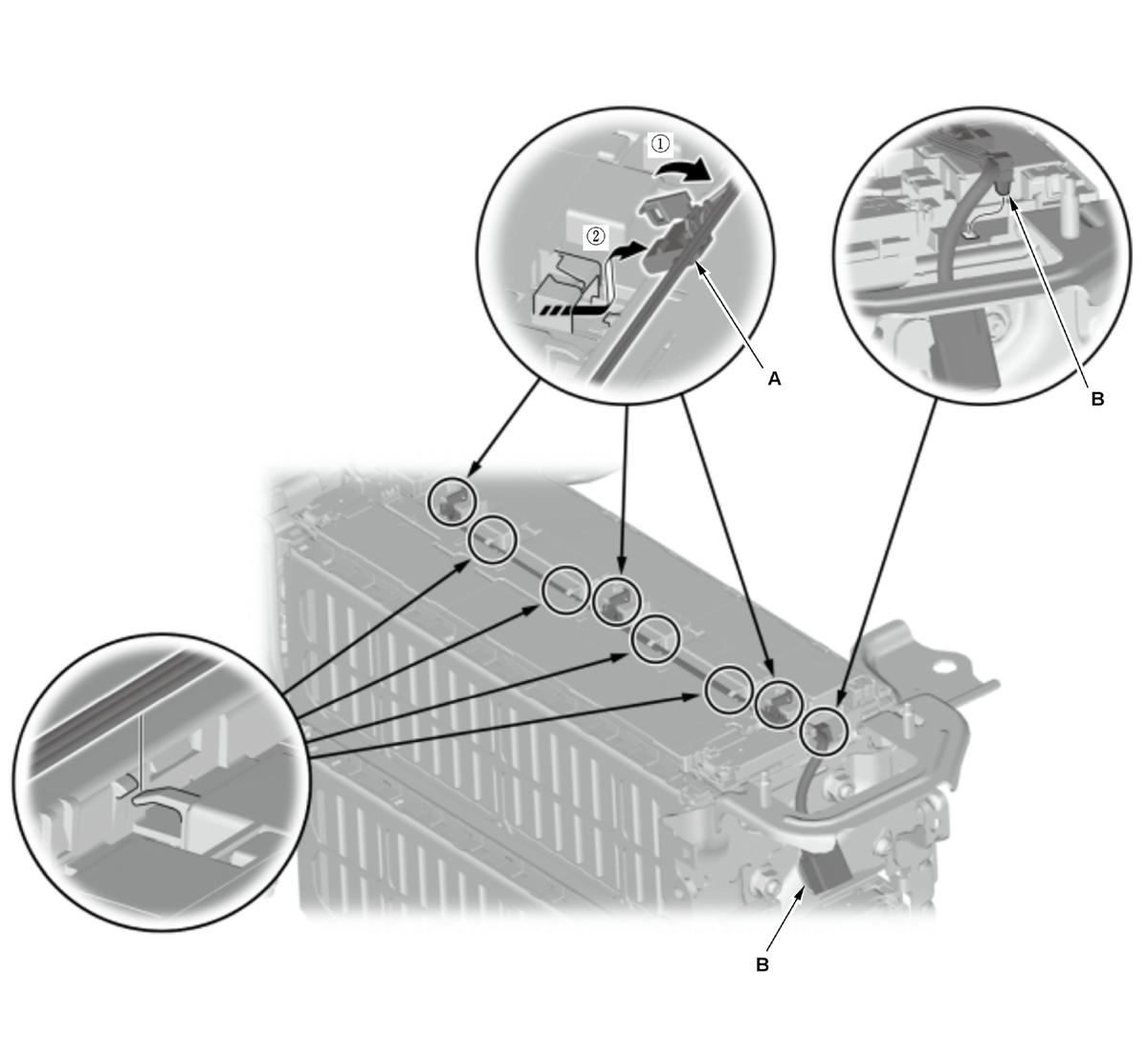

  2. High Voltage Battery Module Temperature Sensor A - Remove

    1. Remove the clips (B).

    GHH384149Courtesy of HONDA, U.S.A., INC.

    2. Remove the high voltage battery module temperature sensor A.

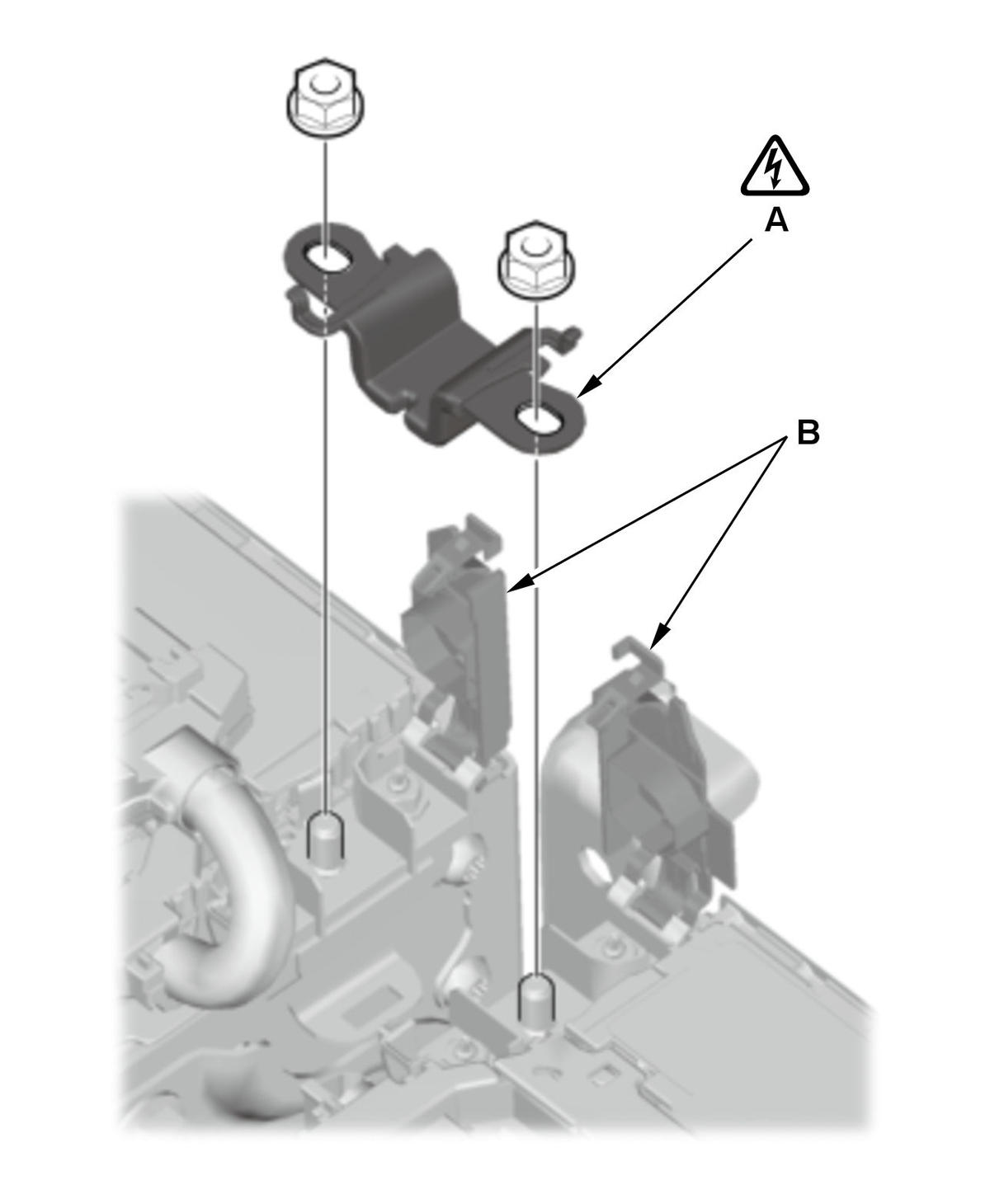

  3. Busbar A - Remove
    GHH384150Courtesy of HONDA, U.S.A., INC.
    		 1. Open the terminal covers (B).

    2. Remove the busbar A.

    NOTE:  Never reuse a bent or damaged busbar.

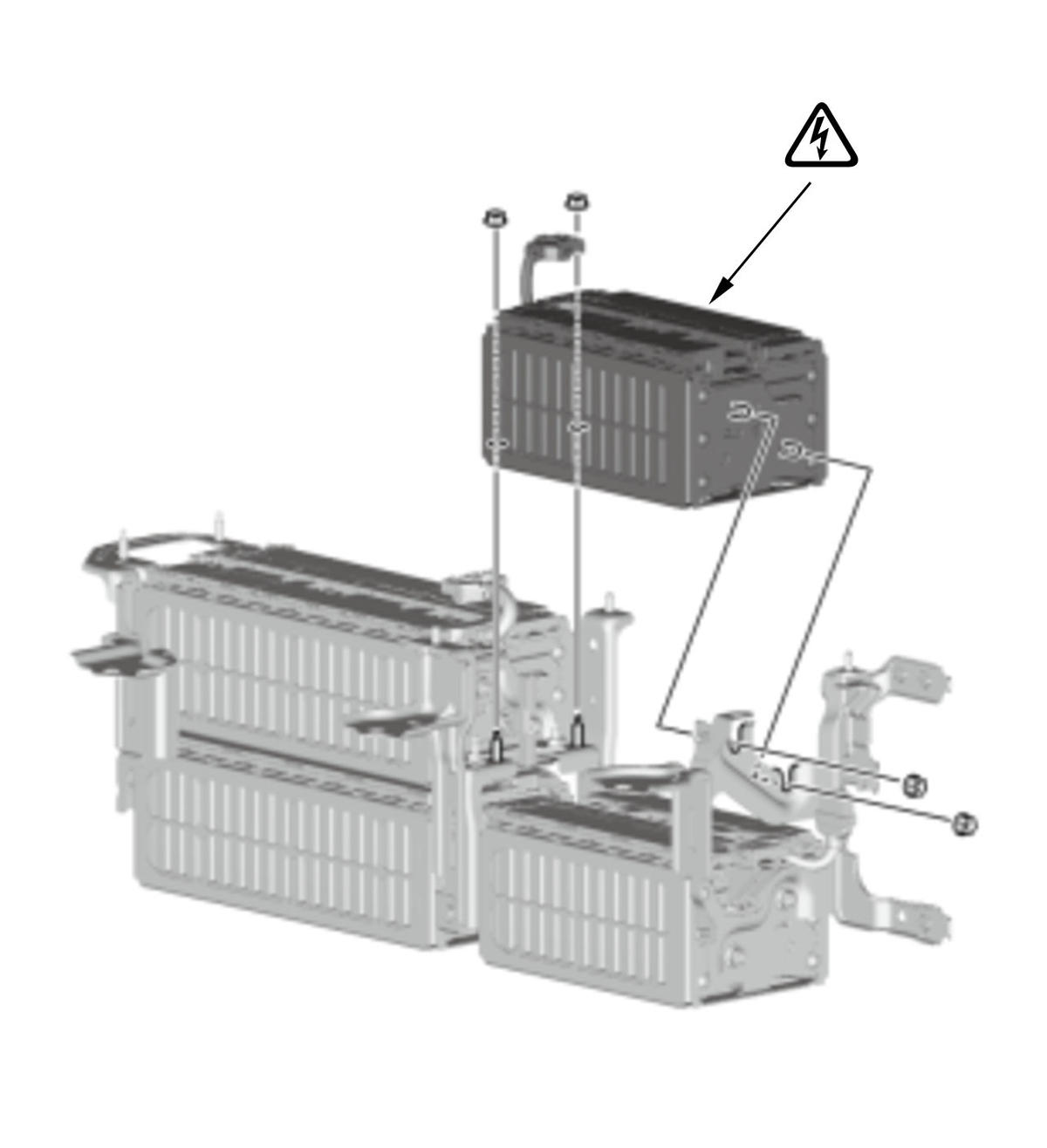

  4. Battery Module 1 - Remove
    GHH384151Courtesy of HONDA, U.S.A., INC.

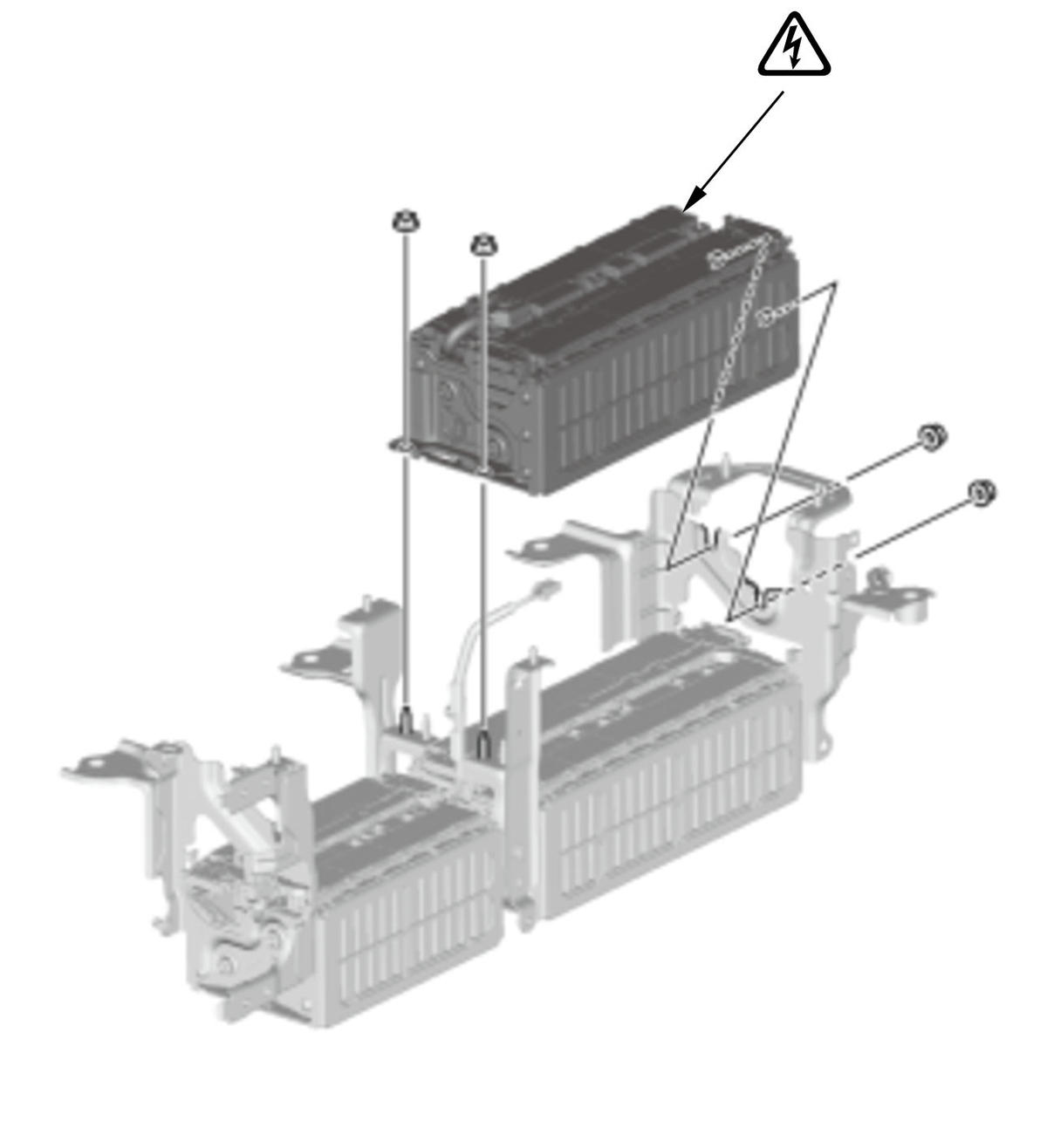

  5. Battery Module 2 - Remove
    GHH384152Courtesy of HONDA, U.S.A., INC.

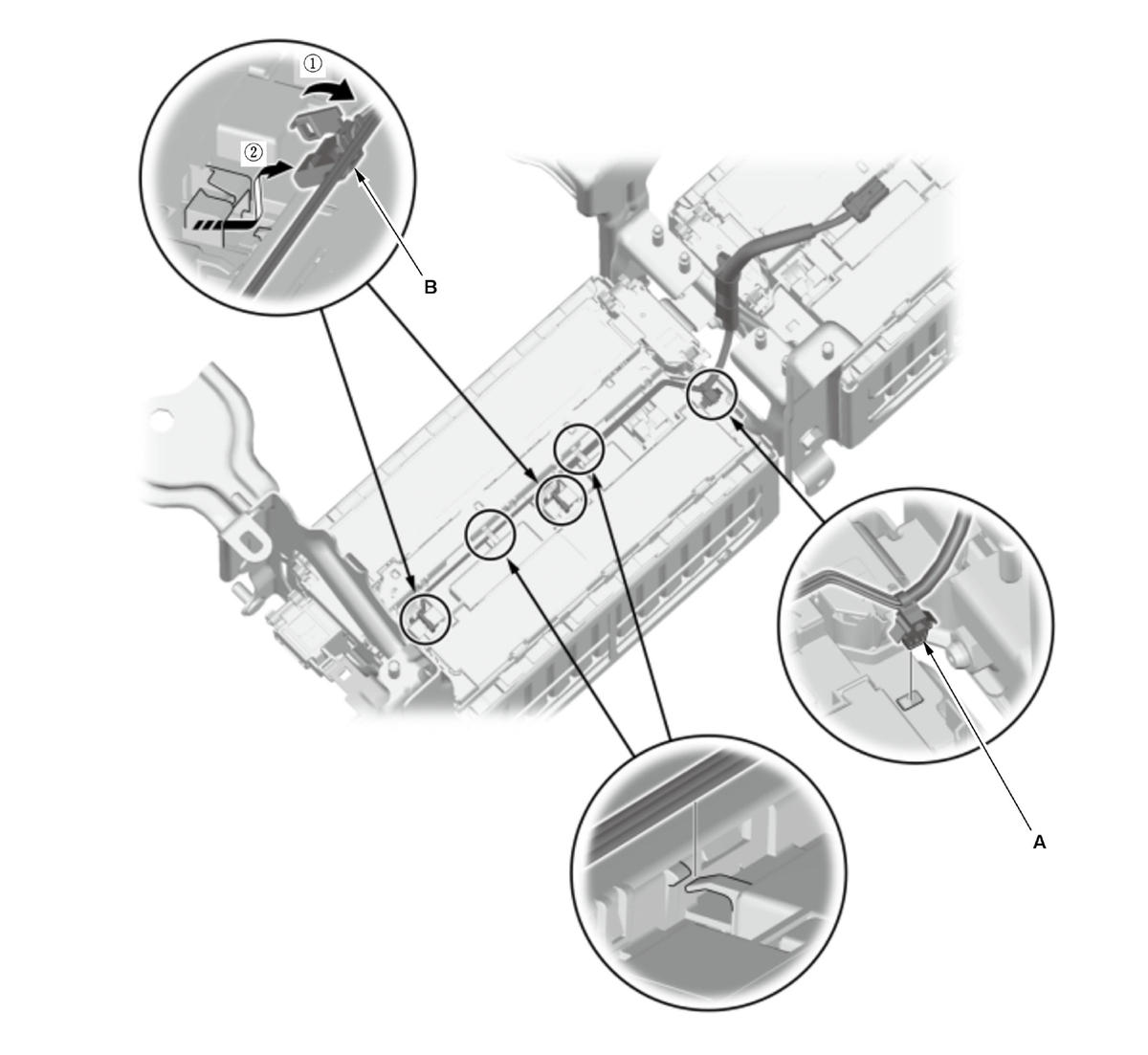

  6. High Voltage Battery Module Temperature Sensor B - Remove

    1. Remove the clip (A).

    GHH384153Courtesy of HONDA, U.S.A., INC.

    2. Remove the high voltage battery module temperature sensor B.

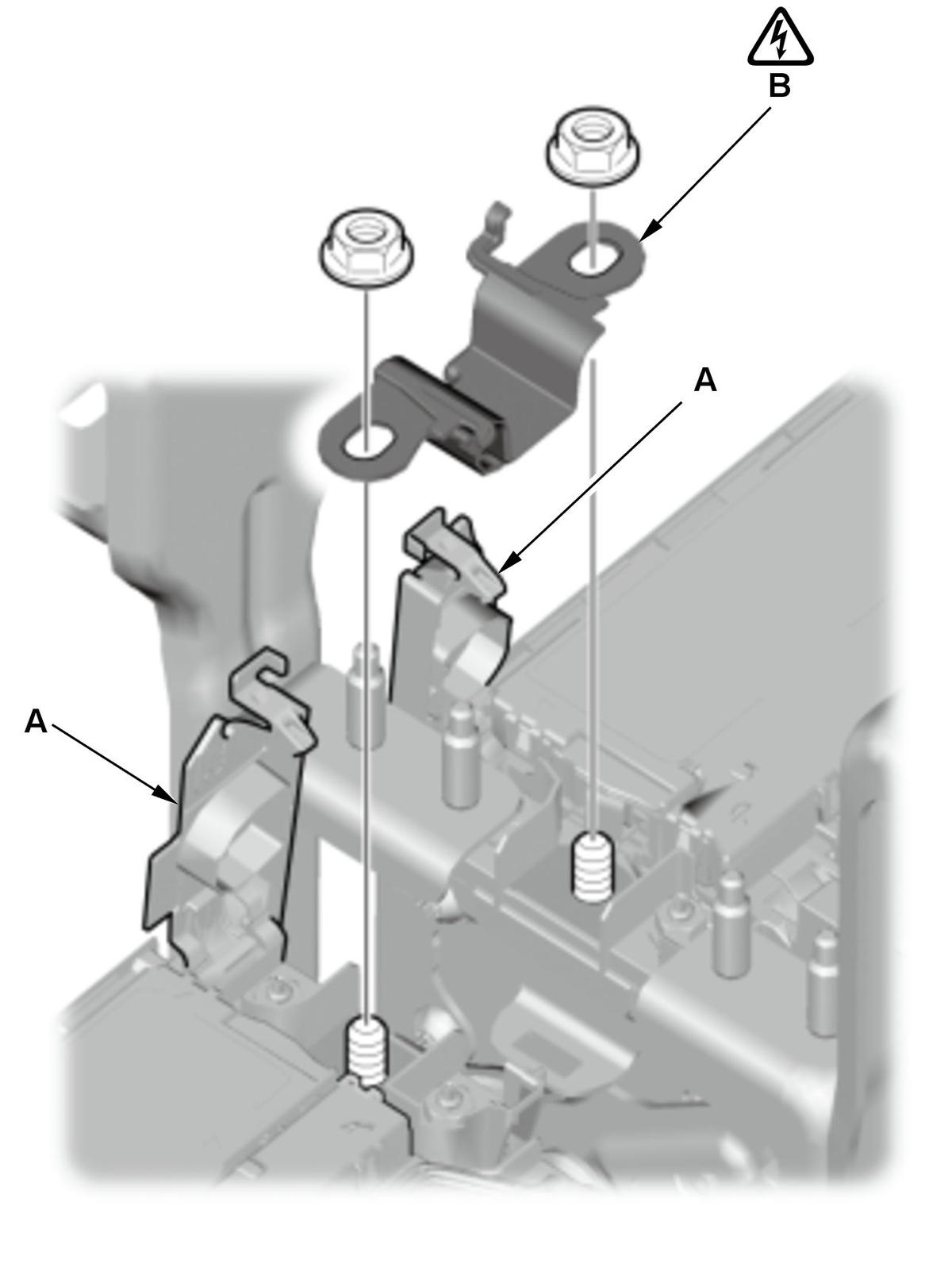

  7. Busbar B - Remove
    GHH384154Courtesy of HONDA, U.S.A., INC.
    		 1. Open the terminal covers (A).

    2. Remove the busbar B.

    NOTE:  Never reuse a bent or damaged busbar.

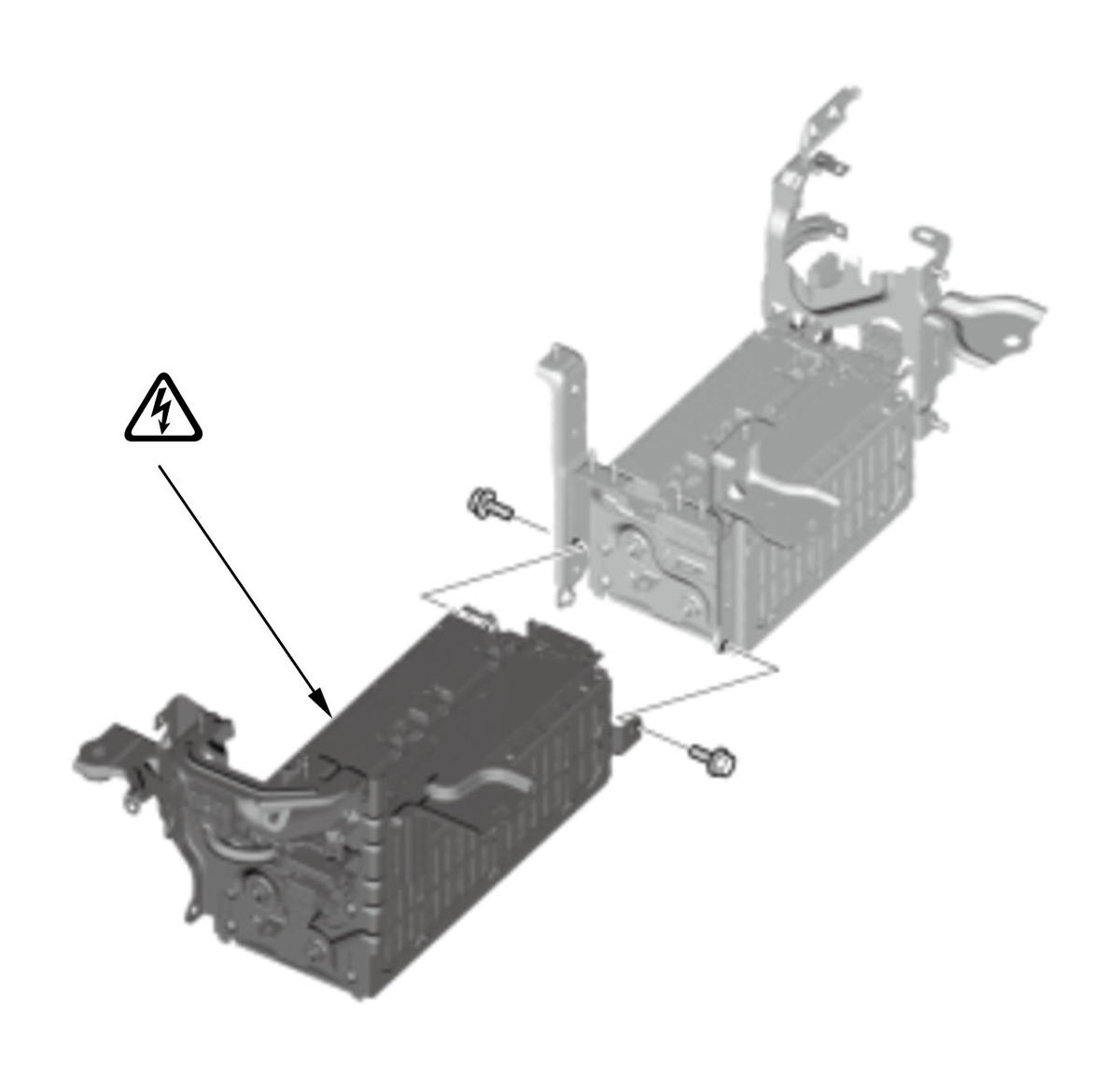

  8. Battery Module 3 - Remove
    GHH384155Courtesy of HONDA, U.S.A., INC.
  9. Battery Module Bracket - Remove
  10. Battery Module Terminal - Remove
