Unit Check (Quick Check): USB

This diagnosis displays the USB device status that is connected to the audio-navigation unit.

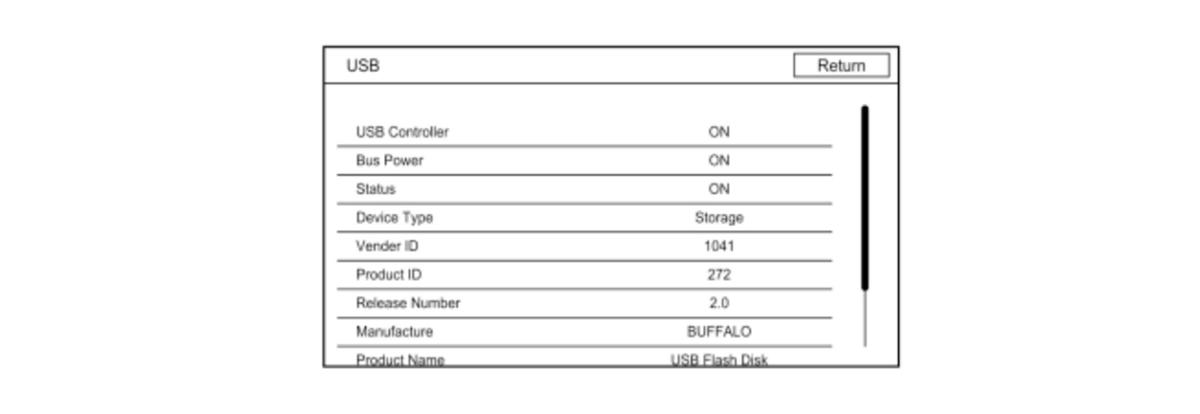

If the USB memory device is connected to the USB port A or B, the screen displays the USB controller status, the Bus power status, and the device status.

When you connect a USB mass storage device, you can see the capacity used and the amount of free space available.
