Remote Tuner
NOTE:
- For factory use only. Do not alter any settings unless directed.
- These items describe in indication order. Swipe the screen to check the next items.

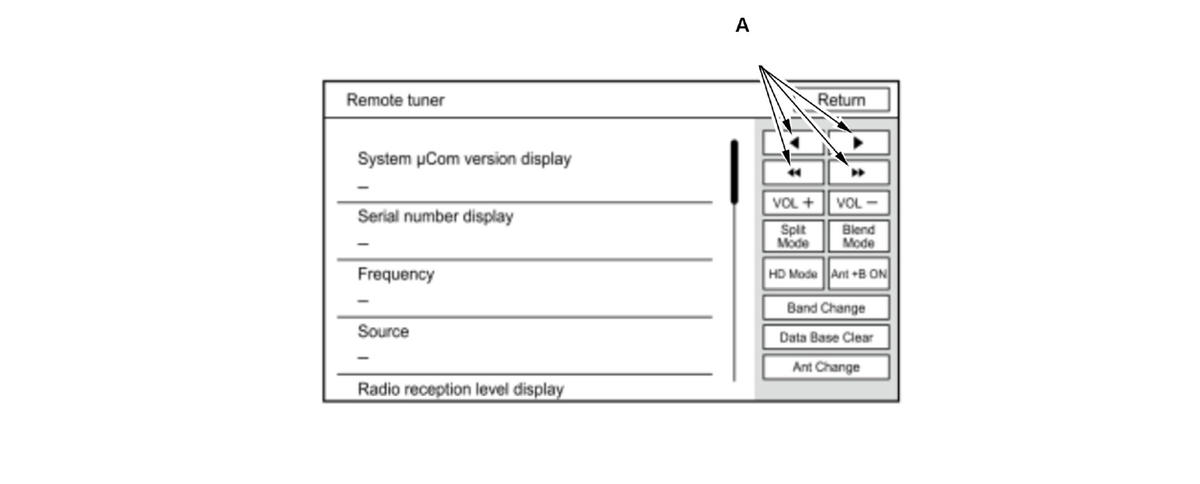

This diagnosis displays the external AM/FM radio tuner (tuner unit) status.
- System μCom version display: Displays the tuner unit processor version.
- Serial number display: Displays the tuner unit serial number. That should be the same as the serial number found on the upper side of the tuner unit.
- Frequency: Displays frequency of the radio station which is being received. Frequency can be changed by selecting each icon (A).
- Source can be changed in this order: AM->FM by selecting the Band Change icon.
- Radio reception level display: Displays radio reception level (dB). The AM/FM antenna power status can be changed to on or off by selecting the Ant +B OFF icon.
- Target Area: Displays the destination of the tuner unit at 2 digits.
- Operating status display: If the vehicle has diversity antenna, you can select the radio antenna function from M (Main), S (Sub), or P (Diversity).
- Displays the RBDS bit error ratio.
- Displays the AM or FM Sound/Noise ratio.
- Preset: Displays the number of AM or FM radio station presets.
- HD function: Displays if the HD function is available (YES) or not available (NO).
- VOL: Displays the current volume level.
- Split Mode: Displays the split mode on or off. That can be changed by selecting the Split Mode icon.
- Blend Mode: Displays the blend mode which is being received. The blend mode can be changed to AUTO/ANALOG/DIGITAL by selecting the Blend Mode icon.
- HD Mode: Displays the HD mode status (ON: HD, OFF: analog) and frequency of the radio station which is being received. That can be changed by selecting the HD Mode icon.
