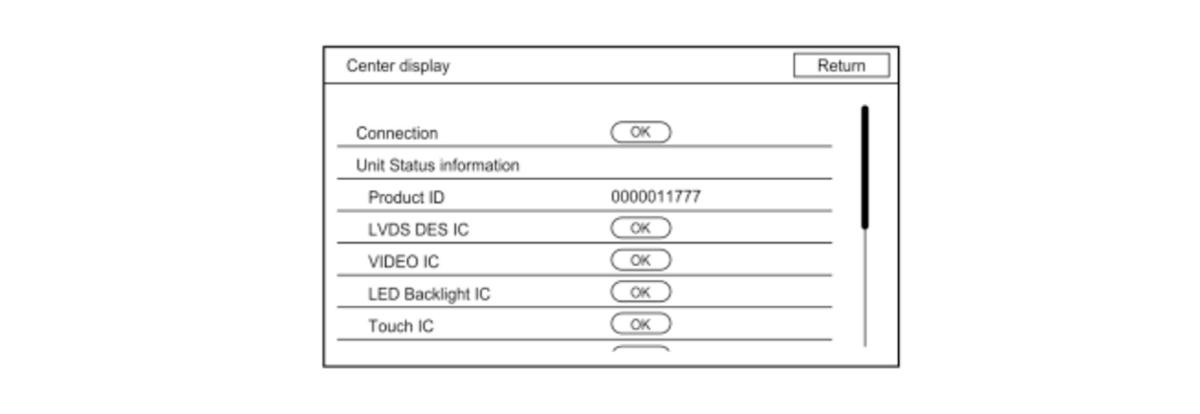

Center display

These items describe in indication order. Swipe the screen to check the next items.

This diagnosis checks the digital bus (LVDS1) connection between the audio-navigation unit and the center display unit, and displays the center display unit status.

• Connection: Checks the digital bus (LVDS1) between the audio-navigation unit and the center display unit. This item should indicate OK.
• Unit Status Information: Indicates the center display unit processor status. If any of the status indicates NG, turn the vehicle to the OFF (LOCK) mode then the ON mode, and recheck the status. If the status still indicates NG, replace the center display unit .
• Unit Version Information: Displays the center display unit various version number.
