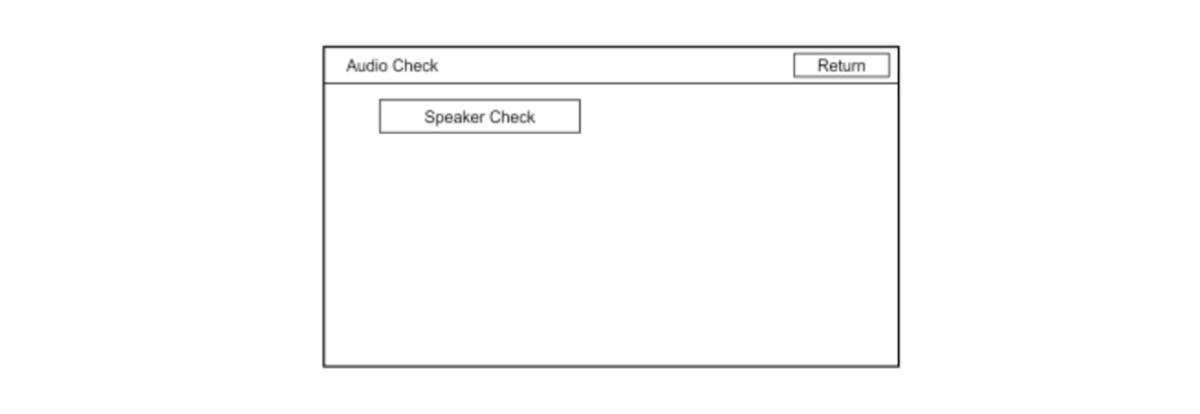

Audio Check

These screens allow you to troubleshoot the audio function. Select the Speaker Check icon.

Courtesy of HONDA, U.S.A., INC.

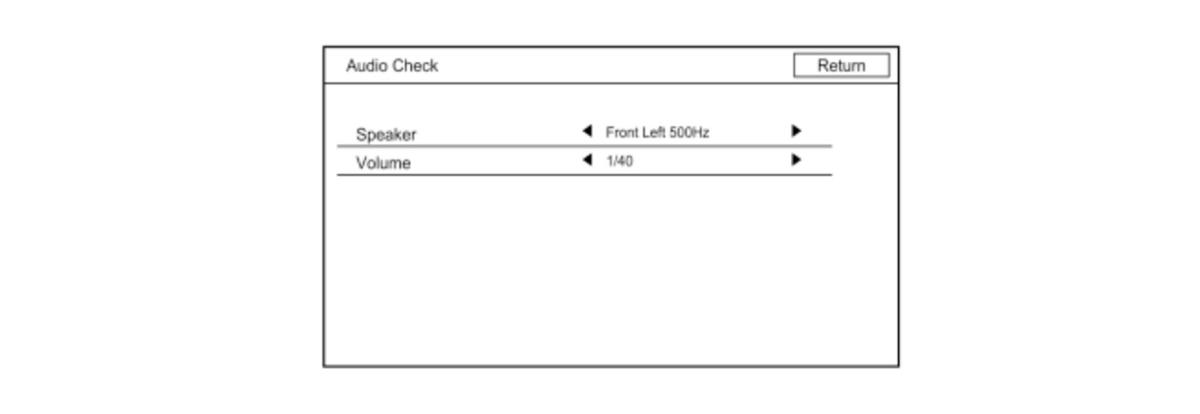

Speaker Check

NOTE:

Make sure the audio system is off before this diagnosis.
While doing the diagnosis, the fader and the balance positions are set to the center.

This diagnosis checks the audio speakers individually.

Select the UP icon or the Down icon to check speakers. A tone should sound from the speaker.

When you select the Up icon, the system checks the speakers in this order:

→

When you select the Down icon, the system checks the speakers in this order:

→

	Display Message	Vehicle Test Condition
	Front Left	You should hear a tone from the driver's door speaker.
	Front Right	You should hear a tone from the front passenger's door speaker.
	Surround Left	You should hear a tone from the left rear speaker.
	Surround Right	You should hear a tone from the right rear speaker.
	Center	You should hear a tone from the front center speaker.
	Subwoofer	You should hear a tone from the subwoofer.
	Front Tweeter Left	You should hear a tone from the left door tweeter.
	Front Tweeter Right	You should hear a tone from the right door tweeter.
	Surround Tweeter Left	You should hear a tone from the left rear tweeter.
	Surround Tweeter Right	You should hear a tone from the right rear tweeter.
	ALL Channel	You should hear a tone from all speakers.
