Paddle Shifter Circuit Troubleshooting

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

NOTE:  Information marked with an asterisk (*1) applies to the paddle shifter + line, and an asterisk (*2) applies to the paddle shifter - line.

1. Problem verification

   -1. Connect the HDS to the DLC .

   -2. Turn the vehicle to the ON mode.

   -3. Check the parameter (s) below with the HDS when repeatedly pressing and releasing the paddle shifter.

   Signal	Current conditions
   	Values	Unit
   Upshift Switch (ST)
   Downshift Switch (ST)

   Is ON indicated when you are pressing the paddle shifter and OFF with the paddle shifter released?

   YES

   Intermittent failure, the system is OK at this time.

   NO

   The failure is duplicated. Go to step 2.

2. Paddle shifter check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the paddle shifter .

   -3. Test the paddle shifter .

   Is the paddle shifter OK?

   YES

   The paddle shifter is OK. Go to step 3.

   NO

   Replace the paddle shifter .

3. Determine possible failure area (PADDLE SW UP line* 1/PADDLE SW DOWN line* 2, others):-1.

   Temporarily install the steering wheel, then connect the following connector.

   Cable reel connector C (20P)

   -2. Turn the vehicle to the ON mode.

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Paddle shifter + 4P connector* 1: disconnected
   	Paddle shifter - 4P connector* 2: disconnected

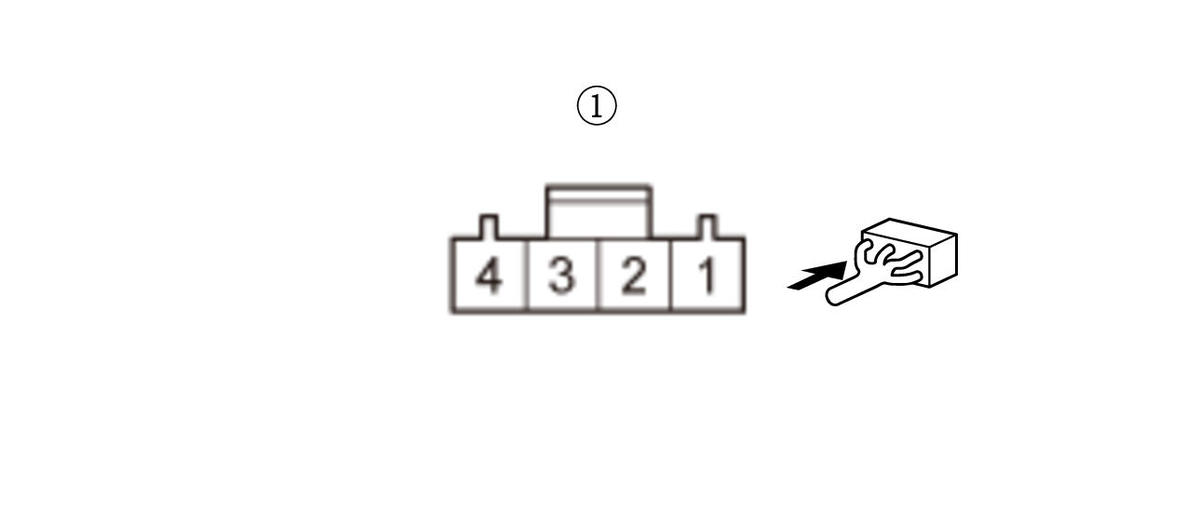

   Test point 1	Paddle shifter + 4P connector (female terminals) No. 2* 1:
   	Paddle shifter - 4P connector (female terminals) No. 3* 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 4.

   NO

   Go to step 5.

4. Open wire check (STRG GND/GND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + 4P connector* 1: disconnected
   	Paddle shifter - 4P connector* 2: disconnected
   Test point 1	Paddle shifter + 4P connector (female terminals) No. 4* 1:
   	Paddle shifter - 4P connector (female terminals) No. 1* 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The STRG GND/GND wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If the symptom goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the STRG GND/GND wire between the paddle shifter and ground (G403), or repair poor ground (G403).

5. Shorted wire check (PADDLE SW UP line* 1/PADDLE SW DOWN line* 2):-1.

   Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector A (50P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + 4P connector* 1: disconnected
   	Paddle shifter - 4P connector* 2: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	Paddle shifter + 4P connector (female terminals) No. 2* 1:
   	Paddle shifter - 4P connector (female terminals) No. 3* 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the PADDLE SW UP wire* 1/PADDLE SW DOWN wire* 2 between the paddle shifter and the PCM.

   NO

   The PADDLE SW UP wire* 1/PADDLE SW DOWN wire* 2 is not shorted. Go to step 6.

6. Open wire check (PADDLE SW UP line* 1/PADDLE SW DOWN line* 2):-1.

   Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + 4P connector* 1: disconnected
   	Paddle shifter - 4P connector* 2: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	Paddle shifter + 4P connector (female terminals) No. 2* 1:
   Test point 2	PCM connector A (50P) No. 12 * 1
   Test point 1	Paddle shifter - 4P connector (female terminals) No. 3* 2:
   Test point 2	PCM connector A (50P) No. 29 * 2

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The PADDLE SW UP wire* 1/PADDLE SW DOWN wire* 2 is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If the symptom goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the PADDLE SW UP wire* 1/PADDLE SW DOWN wire* 2 between the paddle shifter and the PCM.
