Exploded View

NOTE: How to read the torque specifications .

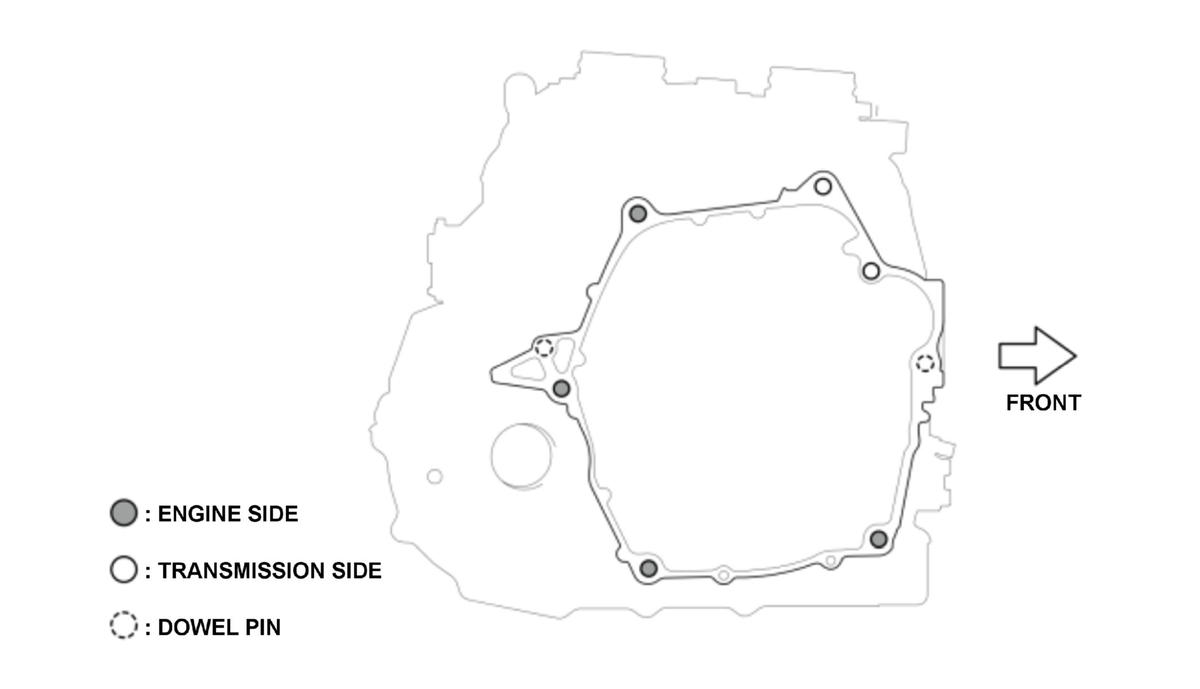

1. Transmission (e-CVT) Assembly Mounting Bolt

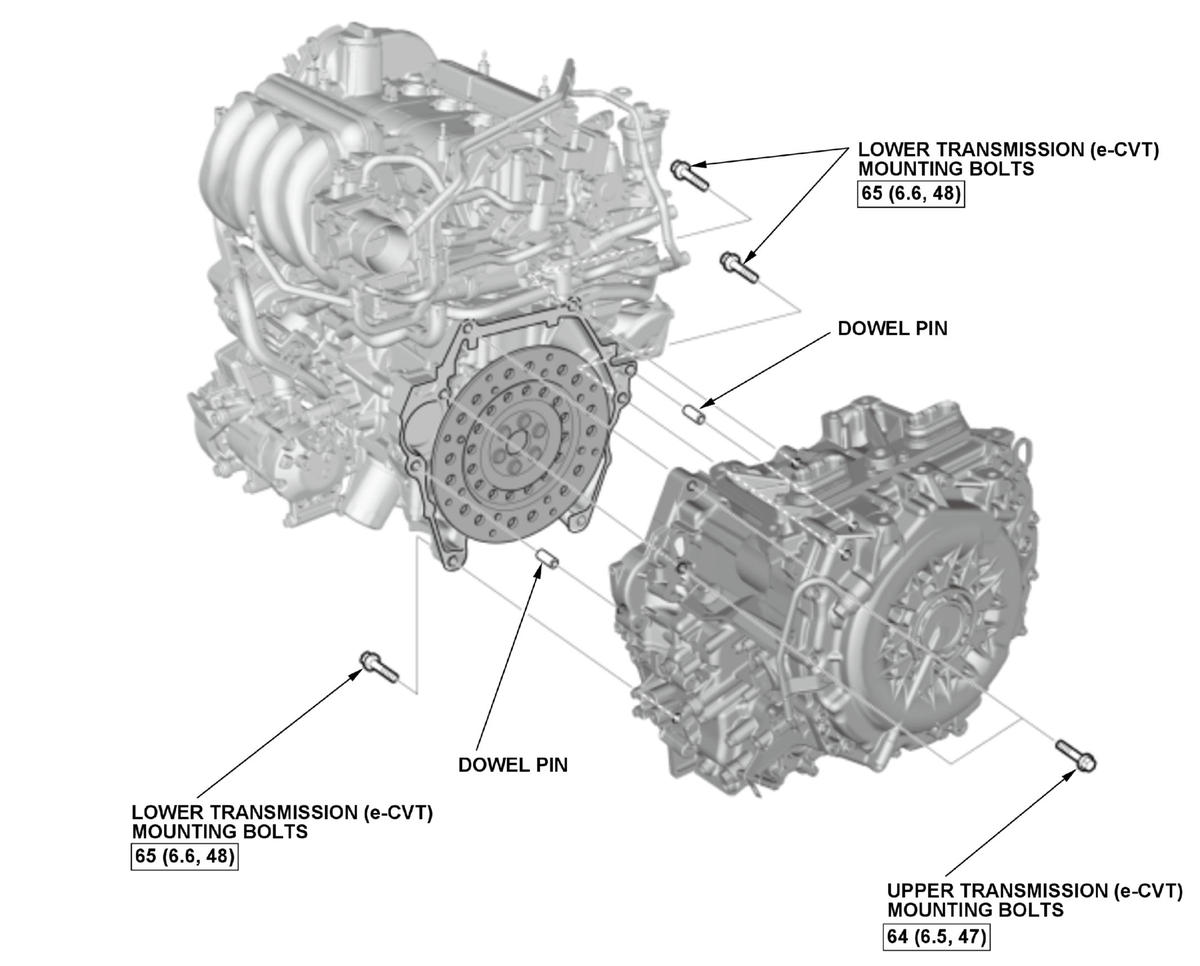

   Fig 1: Exploded View Of Transmission (e-CVT) Assembly With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.
