Transmission (e-CVT) Disassembly and Reassembly: Notes

Special Tools Required

Image	Description/Tool Number

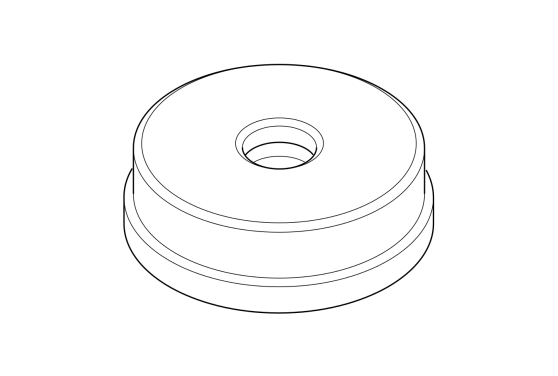

Courtesy of HONDA, U.S.A., INC.	Oil Seal Driver C 070AD-TZ3A300

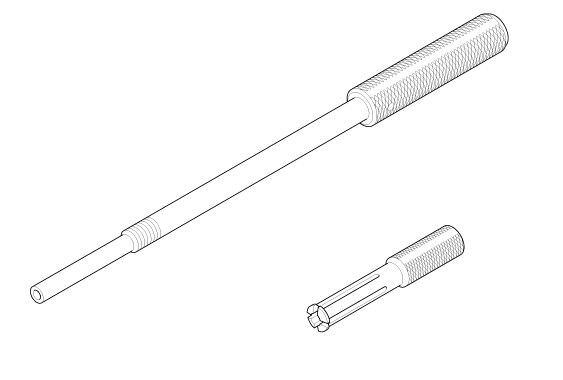

Courtesy of HONDA, U.S.A., INC.	Slide Hammer 07936-371020A

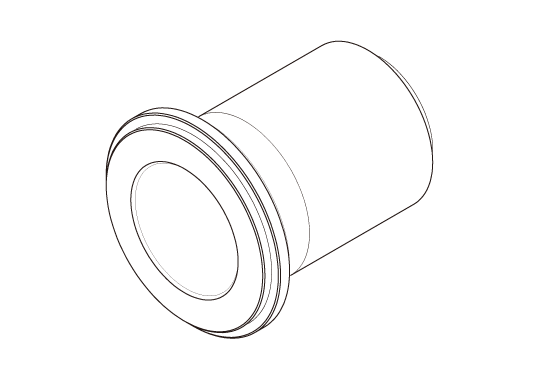

Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 42 x 47 mm 07746-0010300
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 62 x 68 mm 07746-0010500

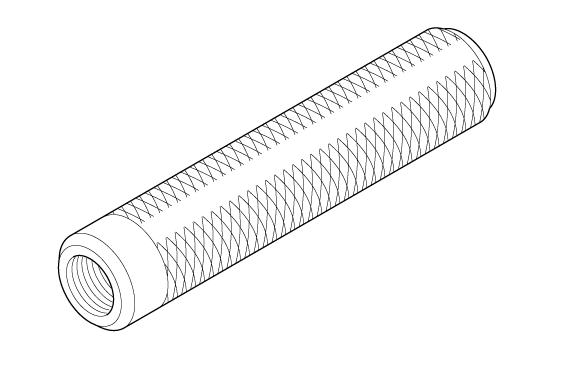

Courtesy of HONDA, U.S.A., INC.	Driver Handle, 15 x 135L 07749-0010000

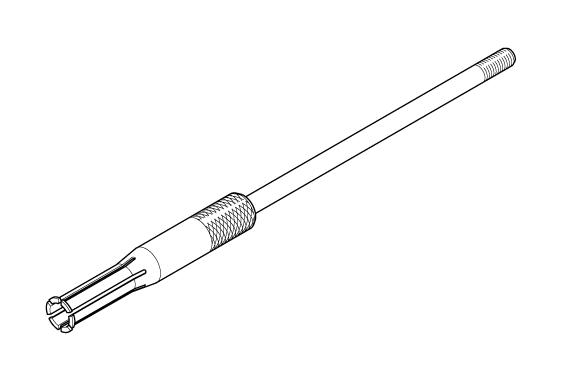

Courtesy of HONDA, U.S.A., INC.	Bearing Remover Shaft Set, 12 mm 07936-166010A
Courtesy of HONDA, U.S.A., INC.	Remover Handle 07936-3710100
Courtesy of HONDA, U.S.A., INC.	Bearing Remover Shaft Set, 20 mm 07936-3710600
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 28 x 30 mm 07946-1870100
Courtesy of HONDA, U.S.A., INC.	Oil Seal Driver Attachment, 64 x 72 mm 07JAD-PN00100
Courtesy of HONDA, U.S.A., INC.	Oil Seal Driver Attachment 07GAD-PG40100

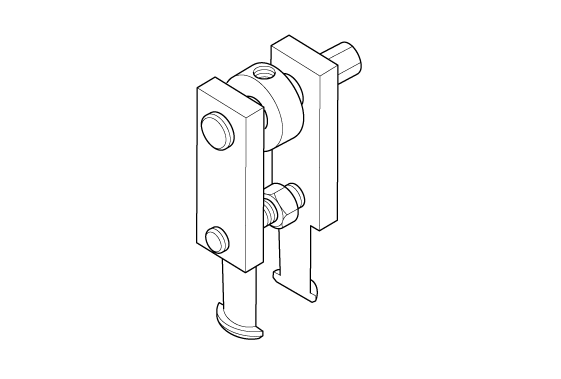

Courtesy of HONDA, U.S.A., INC.	Adjustable Bearing Puller, 45-75 mm 07YAC-0010102*
Courtesy of HONDA, U.S.A., INC.	Oil Seal Driver Attachment, 96 mm 07ZAD-PNA0100
Courtesy of HONDA, U.S.A., INC.	Driver Attachment 110 x 140mm 07ZMD-MCT0100

*: 07YAC-0010102 must be used with a commercially available 3/8"-16 slide hammer.
