Differential Disassembly and Reassembly: Reassembly

NOTE:  Where icon is shown, further information shown below.

Procedure

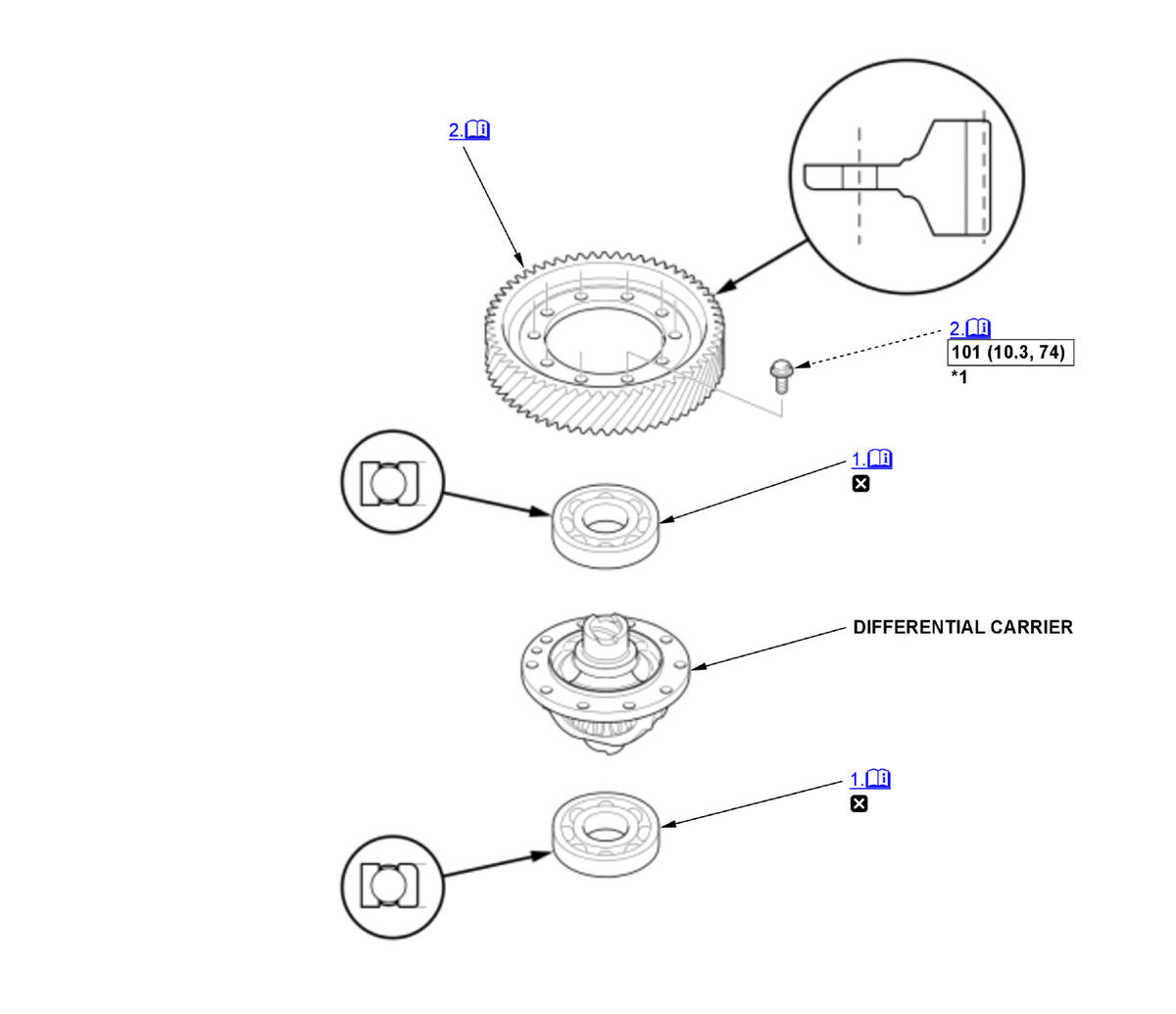

Fig 1: Differential Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	Left-hand threads

1. Differential Carrier Bearing - Install

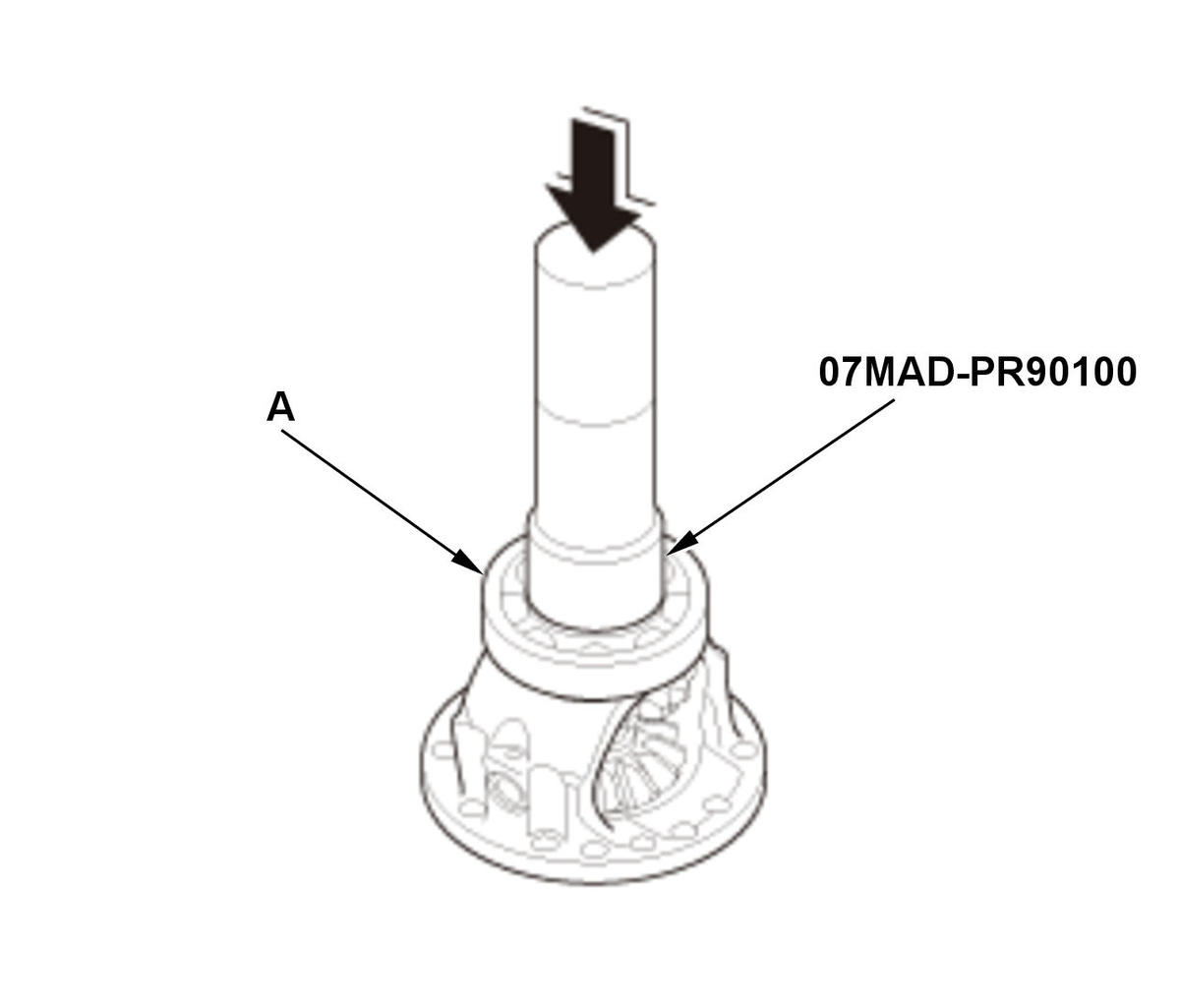

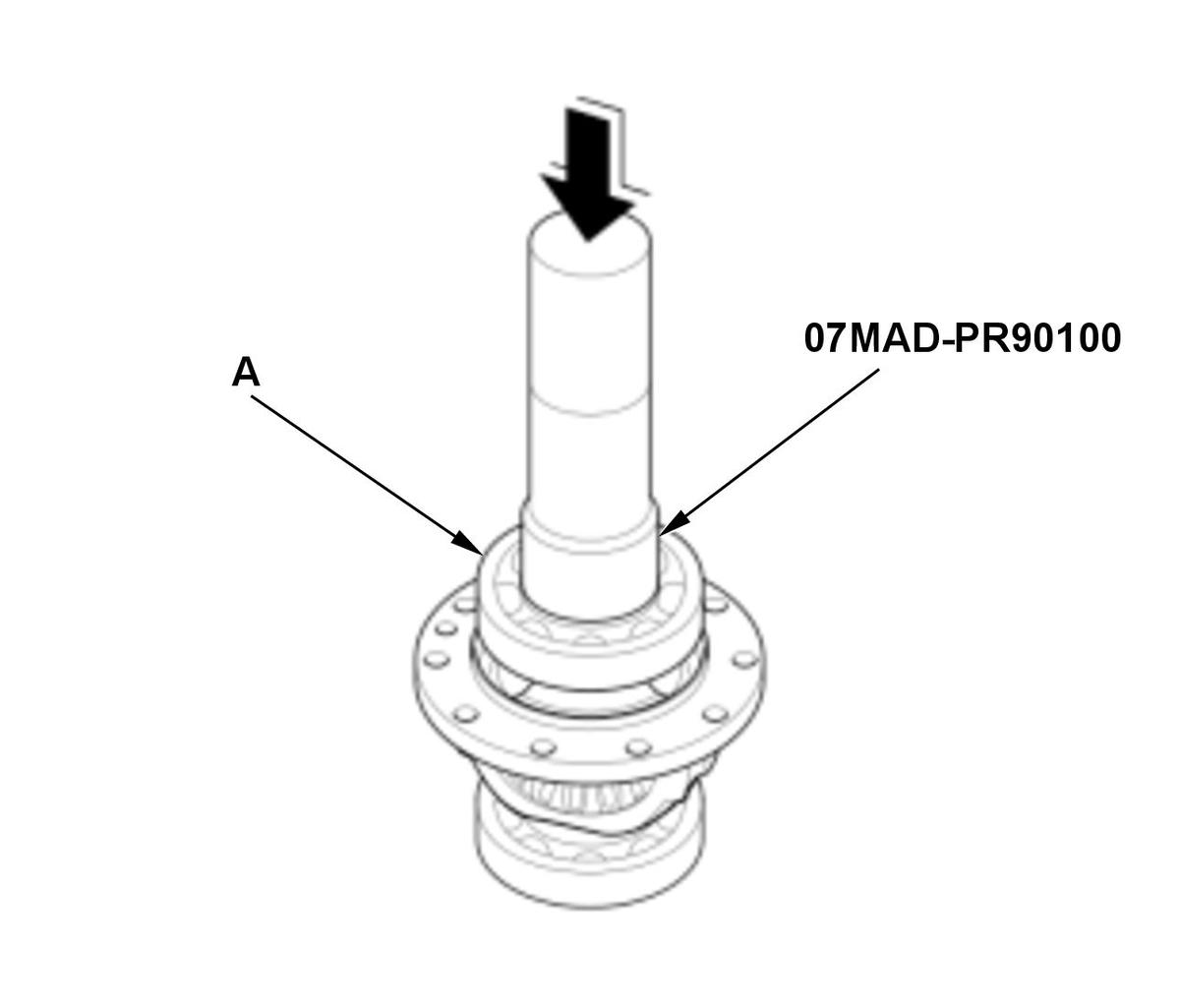

   Flywheel Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Transmission Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Install the differential carrier bearings (A) until it bottoms using the 45 x 55 mm installer attachment and a press. NOTE:  Make sure the differential carrier bearing is installed in the correct direction.

2. Final Driven Gear - Install

   NOTE:

   • Make sure the final driven gear is installed in the correct direction.
   • Tighten the bolts to the specified torque in a crisscross pattern in at least two steps.
