Differential Disassembly and Reassembly: Disassembly
NOTE:
Where icon is shown, further information shown below.

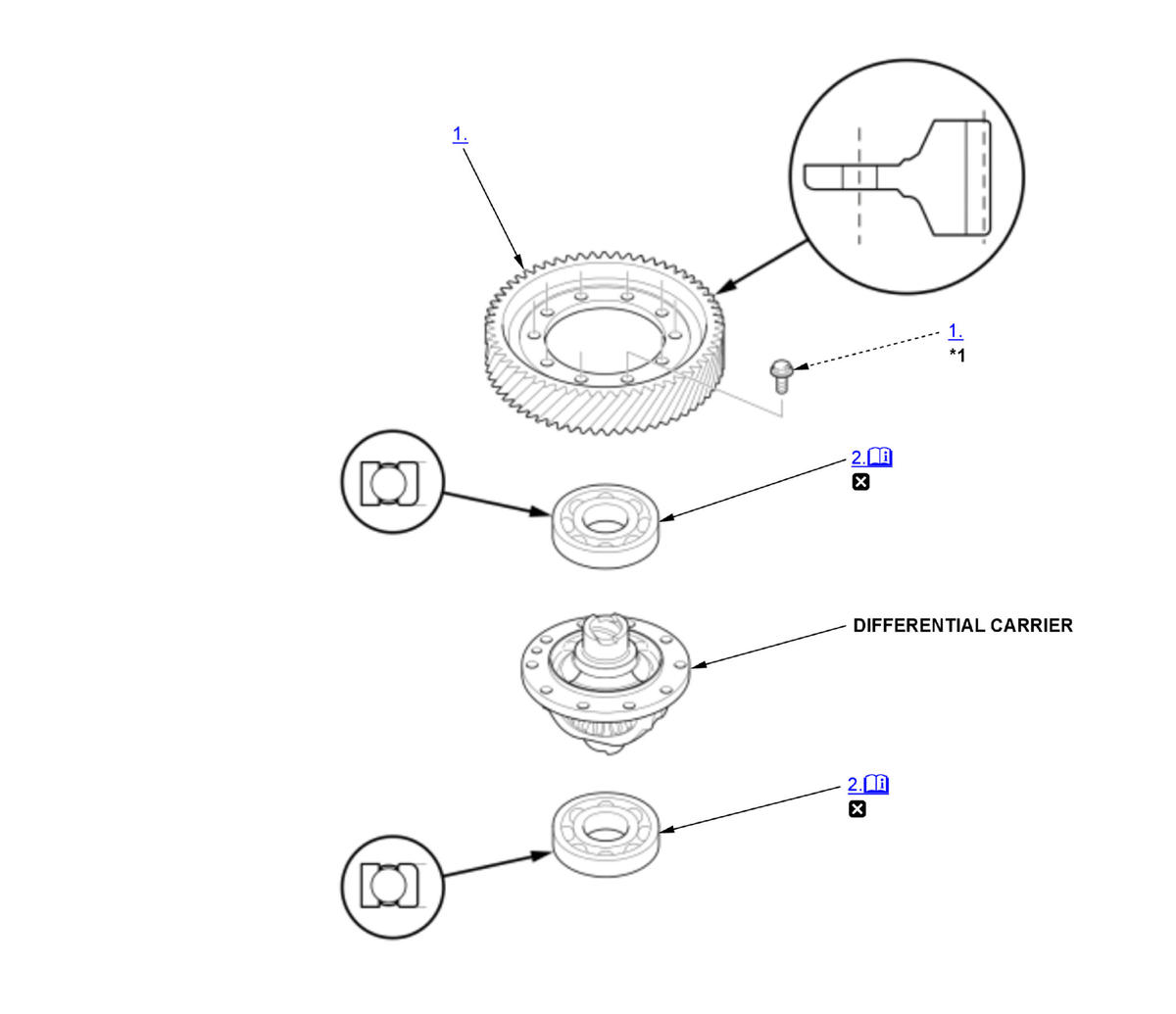

Procedure
 Courtesy of HONDA, U.S.A., INC.
|
|
Detailed information, notes, and precautions |
 |
Replace |
| *1 |
Left-hand threads |
- Final Driven Gear - Remove
- Differential Carrier Bearing - Remove

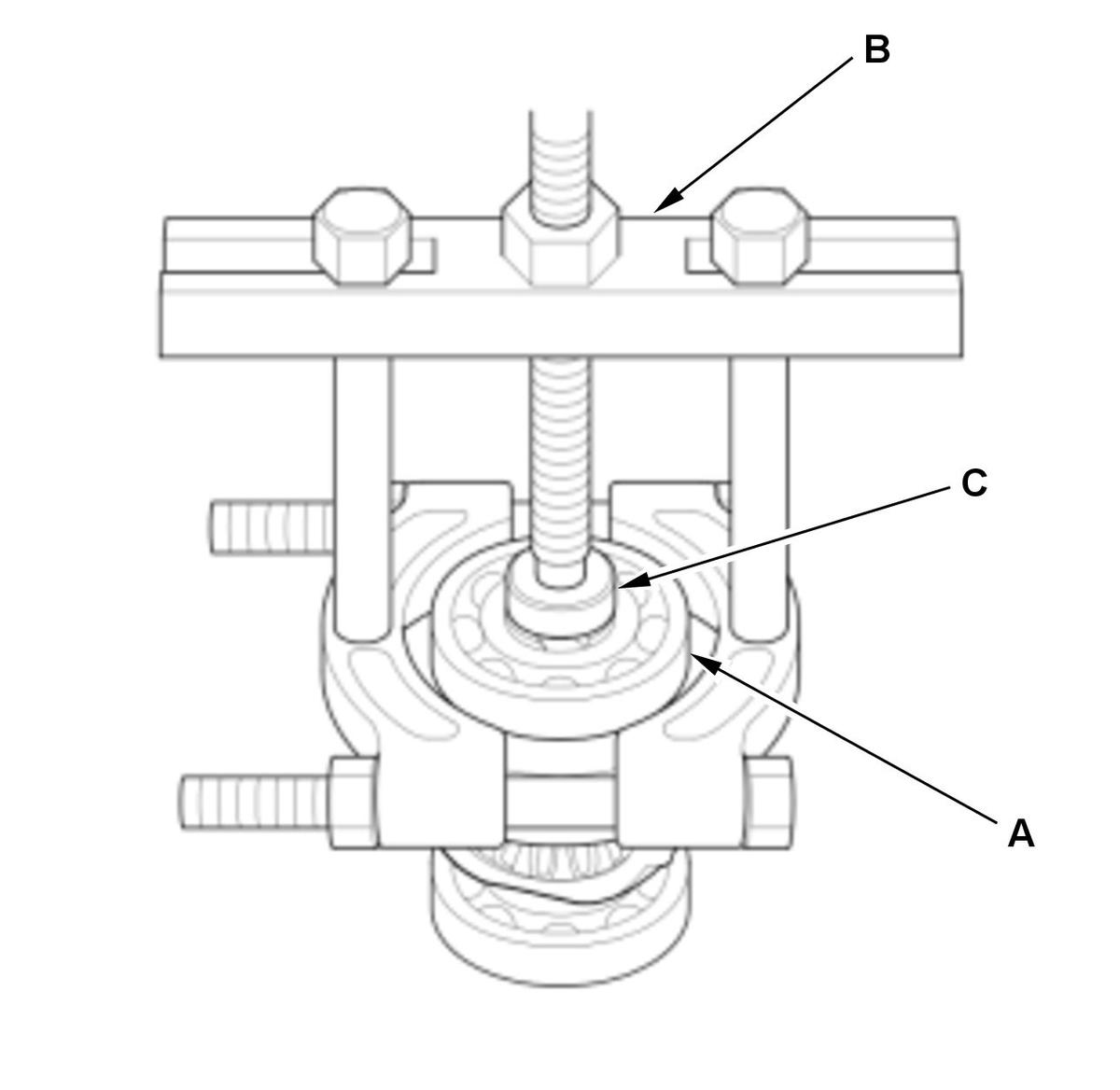

| Flywheel Housing Side
  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

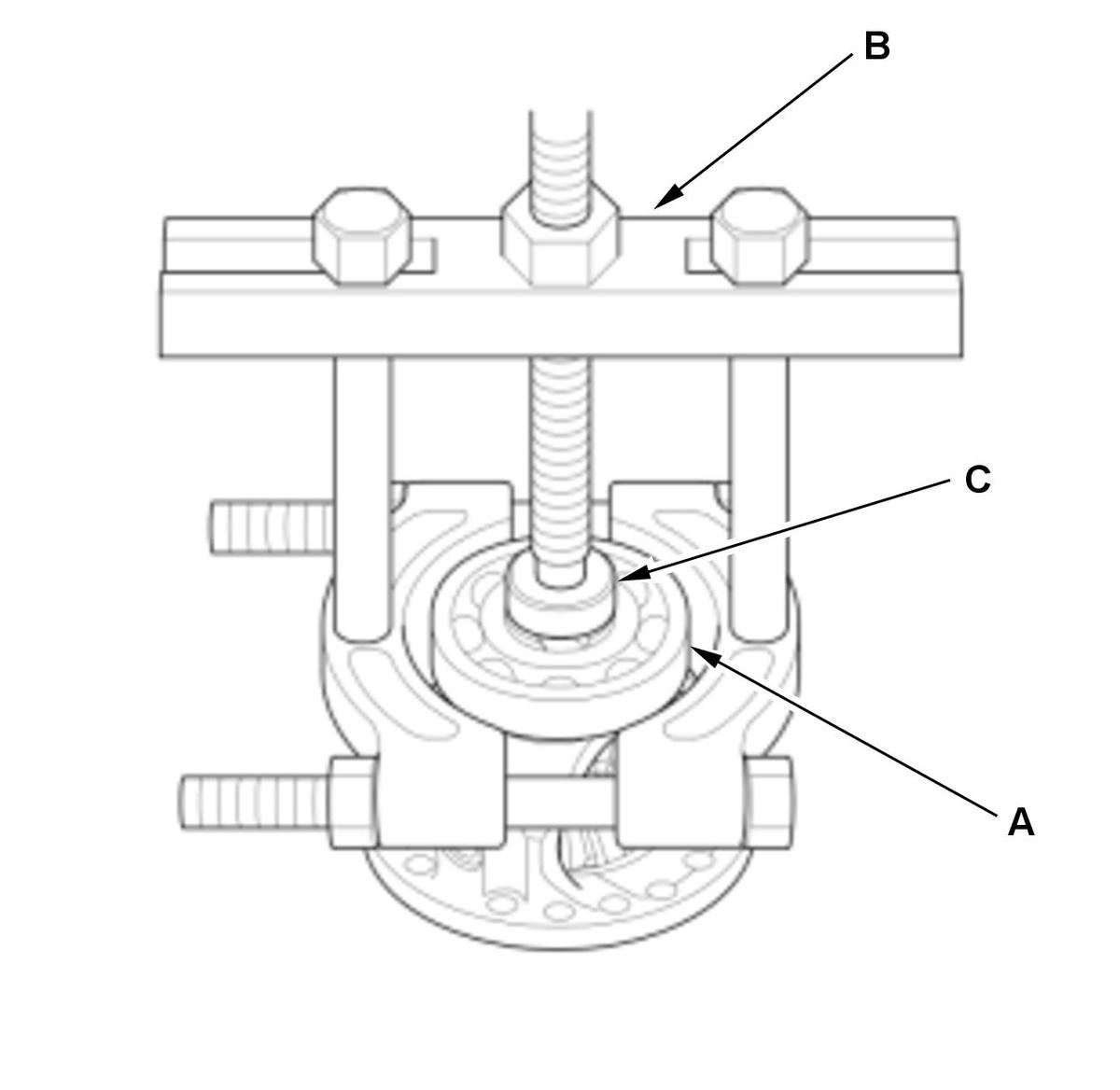

Transmission Housing Side
Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
|
1. Remove the differential carrier bearings (A) using a commercially available bearing puller (B) and a commercially available spacer (C). |
